Process States, Threads and the POSIX Threads Library

By Ryan S. · 2026, Sep 16

The previous article in this series described the Process Control Block and the context switch that saves and restores it. A context switch is triggered when a process terminates, blocks, or is preempted, and each of those events moves the process from one state to another. The first part of this article names those states, New, Ready, Running, Waiting and Zombie, and the transitions between them, then shows how the kernel keeps one list of processes per state.

The second part refines the definition of a process. A process may contain several execution contexts, each with its own registers, program counter and stack, all sharing the same code, data and heap. Such a context is a thread, described by its own Thread Control Block. The last part introduces the POSIX threads API, pthread_create(), pthread_join() and pthread_exit(), through the lecture’s example program, and ends on what that example is designed to show: two threads incrementing the same global counter do not produce the expected total, which is the problem the synchronisation lectures set out to solve.

Source and currency note. This article is based on the lecture SYE - S5 États et threads (DR, FG, MZ, HEIG-VD, 2020). The state model and the POSIX threads API are unchanged. Two points are updated in place: the lecture’s remark that Windows supports POSIX threads through its POSIX subsystem refers to the Subsystem for UNIX-based Applications, removed after Windows 8.1 and Server 2012 R2; and the explanation of the lecture’s non-deterministic counter, which the slides leave as a question, is given here in terms of the C memory model and the instruction sequence behind count++.

This article has been made with the help of Claude Code and several custom skills

States and transitions

The five states

At any moment a process is in exactly one state, recorded in its PCB. The lecture uses five:

State	Meaning
New	The process has been created by fork() and is being initialised; its PCB exists but it cannot be scheduled yet.
Ready	The process has everything it needs to run except a processor. It waits in the scheduler’s ready queue.
Running	The process is executing on a processor. On a machine with X processors, at most X processes are in this state.
Waiting	The process is blocked on an event it cannot make progress without: an I/O completion, a resource held by someone else, a waitpid() on a child that has not exited.
Zombie	The process has terminated; its memory is released, but its PCB is kept until the parent collects its exit status with waitpid().

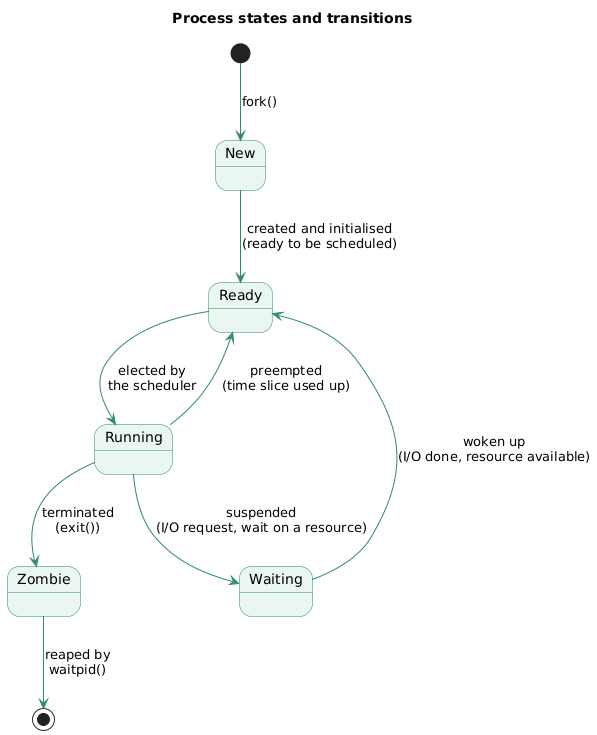

The transitions

Each arrow in the state diagram corresponds to one of the events discussed in the previous article:

• New → Ready. Initialisation is complete: the PCB is filled in, the address space is set up, and the process is placed in the ready queue.
• Ready → Running. The scheduler elects the process and the context switch loads its state into a processor.
• Running → Ready. The scheduler preempts the process, typically because its time slice is used up. The process could still run; it has only lost the processor.
• Running → Waiting. The process suspends itself by asking for something that is not available: it issues a read() that has to reach a disk, waits on a lock, or calls waitpid() on a live child. The kernel marks it as blocked and schedules another process.
• Waiting → Ready. The event the process was waiting for occurs: the I/O completes, the resource is released, the child exits. The kernel wakes the process by moving it back to the ready queue. It does not run immediately; it competes with the other ready processes.
• Running → Zombie. The process calls exit(), or returns from main(), or is killed. Its status is stored in its PCB and its parent is notified.

Two transitions are absent from the diagram, and their absence says as much as the arrows. A process never goes from Waiting straight to Running: being woken only makes it eligible, and the scheduler still has to pick it. And a process never goes from Ready to Waiting: only a running process can issue the request that blocks it.

One list per state

The lecture’s second slide on the subject shows how the kernel organises processes by state: for each state, a linked list of PCBs. New processes P0 to PN sit in one list, ready processes PN+1 to PM in another, and so on. The Running list is special: it has one entry per processor, so on a machine with X CPUs it holds PM+1 on CPU#1, PM+2 on CPU#2, up to PM+X on CPU#X. Every other list can be arbitrarily long.

New      : P0 -> P1 -> ... -> PN
Ready    : PN+1 -> PN+2 -> ... -> PM          (the run queue)
Running  : PM+1 (CPU#1), PM+2 (CPU#2), ..., PM+X (CPU#X)
Waiting  : PX+1 -> PX+2 -> ... -> PY          (one per event in practice)
Zombie   : PY+1 -> PY+2 -> ... -> PZ

The state transitions above are then list operations: preemption unlinks a PCB from a Running slot and appends it to Ready; blocking moves it from Running to Waiting; a wake-up moves it from Waiting to Ready.

In a real kernel the Waiting list is not one list but many, one wait queue per event or resource, so that an I/O completion wakes exactly the processes waiting on that device rather than scanning every blocked process.

Linux exposes the state of each process in the State field of /proc/<pid>/status and in the STAT column of ps: R for running or runnable (the lecture’s Ready and Running), S and D for the two flavours of Waiting (interruptible and uninterruptible sleep), Z for zombie.

Definition of a thread

One process, several execution contexts

The earlier articles defined a process as an execution context plus a memory context. The lecture now relaxes the first half: a process contains one or more execution contexts, and each such context is called a thread. The lecture’s Process Explorer screenshot shows a chrome.exe process with several threads, each with its own thread ID, its own state, its own CPU time and its own stack of return addresses, all inside one process.

Two rules follow:

• A thread is created from another thread. There is no thread without a creator, except the first one.
• Every process has at least one thread, the main thread (T0), which the kernel starts once the binary image has been loaded and which runs main(). All the other threads of the process descend from it.

The lecture’s figure shows a process P0 with one thread T0, and a process P1 with five threads T0 to T4. The threads of P1 are execution contexts of the same program: they run its code, read and write its data, and allocate from its heap.

What a thread owns and what it shares

The distinction between execution context and memory context determines what is per-thread and what is per-process:

Per thread (execution context)	Per process (memory context and resources)
Program counter	Code
Data registers	Data and BSS (global and static variables)
Stack pointer and its own stack	Heap
State (ready, running, waiting)	Open file descriptors
Priority	Address space, PID, parent, children, exit code

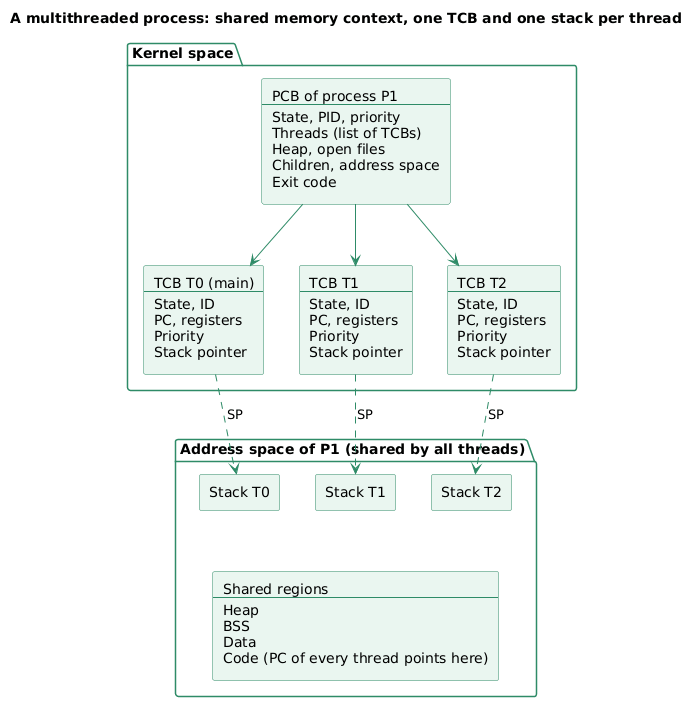

The memory layout of a multithreaded process therefore contains several stacks, one per thread, and one copy of everything else. The lecture’s figure places Stack T0, Stack T1, …, Stack Tn at the top of the address space, then the free region, then the heap, BSS, data and code shared by all of them.

The per-thread stack is what makes a thread’s function calls independent of the other threads’: each thread has its own frames, its own local variables and its own return addresses. The shared heap, data and BSS are what make threads useful and dangerous at the same time. A pointer to a heap block or a global variable is valid in every thread, so threads exchange data at the cost of a memory write; but nothing prevents two threads from writing the same location at the same time, which is the subject of the last section.

The Thread Control Block

Just as a process is described by its PCB, a thread is described by a Thread Control Block (TCB), the thread’s identity card. The lecture lists its contents:

• the instruction pointer (saved program counter);
• the data registers;
• the stack pointer;
• a state;
• a priority.

These are exactly the fields that the previous article listed under “execution context” in the PCB. In a multithreaded kernel they move out of the PCB into one TCB per thread, and the PCB keeps a list of its threads. The remaining PCB fields, the heap, the open files, the children, the address space and the exit code, stay in the PCB because they belong to the process as a whole.

A context switch between two threads of the same process saves and restores TCBs but does not have to reconfigure the MMU, since the address space does not change; this is why switching between threads is cheaper than switching between processes.

On Linux the distinction is flattened: the kernel schedules tasks, each described by a task_struct, and a “process” is a group of tasks sharing the same mm_struct, files_struct and thread-group ID. What the lecture calls the TCB is the per-task part of task_struct; what it calls the PCB is the part shared through pointers.

Hardware threads

The lecture’s slide carries a Pentium 4 badge with the Hyper-Threading logo, a reminder that the word thread is also used for a hardware feature. A hyper-threaded core presents itself to the operating system as two logical processors, each with its own register set, sharing the core’s execution units and caches. To the scheduler these are two CPUs, so two software threads can be in the Running state on one physical core.

Hardware threads are a way of filling execution units that a single instruction stream leaves idle; software threads are the execution contexts the operating system schedules. The two meet only in the sense that the scheduler counts logical processors, not cores, when it fills the Running list.

The POSIX threads library

POSIX and IEEE 1003.1c

POSIX, the Portable Operating System Interface, is the family of IEEE standards that defines a common programming interface for UNIX-like systems; the lecture glosses the final X as uniX, linuX, macosX. Its threads part, originally published as IEEE Std 1003.1c-1995 and since merged into the base specification, defines the API known as pthreads. It covers three areas, which the lecture lists:

• creation and termination of threads;
• synchronisation between threads: join, mutexes, condition variables;
• concurrent access to shared data, through the mutex and read-write lock primitives that solve the problem shown in the last section.

The API is implemented on Linux by glibc (the NPTL implementation, on top of clone()), on macOS and the BSDs natively, and on Windows historically through the POSIX subsystem the lecture mentions. That subsystem, later called the Subsystem for UNIX-based Applications, was dropped after Windows 8.1 and Server 2012 R2; a Windows program that needs pthreads today uses a compatibility library such as pthreads-win32, the Windows Subsystem for Linux, or the native Win32 thread API.

Creating a thread

A thread is created with pthread_create():

#include <pthread.h>

int pthread_create(pthread_t *thread, const pthread_attr_t *attr,
                   void *(*start_routine)(void *), void *arg);

Its four parameters are the thread’s identifier, its attributes, its code and its argument:

• thread receives the identifier of the new thread, of type pthread_t, which is what the creator later passes to pthread_join().
• attr points to attributes (stack size, detached state, scheduling policy); NULL selects the defaults.
• start_routine is the function the new thread executes. Its prototype is fixed: it takes one void * and returns one void *. This is the threaded function.
• arg is the single argument passed to start_routine. Anything more elaborate than one pointer is passed by pointing at a structure.

The function returns 0 on success and an error number on failure. Unlike most system calls it does not set errno; the error code is the return value itself. The new thread starts executing start_routine(arg) immediately and concurrently with its creator; nothing in the API says which of the two runs first.

Waiting for a thread and terminating one

pthread_join() is the thread-level counterpart of waitpid():

int pthread_join(pthread_t thread, void **retval);

The calling thread blocks until thread terminates, and the value that thread returned is stored through retval if it is not NULL. Joining also releases the terminated thread’s resources, exactly as waitpid() releases a zombie’s PCB; a thread that is never joined (and was not created detached) keeps its TCB and stack allocated until the process exits.

A thread terminates in one of two ways. It can return from its start routine, which the lecture notes is the normal case when there is no particular value to hand back; the return value of the function becomes the value delivered by pthread_join(). Or it can call pthread_exit() from any depth of its call stack:

void pthread_exit(void *retval);

pthread_exit() ends the calling thread only. The process continues as long as other threads are running; and conversely, exit() called by any thread terminates the whole process, including threads that are still in the middle of their work. In the main thread, returning from main() calls exit() and therefore kills the other threads, which is why a main() that spawns workers must join them, or call pthread_exit() itself, before returning.

Running threads

The example program

The lecture’s example creates a thread that prints a greeting and increments a global counter one hundred thousand times. In its first version, main() creates one thread, joins it, and prints the counter. The threaded function and the creation call are the two parts to look at:

#include <string.h>
#include <pthread.h>
#include <stdio.h>

int count = 0;

void *printHello(void *args) {
  char *th_name;
  int i;

  th_name = (char *) args;

  printf("Hello! It's me, I am thread %s.\n", th_name);

  for (i = 0; i < 100000; i++)
    count++;

  return NULL;
}

printHello() has the mandatory prototype, void *(void *), and recovers its real argument, a string, by casting args back to char *. count is a global, so it lives in the process’s data segment and is visible to every thread. The function returns NULL because there is nothing to hand back.

In main(), the thread is created and joined as follows; the error path shows the return-value convention of pthread_create():

  pthread_t hello_thread;
  int ret;
  char th_name[20];

  strcpy(th_name, "Thread SYE");

  ret = pthread_create(&hello_thread, NULL, printHello, (void *) th_name);
  if (ret) {
    printf("ERROR; return code from pthread_create() is %d\n", ret);
    exit(-1);
  }

  pthread_join(hello_thread, NULL);

  printf("count = %d\n", count);
  exit(0);

th_name is a local array of main(), so it lives on the main thread’s stack. Passing its address to another thread is safe here only because main() joins the thread before returning; if main() returned first, the worker would be reading a dead stack frame.

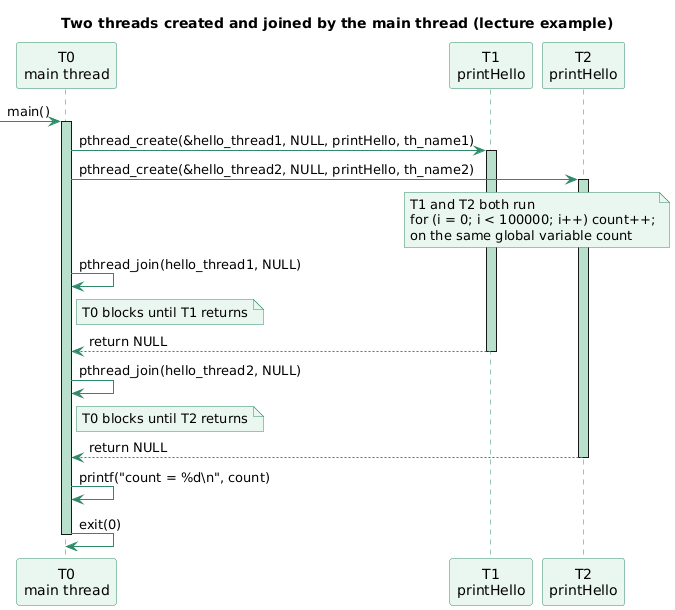

Two threads and a sequence diagram

The second version creates two threads, hello_thread1 and hello_thread2, with two names, and joins both before printing the counter. The lecture draws the resulting sequence diagram: T0 enters main(), calls pthread_create() twice, and blocks in pthread_join(T1); T1 and T2 run concurrently and each returns when its loop is done; T0 resumes after T1’s return, blocks again in pthread_join(T2) if T2 is still running, and finishes after T2’s return.

The order of the two pthread_join() calls does not matter for correctness: if T2 finishes before T1, the second join returns immediately. What matters is that both are joined before count is read.

What happens: the counter is wrong

Each thread adds one hundred thousand to count, so the expected output is count = 200000. The lecture’s terminal capture of ten successive runs shows otherwise:

$ ./app
Hello! It's me, I am thread Thread SYE 1.
Hello! It's me, I am thread Thread SYE 2.
count = 123001
$ ./app
...
count = 200000
$ ./app
...
count = 149549
$ ./app
...
count = 123501
$ ./app
...
count = 108533

Some runs print 200000; others print 123001, 149549, 123501 or 108533. The result is never larger than 200000, it varies from run to run, and it is wrong more often than not. The slide leaves the question open (“but what happens?”); the answer is the entry point of the synchronisation lectures, and it is short enough to give here.

count++ is one statement in C but three operations for the processor: load the current value of count from memory into a register, add one to the register, store the register back to memory. On ARM:

ldr   r3, [r2]        @ load  count into r3
add   r3, r3, #1      @ add   1
str   r3, [r2]        @ store r3 back to count

The two threads run this sequence concurrently, on two processors or interleaved by preemption on one. Nothing prevents the following interleaving:

Step	Thread T1	Thread T2	count in memory
1	ldr r3 ← 41		41
2		ldr r3 ← 41	41
3	add r3 = 42		41
4		add r3 = 42	41
5	str 42		42
6		str 42	42

Two increments were executed and count grew by one: the update of T1 was lost, overwritten by T2’s store of a stale value. Every time the scheduler or the hardware interleaves the two threads inside the load-add-store window, one increment disappears, which is why the total is always at most 200000 and usually below it. The runs that print 200000 are those in which the interleaving happened to fall between complete increments every time, or in which one thread ran its whole loop before the other started.

This is a data race: two threads access the same memory location without synchronisation, and at least one access is a write. In C11 and later a program containing a data race has undefined behaviour, so the compiler is even allowed to keep count in a register for the whole loop and store it once at the end, which would make the outcome worse still.

The fix is to make the read-modify-write atomic with respect to the other thread, either by protecting it with a mutex (pthread_mutex_lock() / pthread_mutex_unlock() around the increment) or by declaring count as a C11 _Atomic int so that the increment compiles to an atomic instruction. Both belong to the “concurrent access” part of the pthreads API and are the subject of the next lectures.

Conclusion

A process moves through five states. It is created in New, waits for a processor in Ready, executes in Running, blocks in Waiting when it asks for something unavailable, and ends in Zombie until its parent reaps it. Preemption returns it from Running to Ready, a wake-up from Waiting to Ready, and only the scheduler moves it into Running. The kernel maintains one list of PCBs per state, with as many Running entries as processors.

A thread is one execution context of a process: its own program counter, registers, stack and state, recorded in a Thread Control Block, sharing the process’s code, data, heap and open files. Every process starts with one thread that runs main(); the others are created from it. The POSIX threads API creates a thread with pthread_create() around a void *(void *) function, waits for it with pthread_join(), and ends it by returning from that function or calling pthread_exit().

The lecture’s closing example shows two threads incrementing one global counter and printing totals between 108533 and 200000 across runs. The cause is that count++ is a load, an add and a store, and an interleaving of two threads inside that window loses an update. Shared memory is what makes threads convenient; unsynchronised writes to it are a data race, and removing them is the subject of the lectures that follow.

Annex

Key Terms

Term	Definition
Ready	The state of a process that could run but has no processor; such processes wait in the scheduler’s run queue.
Waiting	The state of a process blocked on an event (I/O completion, resource, child exit); it leaves this state only when the event occurs, and then goes to Ready, not Running.
Preemption	The transition from Running to Ready imposed by the scheduler on a process that has used up its time slice.
Zombie	A terminated process whose PCB is retained until its parent reads its exit status.
Thread	One execution context of a process: its own program counter, registers, stack and state, sharing the process’s memory context and resources.
Main thread	The first thread of a process, started by the kernel after the binary image is loaded, which executes main().
Thread Control Block (TCB)	The kernel structure describing one thread: instruction pointer, data registers, stack pointer, state and priority. The PCB keeps a list of its TCBs.
pthreads	The POSIX threads API (IEEE 1003.1c), covering thread creation and termination, synchronisation and concurrent access.
pthread_join()	The call by which one thread blocks until another terminates and collects its return value, releasing its resources; the thread-level analogue of waitpid().
Data race	Two threads accessing the same memory location without synchronisation, at least one of them writing; the cause of the lost increments in the lecture’s counter example.

Frequently Asked Questions

Q: Why is there no transition from Waiting directly to Running?

Because the event a process waits for only makes it eligible to run again; it does not give it a processor. When the I/O completes or the resource is released, the kernel moves the process to Ready, where it competes with every other ready process. The scheduler then decides, according to its policy and priorities, which ready process gets the next free processor.

Waking a process and scheduling it are two separate decisions taken by two different parts of the kernel.

Q: How many processes can be in the Running state at once?

At most one per processor as seen by the scheduler. On a machine with X logical CPUs the Running list has X slots. With Hyper-Threading, each physical core exposes two logical processors, so a four-core hyper-threaded machine can have eight processes (or threads) Running at once.

Q: What does a thread own, and what does it share with the other threads of its process?

It owns its execution context: program counter, data registers, stack pointer and a private stack, plus a state and a priority, all recorded in its TCB.

It shares the memory context and the resources of the process: code, data and BSS, heap, open file descriptors, address space, PID and parent. A global variable or a heap block is therefore visible to every thread; a local variable of a function is on the stack of the thread executing that function.

Q: Why must the function passed to pthread_create() have the prototype void *f(void *)?

Because pthread_create() is a single library function that has to start any user function without knowing its real parameter and return types. A void * in and a void * out is the most general signature C offers: any pointer can be converted to and from void *. The caller packs its real arguments behind one pointer (a string in the lecture’s example, a structure in general) and the thread casts it back; the value returned is delivered to whoever calls pthread_join().

Q: In the lecture’s two-thread program, why is the final counter sometimes 200000 and sometimes much less, but never more?

Each thread performs one hundred thousand increments, so 200000 is the upper bound. An increment is a load, an add and a store; when the two threads interleave inside that window, both load the same value, both add one, and both store the same result, so one of the two increments is lost. Every such collision lowers the total by one and nothing can raise it.

A run prints 200000 when no collision happened, for instance because one thread finished its loop before the other started.

Q: What is the relationship between pthread_join() and waitpid()?

They play the same role one level apart. waitpid() lets a parent process block until a child process ends, retrieve its exit status and let the kernel free its PCB. pthread_join() lets a thread block until another thread of the same process ends, retrieve its return value and release its TCB and stack. In both cases an object that is terminated but not yet collected keeps its control block allocated.

Q: A worker thread is still running when main() returns. What happens to it, and how is that avoided?

Returning from main() calls exit(), which terminates the whole process and every thread in it, so the worker is killed wherever it is. To let the workers finish, main() either calls pthread_join() on each of them before returning, or calls pthread_exit() itself, which ends the main thread only and keeps the process alive until the last thread terminates.

References

• SYE - S5 États et threads, DR, FG, MZ, HEIG-VD, 2020 (source lecture)
• SO3 - Smart Object Oriented operating system, the teaching kernel used by the course
• The Open Group Base Specifications Issue 8, IEEE Std 1003.1-2024 (POSIX), including the threads interfaces originally specified in IEEE Std 1003.1c-1995
• pthreads(7) - Linux manual page
• pthread_create(3) - Linux manual page
• pthread_join(3) - Linux manual page
• pthread_exit(3) - Linux manual page
• pthread_mutex_lock(3p) - POSIX manual page
• proc_pid_status(5) - Linux manual page, the State field of a process
• Process Explorer - Sysinternals
• Andrew S. Tanenbaum, Herbert Bos, Modern Operating Systems, Pearson, 4th edition, 2014
