How Morpho Vault V1 (MetaMorpho) Works, and What Vault V2 Changes

By Ryan S. · 2026, Oct 10

Morpho is a lending protocol whose base layer, Morpho Blue, is a single contract holding isolated lending markets, each defined by a loan token, a collateral token, an oracle, an interest-rate model and a liquidation threshold. Lending directly on Blue means choosing markets one by one, so Morpho added vaults on top: a depositor gives one asset to a vault and a curator decides which markets receive it. Morpho Vault V1, known in its code as MetaMorpho, is the first generation of these vaults.

This article explains how MetaMorpho works from its source code, covering both published versions, v1.0 and v1.1, and the one behavioural difference between them that matters to depositors: what happens to bad debt. The last section compares it with Vault V2, the generation that replaces it, which a previous article, How Morpho Vault V2 Works - Adapters, Caps, Timelocks and In-Kind Redemption, describes in detail.

This article has been made with the help of Claude Code and several custom skills

Names and versions

Morpho’s naming has moved over time, and three names refer to different layers:

Morpho Blue, also called Morpho Market V1, is the lending layer: one immutable singleton contract with permissionless, isolated markets.
MetaMorpho, now called Morpho Vault V1, is the vault layer described here. A MetaMorpho vault only supplies to Morpho Blue markets.
Morpho Vault V2 is the next vault generation, which can allocate to Blue markets, to V1 vaults and to other protocols through adapters.

Vault V1 exists in two versions, each in its own repository with its own factory:

Version	Contract	Factory	Difference
v1.0	`MetaMorpho`	`MetaMorphoFactory`	The original release.
v1.1	`MetaMorphoV1_1`	`MetaMorphoV1_1Factory`	A fork of v1.0 with four changes, listed in a dedicated section below.

Both are immutable once deployed: the factory creates a new contract per vault with no proxy, so a vault keeps the version it was created with. A curator who wants v1.1 behaviour deploys a new vault.

Architecture

A MetaMorpho vault is an ERC-4626 vault for a single loan asset. It inherits OpenZeppelin’s ERC4626, ERC20Permit (the ERC-2612 extension), Ownable2Step and Multicall, and holds no assets of its own between transactions: every deposit is supplied to Blue in the same call, and every withdrawal is pulled from Blue in the same call.

flowchart TB
  U["Depositor<br/>holds vault shares"] -->|"deposit / withdraw"| V["MetaMorpho vault<br/>one loan asset, at most 30 markets"]
  V -->|"supply, following the supply queue"| B["Morpho Blue singleton"]
  V -->|"withdraw, following the withdraw queue"| B
  B --> M1["Market A<br/>collateral X"]
  B --> M2["Market B<br/>collateral Y"]
  B --> M3["Idle market<br/>no collateral, no oracle"]
  O["Owner, curator, allocators, guardian"] -.->|"caps, queues, reallocate"| V

The vault’s state is small. For each Blue market id it keeps a MarketConfig:

struct MarketConfig {
    uint184 cap;        // maximum supply, in units of the loan asset
    bool enabled;       // the market is in the withdraw queue
    uint64 removableAt; // set when a forced removal is pending
}

Around it, the vault keeps two ordered lists of market ids, a single timelock value, three pending-value slots (cap, timelock, guardian) and the accounting variable lastTotalAssets, plus lostAssets in v1.1.

The supply queue is the order in which a deposit is spread across markets. It can only contain markets with a non-zero cap, and if it is empty, deposits are disabled.
The withdraw queue is the order in which a withdrawal pulls liquidity. It contains every enabled market, which means every market with a non-zero cap or a remaining supply position, without duplicates. It is also the list the vault iterates to compute its total assets.

Both queues are limited to 30 markets (MAX_QUEUE_LENGTH).

Roles

MetaMorpho has four roles, organised as a hierarchy: the owner can do everything the curator and the guardian can do, and the curator can do everything an allocator can do.

Role	Holders	Set by	Powers
Owner	One, two-step transfer (`Ownable2Step`)	Previous owner	Set the curator, allocators and skim recipient; set the performance fee (up to 50 %) and its recipient; raise the timelock; submit a lower timelock or a new guardian; in v1.1, rename the vault
Curator	One	Owner	Lower a supply cap immediately; submit a higher cap; submit a forced market removal; revoke pending caps and removals
Allocator	Several	Owner	Set the supply queue; reorder or shorten the withdraw queue; `reallocate` funds between enabled markets
Guardian	One, optional	Owner, timelocked once a guardian exists	Revoke a pending timelock, guardian, cap or market removal

Two properties of this table matter to depositors. First, the owner’s own actions are mostly immediate: appointing a curator or an allocator, and changing the fee, take effect in the same transaction. Second, the guardian’s only power is to cancel. It cannot move funds or lower caps; its purpose is to stop a change submitted by the owner or curator before the timelock expires.

The timelock

A MetaMorpho vault has one timelock that applies to all protected actions. It is bounded between 1 day and 2 weeks. In v1.0 the bound also applies at deployment; in v1.1 a vault can be deployed with a timelock of zero to simplify set-up, and any later change must fall within the bounds.

The protected actions are those that could increase risk or remove a check on the owner:

Action	Who submits	Timelocked?	Who can revoke
Increase a market’s supply cap	Curator or owner	Yes	Curator, guardian, owner
Decrease a supply cap	Curator or owner	No
Force-remove a market	Curator or owner	Yes	Curator, guardian, owner
Decrease the timelock	Owner	Yes	Guardian, owner
Increase the timelock	Owner	No
Change the guardian	Owner	Yes, if a guardian is already set	Guardian, owner
Set the fee, curator or allocators	Owner	No

A pending value is stored with its validAt time. Once that time has passed, anyone can call the matching accept function (acceptCap, acceptTimelock, acceptGuardian), so a change does not depend on its submitter coming back to execute it. A submitter can have only one pending value per slot at a time: a second submitCap for the same market reverts with AlreadyPending until the first one is accepted or revoked.

The design is simpler than Vault V2’s, which has one timelock per function. It also means that all protected actions share one delay: a curator cannot give depositors two weeks’ notice of cap increases while keeping a shorter delay for something else.

Market lifecycle

A Blue market goes through the following states inside a vault:

stateDiagram-v2
  [*] --> Unknown
  Unknown --> PendingCap: submitCap (higher cap)
  PendingCap --> Unknown: revokePendingCap
  PendingCap --> Enabled: acceptCap after the timelock
  Enabled --> Enabled: submitCap (lower cap, immediate)
  Enabled --> ZeroCap: cap lowered to 0
  ZeroCap --> PendingRemoval: submitMarketRemoval
  PendingRemoval --> ZeroCap: revokePendingMarketRemoval
  ZeroCap --> Removed: updateWithdrawQueue, no supply left
  PendingRemoval --> Removed: updateWithdrawQueue after the timelock, supply written off
  Removed --> [*]

Enabling a market is the timelocked part. When acceptCap raises the cap of a market that is not yet enabled, the vault appends it to the withdraw queue, marks it enabled, and adds any supply it already holds there to lastTotalAssets without charging a fee. An allocator then puts it in the supply queue if deposits should go there.

Removing a market has two paths:

Normal removal. The curator lowers the cap to zero, which takes effect at once. An allocator moves the vault’s supply out with reallocate, then calls updateWithdrawQueue with a list of indexes that omits the market. The vault checks that the omitted market has a zero cap, no pending cap and no supply left, and deletes its configuration.
Forced removal. If the market cannot be emptied, for instance because it keeps reverting or has no liquidity, the curator submits submitMarketRemoval. After the timelock, updateWithdrawQueue can drop the market even though the vault still holds supply there. That supply stops counting in the vault’s total assets.

Forced removal exists because a reverting market blocks the whole vault: totalAssets() iterates the withdraw queue and calls Blue for every market in it, so one market that reverts makes every deposit and withdrawal revert too.

Deposits, withdrawals and reallocation

Deposits and withdrawals follow the queues, one market at a time.

flowchart TB
  subgraph Deposit
    D1["Accrue interest and fee"] --> D2["Mint shares"]
    D2 --> D3["For each market in the supply queue:<br/>supply min(cap - current supply, remaining)"]
    D3 --> D4{"Remaining = 0?"}
    D4 -->|"no, queue exhausted"| D5["Revert AllCapsReached"]
    D4 -->|"yes"| D6["Done"]
  end
  subgraph Withdraw
    W1["Accrue interest and fee"] --> W2["For each market in the withdraw queue:<br/>withdraw min(vault supply, market liquidity, remaining)"]
    W2 --> W3{"Remaining = 0?"}
    W3 -->|"no, queue exhausted"| W4["Revert NotEnoughLiquidity"]
    W3 -->|"yes"| W5["Burn shares, transfer assets"]
  end

Each Blue call inside the loops is wrapped in try/catch, so a market that reverts on supply or withdraw is skipped rather than blocking the operation. That does not cover totalAssets(), which is why forced removal still exists.

A depositor’s exit therefore depends on the liquidity of the markets in the withdraw queue, in the order the allocators chose. If every market is fully borrowed, a withdrawal reverts and the depositor waits until borrowers repay, interest rates attract new supply, or the allocators move funds.

Allocators rebalance with reallocate, which takes a list of (marketParams, assets) targets and processes them in order:

If the target is below the current supply, the vault withdraws the difference. A target of zero withdraws all supply shares, which also clears any shares a third party donated to the vault in that market.
If the target is above the current supply, the vault supplies the difference, after checking it stays within the market’s cap. A target of type(uint256).max supplies whatever has been withdrawn so far and not yet resupplied.
At the end, the total withdrawn must equal the total supplied, or the call reverts with InconsistentReallocation. Reallocation moves funds between markets and never changes the vault’s total.

Caps are checked when the vault supplies, on deposit and on reallocation. Interest and donations can push a market’s supply above its cap without any revert, and the README says so explicitly.

Idle supply

Because the vault holds nothing itself, keeping liquidity available means supplying to a Blue market where nobody can borrow. The README recommends a canonical “idle” market for the vault’s asset with address(0) as collateral, oracle and interest-rate model, and an LLTV of zero. Funds there earn nothing but can always be withdrawn. A cap of type(uint184).max on that market at the end of the supply queue guarantees that deposits never revert with AllCapsReached.

Accounting

Total assets and the performance fee

The vault values itself by summing its supply in every enabled market, using Blue’s expectedSupplyAssets, which includes interest accrued since the market’s last update:

[\begin{aligned} R = \sum_{m \in \text{withdrawQueue}} \text{expectedSupplyAssets}(m) \end{aligned}]

At every deposit, withdrawal, or fee change, the vault compares the new total with lastTotalAssets, the total recorded at the previous interaction, and takes a performance fee \(f \le 50\,\%\) on the difference:

[\begin{aligned} I &= A^{\text{new}} - A^{\text{last}}
F &= I \cdot f
\text{fee shares} &= F \cdot \frac{S + 10^{\delta}}{A^{\text{new}} - F + 1} \end{aligned}]

The fee shares are minted to feeRecipient, which redeems them like any other holder. There is no management fee. The fee can be changed by the owner at any time, without timelock, and the vault accrues the old fee first so the change applies only to future interest.

Conversions use OpenZeppelin’s virtual-share formula, with a decimals offset \(\delta = \max(0, 18 - d)\) where \(d\) is the asset’s decimals:

[\begin{aligned} \text{shares} = a \cdot \frac{S + 10^{\delta}}{A + 1}, \qquad \text{assets} = s \cdot \frac{A + 1}{S + 10^{\delta}} \end{aligned}]

Here \(S\) is the share supply including pending fee shares. Rounding always favours the vault. For an 18-decimal asset the offset is zero and the protection against the ERC-4626 inflation attack is weak; the NatSpec on deposit says so and recommends that deployers make a non-trivial initial deposit.

Unlike Vault V2, MetaMorpho implements the ERC-4626 max* functions with real values. maxDeposit sums the remaining room under each cap in the supply queue, and maxWithdraw simulates the withdraw loop against current market liquidity. Both can be slightly off: maxDeposit overestimates if the supply queue contains the same market twice, which setSupplyQueue does not prevent.

Bad debt: v1.0 realises it, v1.1 does not

When a Blue market liquidates a borrower whose collateral is worth less than the debt, Blue writes the shortfall off against the market’s suppliers. The vault’s expectedSupplyAssets in that market drops, so \(R\) drops. The two versions handle that drop differently.

v1.0 takes the new total as it is. The next interaction records the lower value in lastTotalAssets, no fee is charged on a negative difference, and the share price falls for every holder at once. Each depositor bears the loss in proportion to their shares.

v1.1 adds a variable, lostAssets, defined as the assets missing because of bad debt or a forced market removal. With \(A^{\text{last}}\) the recorded total and \(L\) the current lostAssets:

[\begin{aligned} L^{\text{new}} &= \begin{cases} A^{\text{last}} - R & \text{if } R \lt A^{\text{last}} - L \ L & \text{otherwise} \end{cases}
A^{\text{new}} &= R + L^{\text{new}} \end{aligned}]

The reported total therefore never drops because of a loss: the missing assets are added back as lostAssets, and the share price stays where it was. lostAssets only grows. When the markets recover through interest, \(R\) increases and so does the total, so later interest is distributed and charged a fee as usual, but lostAssets itself is not paid back by it.

The consequence is a change in who bears the loss. Shares in a v1.1 vault are valued against assets that partly do not exist. Depositors who withdraw after the loss are paid at the unchanged price, as long as the markets have liquidity, and the shortfall stays with the depositors who remain. The interface documents one way to close the gap: someone supplies the missing amount to the vault on behalf of address(1). The shares minted to that address can never be redeemed, so the supplied assets back the other holders’ shares.

A forced removal is treated the same way in v1.1. Dropping a market from the withdraw queue removes its supply from \(R\), and the difference is recorded in lostAssets rather than lowering the share price.

v1.0 and v1.1 compared

The v1.1 README lists four changes from v1.0, and the source diff confirms them:

Change	v1.0	v1.1
Bad debt and forced removal	Realised: the share price drops	Not realised: tracked in `lostAssets`, share price unchanged
Initial timelock	Between 1 day and 2 weeks	0, or between 1 day and 2 weeks; later changes keep the bounds
Name and symbol	Fixed at deployment	Owner can change them (`setName`, `setSymbol`)
`reallocate` on a market that is not enabled	Withdrawal side reverts; supply side reverts only on a zero cap	Reverts for any market that is not enabled

The renaming has a side effect the source comments acknowledge: the EIP-712 domain used by permit is built from an empty name, so v1.1 deviates slightly from ERC-2612. The compiler version also moved from 0.8.21 to 0.8.26.

Rewards

Blue markets can carry external reward programs, and rewards earned by the vault’s supply are paid to the vault’s address. MetaMorpho has no logic to distribute them. Instead, the owner sets a skimRecipient, and anyone can call skim(token) to send the vault’s entire balance of that token to it. The README recommends using a Universal Rewards Distributor as the recipient, from which the vault’s managers publish a Merkle root of what each depositor can claim. Since the vault never holds its own asset between transactions, skimming does not touch depositors’ funds.

What Vault V2 changes

Vault V2 keeps the purpose of MetaMorpho, a curated and non-custodial ERC-4626 vault, and changes almost every mechanism. The table compares MetaMorpho v1.1 with Vault V2 at the commits pinned in the references.

Area	Vault V1 (MetaMorpho)	Vault V2
Where funds go	Morpho Blue markets only, up to 30	Any protocol with an adapter: Blue markets, V1 vaults, Midnight
Idle funds	None; an “idle” Blue market plays that role	The vault holds an idle balance itself
Allocation on deposit	Spread along the supply queue	Sent to one liquidity adapter, or kept idle
Liquidity on withdrawal	Pulled along the withdraw queue	Idle balance first, then the liquidity adapter
Risk limits	One supply cap per market	Absolute and relative caps per id: adapter, collateral token, market
Timelock	One value, 1 day to 2 weeks, for all protected actions	One value per function, no bounds, plus permanent `abdicate`
Who sets fees, allocators	Owner, immediately	Curator, timelocked
Fees	Performance fee up to 50 %	Performance fee up to 50 % and management fee up to 5 % per year
Emergency role	Guardian: can only revoke pending changes	Sentinels: revoke, lower caps, deallocate funds
Ownership transfer	Two-step	One-step; roles do not need to be accepted
Bad debt	Realised (v1.0) or kept in `lostAssets` (v1.1)	Realised at the next interaction
Interest smoothing	None	`maxRate` caps the growth of the share price
Exit from illiquid markets	Wait for liquidity or allocator action	In-kind redemption with `forceDeallocate`, penalty up to 2 %
Access control	None	Four optional gates on shares and assets
ERC-4626 `max*` functions	Computed from caps and liquidity	Always return 0

The changes group into four themes.

Generalisation through adapters. V1 is written against Blue: totalAssets() calls Blue for each market, and reallocate calls supply and withdraw on Blue directly. V2 replaces this with adapters that report a value and a list of ids, so the vault never calls a lending protocol itself. One adapter, MorphoVaultV1Adapter, deposits into a V1 vault, so a V2 vault can hold existing MetaMorpho positions while it moves to direct market positions. How that adapter works, and the conditions under which it is safe, are described in Morpho Vault V2 Adapters - How a Vault Allocates, and Why It Wraps a Vault V1.

Finer risk limits. A V1 cap limits one market. Two markets with the same collateral and different oracles or LLTVs have separate caps, and nothing limits the vault’s total exposure to that collateral. V2’s collateral id covers every market that accepts the collateral, and relative caps limit an exposure as a share of the vault rather than in absolute terms.

Governance that depositors can verify. In V1 the owner holds direct powers: it appoints allocators and sets the fee immediately, and every protected action shares one delay. In V2 the owner only appoints the curator and sentinels; fee and allocator changes go through the curator’s timelock, each function has its own delay, and abdicate lets a curator give up a power for good. The V2 emergency role can also act, by lowering caps and deallocating, where the V1 guardian can only veto.

Exits and losses. In V1 an exit depends on market liquidity and on the allocators. V2 adds forceDeallocate, which lets any depositor exit into the underlying market when no liquidity is available. On losses, V2 returns to v1.0’s behaviour and realises bad debt at the next interaction, rather than carrying it in a lostAssets balance as v1.1 does. V2 adds maxRate, which lets a curator hold back part of the interest as a buffer against future losses.

Conclusion

MetaMorpho is an immutable ERC-4626 vault that supplies one asset to at most 30 Morpho Blue markets, under the control of an owner, a curator, allocators and an optional guardian.

Two queues drive the money. Deposits follow the supply queue up to each market’s cap; withdrawals follow the withdraw queue up to each market’s liquidity; allocators rebalance with reallocate, which cannot change the vault’s total.
One timelock protects depositors. Cap increases, forced removals, timelock decreases and guardian changes wait between 1 day and 2 weeks, and anyone can execute them afterwards. Fee, curator and allocator changes are immediate.
The guardian can only cancel. It revokes pending changes and has no power over funds.
The two versions differ on bad debt. v1.0 lowers the share price at once; v1.1 records the shortfall in lostAssets, keeps the share price, and leaves the loss with the depositors who stay.
Vault V2 replaces the Blue-specific design with adapters, id-based caps, per-function timelocks, sentinels with real powers, in-kind redemption and gates, and realises losses at the next interaction.

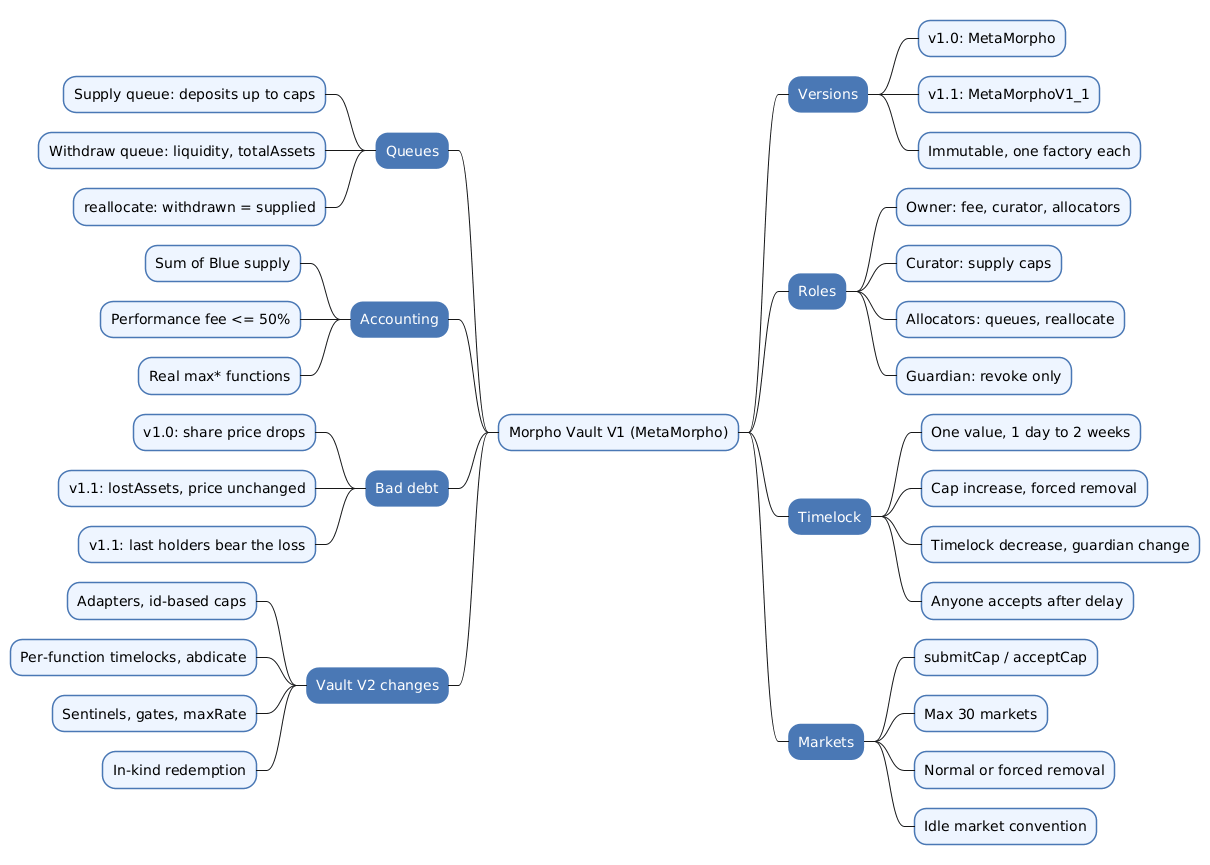

Mindmap of Morpho Vault V1 (MetaMorpho) covering the versions, roles, the single timelock, the market lifecycle, the supply and withdraw queues, accounting and fees, bad debt handling in v1.0 and v1.1, and the differences with Vault V2

Annex

Key Terms

Term	Definition
ERC-4626	The Ethereum standard for tokenized vaults, defining deposit, mint, withdraw and redeem against one underlying asset and the conversions between assets and shares.
Share price	The amount of the underlying asset one vault share is worth, equal to total assets divided by total shares with virtual amounts added.
Bad debt	The part of a loan that the collateral cannot cover after liquidation, written off by Morpho Blue against the market’s suppliers.
Morpho Blue	Morpho’s lending layer, also called Morpho Market V1: one immutable singleton contract holding isolated markets.
Market	A Blue lending pool defined by a loan token, a collateral token, an oracle, an interest-rate model and a liquidation LTV (LLTV), identified by the hash of these parameters.
MetaMorpho	The code name of Morpho Vault V1, an ERC-4626 vault that supplies one asset to several Blue markets.
Owner	The vault’s top role, transferred in two steps; it appoints the other roles, sets the fee and controls the timelock.
Curator	The role that manages risk by setting supply caps and submitting forced market removals.
Allocator	A role that orders the queues and moves funds between enabled markets with `reallocate`.
Guardian	An optional role that can only revoke pending changes: caps, market removals, timelock and guardian changes.
Timelock	The single delay, between 1 day and 2 weeks, between the submission of a protected change and the moment anyone can accept it.
Supply cap	The maximum the vault may supply to one market, checked when the vault supplies; interest and donations can exceed it.
Supply queue	The ordered list of markets a deposit is spread across, each up to its cap.
Withdraw queue	The ordered list of all enabled markets, used to pull liquidity on withdrawal and to compute total assets.
Enabled market	A market in the withdraw queue, either with a non-zero cap or with remaining supply from the vault.
Reallocate	The allocator function that withdraws from some markets and supplies to others, requiring the two totals to match.
Forced market removal	A timelocked procedure that lets allocators drop a market from the withdraw queue while the vault still holds supply there, writing that supply off.
Idle market	A Blue market with no collateral, no oracle and no interest-rate model, used to keep liquidity that cannot be borrowed.
lastTotalAssets	The total assets recorded at the previous interaction, used to measure interest and the performance fee.
lostAssets	In v1.1, the cumulative amount lost to bad debt or forced removal, added back to total assets so the share price does not drop.
Skim recipient	The address, set by the owner, to which anyone can send the vault’s balance of any token, used to forward rewards.

Invariants

Invariant	Enforced by	Breaks if
A supply cap increase takes effect no earlier than the timelock after its submission.	`submitCap` storing a pending cap, `acceptCap` behind `afterTimelock`.	The timelock is 0, which v1.1 allows at deployment.
The timelock stays between 1 day and 2 weeks after deployment.	`_checkTimelockBounds` in `submitTimelock`.	Never at these commits; only the v1.1 initial value may be 0.
A market cannot be dropped from the withdraw queue while the vault supplies to it, unless a forced removal has passed its timelock.	The checks in `updateWithdrawQueue`.	The curator submits a forced removal and nobody revokes it.
`reallocate` never changes the vault’s total supplied.	`totalWithdrawn == totalSupplied` at the end of the call.	A Blue market charges a fee on supply or withdraw, which Blue does not.
The vault never supplies above a market’s cap.	The cap checks in `_supplyMorpho` and `reallocate`.	Interest or donations raise the position; the cap is not rechecked then.
In v1.1, total assets never decrease because of a loss.	`lostAssets` growing by the shortfall in `_accruedFeeAndAssets`.	Withdrawals lower total assets normally; only losses are absorbed.
A non-zero fee always has a non-zero recipient.	The checks in `setFee` and `setFeeRecipient`.	Never at these commits.

Integration Notes

Behaviour	What an integrator should do
In v1.1, the share price does not drop on bad debt; the loss stays with the last holders.	Read `lostAssets` and compare it to `totalAssets()`. A non-zero value means shares are backed by fewer assets than their price implies.
A market that reverts makes `totalAssets()` revert, and with it deposits, withdrawals and previews.	Treat a reverting market in the withdraw queue as a full outage until the curator completes a forced removal.
`maxDeposit` can overestimate if the supply queue lists a market twice.	Simulate the deposit, or read the queue and caps yourself, rather than relying on the value.
`withdraw` reverts with `NotEnoughLiquidity` when the withdraw queue’s markets are fully borrowed.	Use `maxWithdraw`, which simulates the withdraw loop, and handle the revert.
The owner can change the fee and appoint allocators without delay.	Monitor `SetFee`, `SetIsAllocator` and `SetCurator` events; the timelock does not cover them.
v1.1 builds its EIP-712 domain from an empty name.	Sign permits for v1.1 vaults with the domain the contract uses, not the vault’s displayed name.
A vault cannot be upgraded from v1.0 to v1.1.	Check the factory that deployed a vault (`isMetaMorpho` on each factory) to know which version and which bad-debt behaviour applies.

Frequently Asked Questions

Q: What is the difference between the supply queue and the withdraw queue?

The supply queue lists the markets that receive deposits, in order, each up to its cap; it can be a subset of the enabled markets and can be empty, which disables deposits. The withdraw queue lists every enabled market, in the order liquidity is pulled on withdrawal. It is also the list the vault iterates to compute totalAssets(), which is why a market can only leave it once the vault no longer holds supply there or a forced removal has passed its timelock.

Q: Which changes are timelocked in a MetaMorpho vault, and which are not?

Timelocked: increasing a supply cap, forcing the removal of a market, lowering the timelock, and replacing an existing guardian.

Immediate: lowering a cap, raising the timelock, setting the first guardian, and all owner settings over people and money, namely the curator, the allocators, the fee, the fee recipient and the skim recipient. A depositor is therefore protected by the timelock against new markets and larger caps, but not against a fee change.

Q: A market held by a v1.1 vault suffers bad debt equal to 5 % of the vault’s assets. What happens to the share price, and who bears the loss?

The share price does not change. At the next interaction, the vault sees its real assets drop and adds the difference to lostAssets, so totalAssets() stays at its previous value. Depositors who withdraw afterwards are paid at the old price as long as the markets have liquidity. The remaining depositors hold shares backed by fewer real assets, and the last ones to leave bear the 5 %. In a v1.0 vault, the share price would drop by 5 % at the next interaction, and every holder would bear the loss in proportion to their shares.

Q: Why does MetaMorpho need a forced market removal, when the curator can already set a cap to zero?

A zero cap only stops new supply. The market stays in the withdraw queue as long as the vault holds supply there, and totalAssets() keeps calling Blue for it. If that market reverts, every deposit and withdrawal reverts with it, and if it has no liquidity, the supply cannot be moved out. Forced removal lets allocators drop the market from the queue after the timelock even with supply still in it. The supply is written off: the share price drops in v1.0, and the amount goes into lostAssets in v1.1.

Q: An allocator calls reallocate with targets of 0 for market A and type(uint256).max for market B. What happens?

For market A, a target of 0 makes the vault withdraw all its supply shares from A, including any shares donated by third parties. For market B, the special value type(uint256).max makes the vault supply everything withdrawn so far in the call and not yet resupplied, which is the amount just taken from A. The vault checks that B’s new supply stays within its cap, then checks that the totals withdrawn and supplied are equal. If A’s liquidity is insufficient, the Blue withdrawal reverts and the whole reallocation reverts.

Q: What are the three main differences between the V1 guardian and the V2 sentinel?

Scope. The V1 guardian can only revoke pending changes. A V2 sentinel can also lower caps and deallocate funds to the vault’s idle balance.
Number. V1 has one guardian. V2 can have several sentinels.
Appointment. In V1, replacing an existing guardian is itself timelocked, and the current guardian can veto its own replacement. In V2, the owner sets sentinels immediately.

Q: Why can a V2 vault hold a position in a V1 vault, and what does it gain from it?

Vault V2 does not call lending protocols directly; it allocates through adapters. MorphoVaultV1Adapter deposits into a MetaMorpho vault and reports the value of that position as the adapter’s realAssets. A curator can therefore create a V2 vault whose first allocation is an existing V1 vault, giving its depositors V2’s gates, sentinels, in-kind redemption and per-function timelocks, while the funds remain in the V1 vault’s markets until the curator moves them to direct market positions.

References

Analyzed source

morpho-org/metamorpho (v1.0) analyzed at commit ded84e59668155b34d3c24906c4f7461c12828af (main, 534 commits after v1.0.0), 2026-10-10
morpho-org/metamorpho-v1.1 analyzed at commit 3b17547ee464d00370d1e5e7cd997c3cdb8b0fb7 (main), 2026-10-10
morpho-org/vault-v2 analyzed at commit d992cb8438b8630b3fee4649311d78d649264a5e (main), 2026-10-10, for the comparison

Morpho documentation

Audits

Standards

Feel free to contact me on

# morpho # defi # ethereum # erc-4626 # tokenized-vault # solidity # risk-management # bad-debt

You might also enjoy

Risk of Ethena's USDe and sUSDe - Backing Venues, Depeg Priors and a Leveraged PT Position

Risk of a Zama Confidential Morpho Vault - Losses, Exits, Contagion and What Can Be Watched

Pricing Yield Collateral on Morpho - Huma's PST Exchange Rate and Ojo's Pendle PT Feed

Pricing a Lending Position During an Incident - What the Oracle Reads, When, and Who Bears the Gap
