Running a Zama Coprocessor — Architecture, Services and Operator Setup

    By ·

    Zama runs confidential smart contracts on ordinary EVM chains with Fully Homomorphic Encryption (FHE). The chain never computes on ciphertexts itself: a contract records which operation to perform on which encrypted handles, and a set of off-chain operators, the coprocessors, do the arithmetic, verify users’ encrypted inputs and commit their results to a coordination rollup called the Gateway. The protocol’s security argument depends on several of them running the same work independently and a majority agreeing; the architecture article covers that argument.

    This article is about one coprocessor, seen from the inside and from the operator’s chair. It reads two repositories: zama-ai/fhevm, whose coprocessor/fhevm-engine directory holds the Rust services a node is made of, and zama-ai/coprocessor-operator, the repository Zama gives partner operators to deploy those services on an EKS cluster. The first tells what a coprocessor does; the second tells what it takes to run one in production, down to the CPU counts, the secrets, the PostgreSQL roles and the signing key.

    This article has been made with the help of Claude Code and several custom skills

    What a coprocessor is responsible for

    A coprocessor has four jobs in the protocol, and they map onto four distinct data flows through the node:

    • Compute. Every FHE operation a contract performs symbolically on a host chain is an event from the FHEVMExecutor contract. The coprocessor turns those events into a queue of computations, evaluates them with TFHE-rs using the evaluation key, and stores the resulting ciphertext under the handle the chain already derived.
    • Verify inputs. When a user registers an encrypted input on the Gateway, the InputVerification contract emits a request. The coprocessor checks the zero-knowledge proof, unpacks the ciphertexts, and attests the resulting handles with an EIP-712 signature bound to the user, the contract and the chain. That signature is what a contract later checks in FHE.fromExternal.
    • Commit. For every handle the host chain’s ACL contract allows, the coprocessor prepares the ciphertext for decryption with a switch-and-squash step, uploads both forms to its public S3 bucket, and posts their digests to the Gateway’s CiphertextCommits contract. A handle becomes decryptable once a majority of coprocessors have committed to the same digests.
    • Serve ciphertexts. The KMS downloads the prepared ciphertexts from the operators’ buckets when it decrypts. The bucket URL is part of the coprocessor’s on-chain registration: the Gateway’s Coprocessor struct holds a txSenderAddress, a signerAddress and an s3BucketUrl.

    Everything else in the node exists to make those four flows reliable across chain reorganisations, restarts and upgrades.

    The six services

    The node is not one binary. fhevm-engine is a Cargo workspace of services that share a PostgreSQL database and talk to each other through it, using LISTEN/NOTIFY channels as a work queue. The operator repository deploys six of them, each as its own Kubernetes workload.

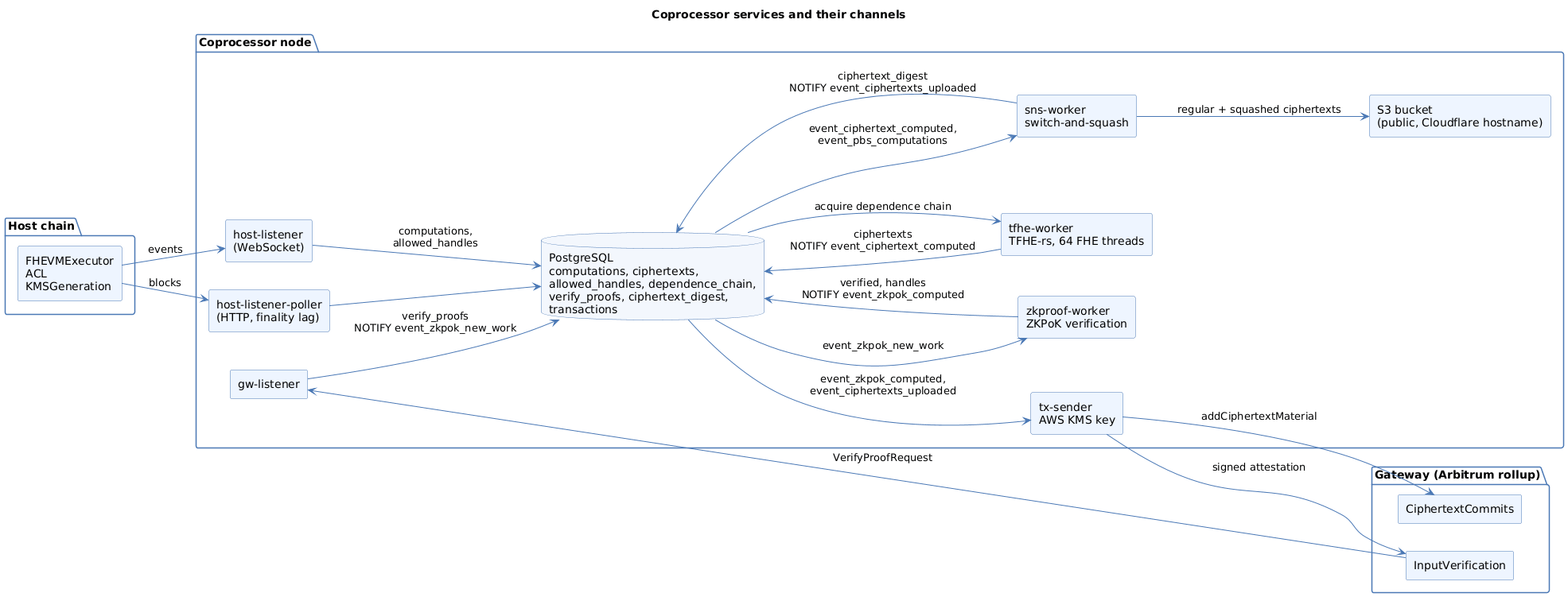

    The six coprocessor services around PostgreSQL: host-listener and gw-listener write work, tfhe-worker, zkproof-worker and sns-worker consume it, and tx-sender posts signed results to the Gateway; ciphertexts go to S3

    Service Listens to Writes Notifies What it does
    host-listener Host chain WebSocket: FHEVMExecutor, ACL, KMSGeneration events computations, allowed_handles, dependence_chain, block tables tfhe-worker Converts the symbolic execution trace into a computation DAG, tracks block finality and reorgs
    host-listener-poller Host chain HTTP, at a finality lag Same tables tfhe-worker Catch-up path that re-reads finalised blocks by polling, independent of the subscription
    gw-listener Gateway: InputVerification events verify_proofs zkproof-worker (event_zkpok_new_work) Turns input-verification requests into proof-checking work
    tfhe-worker computations (polling, dependence chains) ciphertexts, pbs_computations sns-worker (event_ciphertext_computed) The FHE engine: evaluates operations with TFHE-rs on CPU or GPU
    zkproof-worker event_zkpok_new_work verify_proofs (verified, handles) tx-sender (event_zkpok_computed) Verifies the ZKPoK, unpacks and stores the input ciphertexts, derives their handles
    sns-worker event_pbs_computations, event_ciphertext_computed ciphertexts128, ciphertext_digest; S3 tx-sender (event_ciphertexts_uploaded) Switch-and-squash, S3 upload, digest computation
    tx-sender event_zkpok_computed, event_ciphertexts_uploaded transactions Gateway Signs the EIP-712 attestation over verified handles, then sends InputVerification responses and CiphertextCommits.addCiphertextMaterial transactions with the operator’s key

    A seventh workload, db-migration, is a one-shot job that applies the schema migrations before any service starts. Two more, consensus-detector and upgrade-controller, exist in the workspace for the blue-green upgrade mechanism described later and are not part of the v0.13 operator deployment.

    host-listener: from events to a computation graph

    The listener subscribes to the host chain node over WebSocket and reads every event of the three protocol contracts. Each FHE operation event becomes a row in computations: the output handle, the operation code, the input handles (the second of which may be a scalar), the result type, and completion flags. Each Allowed or AllowedForDecryption event becomes a row in allowed_handles, which is what later triggers preparation for decryption.

    Ordering is the difficult part. Operations depend on each other through their handles, and the worker must not evaluate add(h1, h2) before h1 exists. The listener groups operations into dependence chains (a DCID in the code), connected components of the dependency graph that may extend across blocks when --dependence-cross-block is set, as it is on mainnet. A chain is the unit the worker locks and processes; independent chains run in parallel. A cap on the number of dependent operations per chain (--dependent-ops-max-per-chain, disabled with 0 on mainnet) can demote very long chains to a slow lane so that one contract’s deep computation does not starve the others.

    Reorganisations are handled by finality tracking rather than by rolling back: --reorg-maximum-duration-in-blocks (50 on Ethereum, 120 on Polygon) bounds how far back a reorg is expected, --catchup-finalization-in-blocks says how long to wait before a block is considered final, and a separate poller deployment re-reads blocks over HTTP at a --finality-lag of 15 blocks on Ethereum and 120 on Polygon, so that a dropped subscription cannot lose an event. The poller keeps its cursor in host_listener_poller_state, seeded once with --seed-start-block; the repository ships a job to patch that cursor when a poller has to be moved, with a comment explaining the block it was moved to and why.

    gw-listener and zkproof-worker: input verification

    The Gateway listener watches InputVerification over the Gateway’s WebSocket and inserts each request into verify_proofs, then notifies on event_zkpok_new_work. A zkproof-worker picks it up, verifies the proof against the CRS, unpacks the packed ciphertext list, stores each ciphertext with its derived handle, and writes back verified and the handle list. Its notification on event_zkpok_computed wakes the transaction sender, which computes the EIP-712 CiphertextVerification hash over the handles, the user, the contract and the chain id, signs it, and posts the response.

    The listener’s README states a deliberate limitation: it uses eth_subscribe, and if the connection drops, the subscription resumes from the head and may skip events. This is accepted because input verification is a synchronous request from the client’s point of view; a lost request is retried by the user, and nothing on the Gateway is left inconsistent.

    tfhe-worker: the FHE engine

    The worker polls computations for chains whose inputs are all available, takes a distributed lock on the chain, and evaluates the operations in order with TFHE-rs. The lock is a lease with a TTL and a time slice, so that a crashed worker’s chain is picked up by another. Two thread pools matter: the tokio pool for asynchronous I/O and the FHE pool for the arithmetic itself. On mainnet the values file gives the worker 64 FHE threads, 16 tokio threads, a batch of 16 work items and 100 dependence chains per batch, on a node with 88 CPUs and 128 GiB of memory.

    Results go to ciphertexts under the output handle; operations that need a programmable bootstrapping also record a row in pbs_computations, which the sns-worker consumes. A computation that fails is retried rather than abandoned; the code comments are explicit that a row whose retries are exhausted is demoted to the slow lane and re-armed on a long cadence, so that the failure is visible in metrics instead of silently terminal.

    GPU builds exist for the three services that do FHE work (tfhe-worker, sns-worker, zkproof-worker). The repository documents that a GPU image is built for exactly one compute capability, tagged with it (v0.15.0-cuda12.2-sm90 for H100), and refuses to start on a device of another capability, because the CUDA architectures compiled into TFHE-rs differ and an L40 build would silently lack the Hopper bootstrapping paths. The v0.13 operator values run the CPU images.

    sns-worker: preparing ciphertexts for the KMS

    Switch-and-squash converts a TFHE ciphertext into a form with a much larger gap between message bits and noise, which the KMS needs for a safe threshold decryption. The worker listens for computed ciphertexts and pending bootstrappings, performs the conversion with the sns_pk key stored in the database, stores the 128-bit form in ciphertexts128, uploads both the regular and the squashed ciphertext to the S3 bucket, and writes their digests to ciphertext_digest. Its notification on event_ciphertexts_uploaded tells the transaction sender that a commitment can be posted. The mainnet configuration allows 100 concurrent uploads with up to 100 retries each and rechecks S3 every two seconds for objects still missing.

    tx-sender: the node’s voice on the Gateway

    The transaction sender is the only service that holds a key, and that key does two things: it signs the EIP-712 attestations over verified input handles, and it signs the Gateway transactions. The sender reads verified proofs and uploaded digests from the database and sends two kinds of transactions:

    • Input-verification responses, in batches of up to 128, with six retries at most; after that a response is dropped, because the user will have retried the registration.
    • addCiphertextMaterial calls, in batches of 10, retried without limit, because a missing commitment blocks decryption for everyone.

    Gas is over-provisioned by 300 percent. On mainnet the signer is an AWS KMS key rather than a private key in a file: the values set wallet.awsKms.enabled: true, and the check chart’s kms-check prints the Ethereum address of that key with cast wallet address --aws.

    The data path, end to end

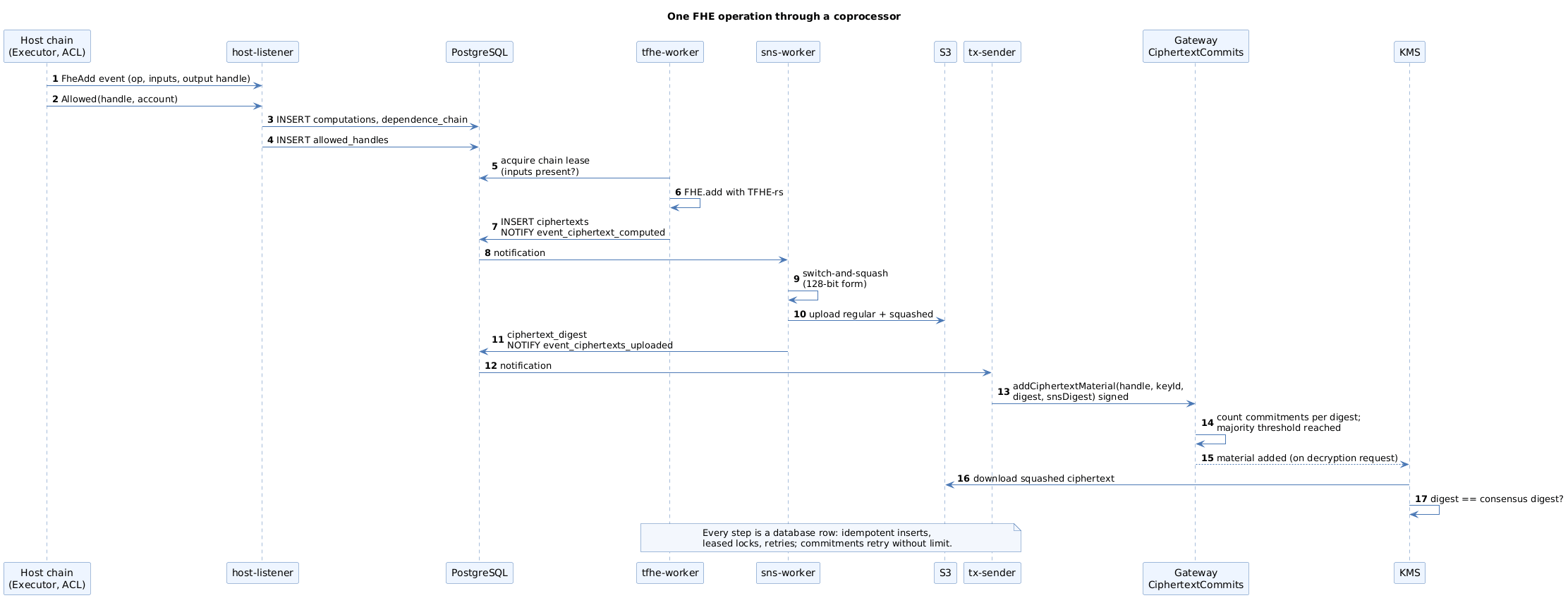

    Sequence of a computation through the coprocessor: executor event, host-listener insert, tfhe-worker evaluation, ACL event, sns-worker switch-and-squash and S3 upload, tx-sender commitment on the Gateway, majority consensus, KMS download

    Following one FHE.add from a contract to a decryptable ciphertext:

    1. The host chain mines a transaction in which FHEVMExecutor.fheAdd derives a handle and emits an event; the contract then calls FHE.allow on it and the ACL emits Allowed.
    2. The host-listener sees both events, inserts a computations row with the two input handles and the output handle, attaches it to a dependence chain, and inserts an allowed_handles row.
    3. A tfhe-worker acquires the chain once both inputs are present in ciphertexts, evaluates the addition, and stores the result under the output handle.
    4. The sns-worker, notified of the new ciphertext and of the allow, computes the squashed form, uploads both objects to S3, and records the two digests.
    5. The tx-sender posts addCiphertextMaterial(handle, keyId, digest, snsDigest) to CiphertextCommits, signed by the operator’s key.
    6. The Gateway counts commitments per digest; when the coprocessor majority threshold is reached, the material is marked added and the handle can be decrypted.
    7. On a decryption request, each KMS party downloads the prepared ciphertext from an operator’s bucket, checks its digest against the consensus, and runs the threshold protocol.

    Every step between 2 and 5 is idempotent and retried, and every step is visible in the database, which is why the operator tooling spends so much effort on the database.

    Deploying a node with coprocessor-operator

    The coprocessor-operator repository is small, 296 kB, and is the operator’s checklist. It assumes an EKS cluster provisioned with Zama’s Terraform modules and supplies what Terraform does not: secrets, database roles, pre-flight checks, and the Helm values for every service on testnet and mainnet.

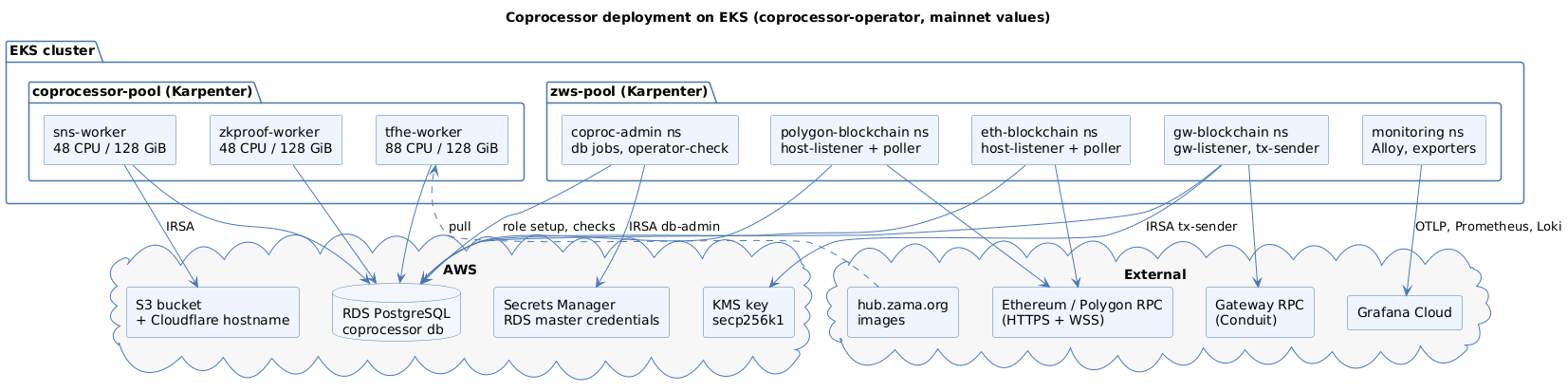

    Layout of a coprocessor deployment on EKS: namespaces per chain, RDS PostgreSQL, S3 behind a Cloudflare hostname, AWS KMS for the tx-sender key, Karpenter node pools for FHE workers and light services, Grafana Cloud for telemetry

    Infrastructure the node expects

    Resource Role Where it is referenced
    EKS cluster with two Karpenter node pools coprocessor-pool for the three FHE workers (88 CPU / 128 GiB for tfhe-worker, 48 CPU / 128 GiB each for zkproof-worker and sns-worker); zws-pool for listeners, tx-sender and jobs (1 to 8 CPU) affinity and tolerations in every values file
    Namespaces coproc (workers), coproc-admin (jobs and checks), gw-blockchain (gw-listener, tx-sender), one <chain>-blockchain per host chain (eth-blockchain, polygon-blockchain), monitoring k8s-check, secrets-bootstrap.sh
    RDS PostgreSQL The shared database, reached through an ExternalName service coprocessor-database in coproc; sslmode=require commonConfig.databaseUrl
    S3 bucket behind a Cloudflare custom hostname Public ciphertext storage; aws-check requires an HTTPS ListBucketResult from the hostname S3_BUCKET_NAME in coprocessor-config, checks.aws.storageHostname
    AWS KMS key (ECC_SECG_P256K1, sign/verify) The tx-sender’s Ethereum signing key; never in a file coprocessor-tx-sender ConfigMap, AWS_KEY_ID
    AWS Secrets Manager Holds the RDS master credentials, fetched by jobs through an IRSA-bound db-admin service account into a memory-backed volume db-admin-config[RDS_ADMIN_SECRET_ID]
    Private registry hub.zama.org All images: service images under zama-protocol/zama-ai/fhevm/coprocessor/, utility images for postgres, aws-cli, kubectl, eth-foundry, s5cmd registry-credentials in every namespace
    Grafana Cloud Prometheus, Loki and OTLP endpoints, fed by an in-cluster Alloy receiver grafana-cloud-credentials, tracing.endpoint
    RPC endpoints HTTPS and WSS for each host chain, and for the Gateway (a Conduit-hosted Arbitrum Orbit rollup) rpc-credentials, conduit-credentials

    Step 1: secrets

    scripts/secrets-bootstrap.sh is run once against the cluster. It detects the environment from the kubeconfig context, refuses to continue if a namespace is missing, then creates, idempotently, six groups of secrets:

    • RDS user passwords for coprocessor_user, postgres_exporter and sql_exporter, generated with openssl rand and stored only in Kubernetes Secrets; the coprocessor password is fanned out to every namespace that runs a service, and re-read from an existing secret so that a partial run does not desynchronise them.
    • Registry credentials for hub.zama.org, in every namespace including kube-system and karpenter.
    • Grafana Cloud credentials, provided by Zama.
    • RPC credentials for Ethereum, for Polygon, and for the Gateway.

    The RPC URLs are validated for their scheme, and on a mainnet cluster any URL containing sepolia, amoy or testnet requires an explicit confirmation. A second script, new-blockchain-bootstrap.sh, copies the database and registry secrets into a new <chain>-blockchain namespace when a host chain is added later, precisely because regenerating the password would break the one already set in RDS.

    Step 2: database roles

    The coprocessor-rds-postgres-jobs chart renders one Kubernetes Job per values file. helm-values/utils/rds-user-creation.yaml is the first one to run: an init container fetches the RDS master credentials from Secrets Manager into a medium: Memory volume, and the main container runs psql as the master user to create or update three roles. coprocessor_user gets CONNECT, CREATE and ownership of the public schema; postgres_exporter gets pg_monitor; sql_exporter gets read-only access to every current and future table, the latter through ALTER DEFAULT PRIVILEGES FOR ROLE coprocessor_user, which requires the master user to be granted membership of coprocessor_user first.

    Other values files under utils/ reuse the same chart for a database dump, a reset, and a bulk copy of the ciphertext corpus from a Zama-owned bucket into the partner’s bucket with s5cmd sync --size-only, run as a non-root pod with a read-only root filesystem.

    Step 3: pre-flight checks

    The coprocessor-operator-check chart installs a single Job as a pre-install,pre-upgrade Helm hook. Its init containers run in sequence and any failure blocks the release:

    1. k8s-check lists every namespace, secret, ConfigMap key and ExternalName service the stack needs and prints a tick or a cross for each.
    2. aws-check fetches https://<storage hostname> and requires a 200 with a ListBucketResult body.
    3. kms-check resolves the tx-sender’s AWS KMS key to an Ethereum address with Foundry’s cast.
    4. fetch-rds-secret pulls the master credentials into memory, and db-check lists roles, memberships, schema ownership and default privileges.

    The RBAC the job needs is a ClusterRole limited to get and list on namespaces, secrets, services and ConfigMaps, deleted once the hook succeeds; every container drops all Linux capabilities.

    Step 4: the Helm releases

    The coprocessor Helm chart itself lives in the fhevm repository (charts/coprocessor, at version 0.13.20 at the revision read). The operator repository supplies one values file per release, and the pattern is that each release enables exactly one part of the chart and disables the rest:

    Release (mainnet) Enabled Namespace Notes
    values-coproc-infra-db-mig-mainnet.yaml dbMigration coproc One-shot; declares both host chains with their ACL addresses
    values-eth-coproc-listener-mainnet.yaml hostListener, hostListenerPoller for Ethereum eth-blockchain Block time 12 s, reorg window 50, finality lag 15
    values-polygon-coproc-listener-mainnet.yaml Same for Polygon polygon-blockchain Block time 2 s, reorg window 120, finality lag 120, --start-at-block pinned to the deployment block of the v0.13 contracts
    values-gw-coprocessor-mainnet.yaml gwListener, txSender gw-blockchain Gateway WSS and HTTPS from conduit-credentials; tx-sender signs with AWS KMS
    values-coproc-workers-mainnet.yaml tfheWorker, zkProofWorker, snsWorker coproc The heavy pool; S3 bucket name from coprocessor-config

    Contract addresses are not typed into values: the chart renders ConfigMaps (eth-sc-addresses, polygon-sc-addresses, gw-sc-addresses) from a network: mainnet selector, and every service reads acl.address, fhevm_executor.address, kms_generation.address or the Gateway contract addresses from them. Adding a host chain therefore means a new namespace, a new listener release, a new entry in the chains list of the migration and worker releases, and a run of new-blockchain-bootstrap.sh.

    All workloads use a RollingUpdate strategy with maxUnavailable: 0 and a single replica, and expose a metrics port scraped by a ServiceMonitor; the tx-sender and gw-listener also expose /liveness and /healthz probes. Tracing goes to the in-cluster Alloy receiver over OTLP and from there to Grafana Cloud.

    Step 5: the signing key

    The tx-sender’s key is the operator’s identity on the Gateway: GatewayConfig registers it as txSenderAddress, and a transaction from any other address is refused. The repository’s third script, import-eth-key-to-kms-cross-account.sh, handles the case where the key was generated elsewhere: it reads a hex private key from Secrets Manager in a source AWS account, converts it to PKCS#8 DER, imports it as external key material into a PendingImport KMS key in the operator’s account, and prints the resulting public key. After that the private key exists only inside KMS, and the tx-sender signs through the AWS API with the credentials of its IRSA-bound service account.

    Operating the node

    Three mechanisms in the code are what an operator will meet once the node runs.

    Cursors and replay. Both the listener and the poller keep their position in the database. The listener’s --start-at-block overrides its position on every start, which is why the Polygon values carry a comment to remove it after the first deployment; the poller’s --seed-start-block is read only when no row exists. Moving a poller backward is a SQL UPDATE on host_listener_poller_state, done with the poller scaled to zero, and the repository keeps the patch job that did exactly that on Amoy, with the block chosen a thousand blocks before the first observed protocol event.

    Slow lane and retries. Nothing in the worker is abandoned for running out of attempts. A chain that exceeds the dependent-operations cap, or a row that has exhausted its retries, is marked slow and picked up after all ordinary work; the metric to alert on is host_listener_slow_lane_marked_chains_total, and the host-listener README carries a runbook for the case where the slow lane itself is the cause of a stall.

    Blue-green upgrades. Newer than the v0.13 operator values, the workspace contains an upgrade-controller and a consensus-detector. An upgrade is proposed on-chain through ProtocolConfig.proposeCoprocessorUpgrade with a version and a block window per host chain; the current stack (the blue side) keeps serving, a candidate stack with a higher consensus protocol version (the green side) computes the same blocks in dry-run into its own database schema, each operator publishes a per-block state hash to S3, and the consensus detector polls every operator’s bucket for unanimous agreement on those hashes before the switch. It is the operational form of the protocol’s “anyone can recompute and compare” claim, applied to the operators themselves before they change software.

    Conclusion

    A Zama coprocessor is a pipeline of six single-purpose Rust services around one PostgreSQL database and one S3 bucket, and running one is mostly a matter of getting that database, that bucket and one signing key right.

    • Two listeners write work: the host-listener turns executor and ACL events into a computation graph organised in dependence chains; the gw-listener turns input-verification requests into proof-checking rows.
    • Three workers consume it: tfhe-worker evaluates operations with TFHE-rs, zkproof-worker verifies and signs inputs, sns-worker prepares ciphertexts for the KMS and uploads them.
    • One sender speaks for the node, posting input attestations and ciphertext commitments to the Gateway with a key held in AWS KMS.
    • The operator repository supplies what Terraform does not: a secrets bootstrap, database role jobs, a pre-flight check hook, and one values file per release for testnet and mainnet, with the CPU and memory figures of the production pools.
    • Reliability comes from the database: idempotent inserts, leased locks on dependence chains, finality-lagged pollers, unlimited retries on commitments, and cursors an operator can move with SQL.
    • Upgrades are being made verifiable: a blue-green mechanism with per-block state hashes compared across operators before a switch.

    Mindmap of the coprocessor: its four responsibilities, the six services and their channels, the end-to-end data path, the infrastructure and deployment steps, and the operating mechanisms

    Annex

    Key Terms

    Term Definition
    Symbolic execution The on-chain model where FHEVMExecutor derives result handles and emits events instead of computing; the coprocessor consumes those events.
    Dependence chain (DCID) A connected component of the operation dependency graph, possibly spanning blocks, that a tfhe-worker locks and evaluates as a unit.
    Switch-and-squash The conversion of a TFHE ciphertext into a larger-domain form the KMS requires for threshold decryption, performed by the sns-worker.
    Ciphertext commitment The pair of digests (regular and squashed) a coprocessor posts to CiphertextCommits; decryption waits for a majority of identical commitments.
    Input attestation The EIP-712 signature a zkproof-worker produces over verified input handles, the user, the contract and the chain id; checked on-chain by InputVerifier.
    Host-listener poller The catch-up listener that re-reads finalised blocks over HTTP at a fixed lag, guarding against events lost by the WebSocket subscription.
    Slow lane A scheduling priority for dependence chains that are too long or have failed repeatedly; processed only when ordinary work is exhausted.
    ExternalName service The Kubernetes service coprocessor-database in coproc that resolves to the RDS endpoint, so every namespace reaches the database by one name.
    IRSA IAM Roles for Service Accounts; how the db-admin, sns-worker and tx-sender service accounts obtain AWS permissions without static credentials.
    Blue-green upgrade The mechanism in which a candidate stack computes the same blocks in dry-run and operators compare per-block state hashes before switching.

    Invariants

    Invariant Enforced by Breaks if
    An operation is evaluated only after every input ciphertext it depends on exists. Dependence-chain formation in the host-listener and the worker’s acquisition query on computations. A chain is split incorrectly across blocks, or a worker bypasses the lock.
    One dependence chain is processed by one worker at a time. Leased locks in dependence_chain with a TTL and time slice; stale leases are reclaimed. The lock TTL is shorter than the evaluation time and two workers evaluate the same chain.
    A commitment posted to the Gateway matches the object in the operator’s bucket. The sns-worker computes the digest from the uploaded bytes and rechecks S3 before notifying the tx-sender. The bucket is overwritten or the Cloudflare hostname serves a different bucket.
    Every Gateway transaction from the node comes from the registered txSenderAddress. The tx-sender signs with the AWS KMS key whose address is in GatewayConfig. The KMS key is rotated without re-registering the operator.
    A finalised host-chain event is ingested exactly once. Unique keys on computations and allowed_handles; poller cursor in host_listener_poller_state. The poller cursor is moved past events, or the reorg window is shorter than a real reorg.
    Input-verification responses are never replayed against another chain or contract. The EIP-712 signature covers user, contract and chain id; InputVerifier checks the chain id encoded in the handle. The tx-sender signs with a key not registered as signerAddress.

    Integration Notes

    Behaviour What an operator should do
    --start-at-block on the listener overrides the saved position on every restart. Remove it from the values after the first deployment; use the poller’s --seed-start-block or a SQL cursor patch to move a position.
    The gw-listener resumes from the head after a dropped subscription and may skip input-verification requests. Accept it; clients retry input registration. Keep provider-max-retries high so the reconnect itself is reliable.
    Input-verification responses stop retrying after six attempts; ciphertext commitments never stop. Alert on the commitment retry gauge; a stuck commitment blocks decryption for every user of that handle.
    The three RDS passwords exist only in Kubernetes Secrets. Back up the Secrets, and never re-run the RDS step of secrets-bootstrap.sh with the secrets deleted.
    A GPU image runs only on the compute capability in its tag. Match the tag (sm90 for H100/H200, sm89 for L40) to the node pool; there is no floating :gpu tag.
    The check hook blocks a Helm release on any missing resource. Run Terraform, then secrets-bootstrap.sh, then the DB user job, before the first helm upgrade --install.
    Adding a host chain does not populate its namespace’s secrets. Run new-blockchain-bootstrap.sh <ns> and add the chain to the chains list of the migration and worker releases.

    Frequently Asked Questions

    Q: Why do the services communicate through PostgreSQL instead of a message queue?

    Because the database is also the system of record: computations, ciphertexts, allowed handles, proofs and transactions all live there, and every service’s progress is a row it can be restarted from. LISTEN/NOTIFY channels such as event_zkpok_new_work and event_ciphertexts_uploaded give the queue behaviour without a second stateful component, and polling intervals on every worker cover a missed notification.

    The cost is that the database is the scaling and availability bottleneck, which is why it is a managed RDS instance with its own exporters and why the operator tooling is mostly about it.

    Q: Which of the six services needs the operator’s Ethereum key, and where is it?

    Only the tx-sender. On mainnet the key is an AWS KMS key of type ECC_SECG_P256K1; the service signs through the AWS API under an IRSA-bound service account and never sees the private scalar. The same signer object signs the EIP-712 input attestations and the transactions, so in this deployment the signerAddress and txSenderAddress registered on the Gateway are backed by the same key. The import-eth-key-to-kms-cross-account.sh script exists for operators whose key was generated before the KMS key was created.

    Q: A host chain reorganises. What happens to computations already evaluated?

    The listener does not roll back. It tracks block validity and finality (blocks_valid, host_chain_consumer_blocks), waits --catchup-finalization-in-blocks before treating a block as final, and expects reorgs no deeper than --reorg-maximum-duration-in-blocks. Work ingested from an orphaned block is superseded when the canonical block is ingested, and the poller, running at a finality lag behind the head, re-reads the canonical history. A reorg deeper than the configured window is an operational incident, not something the code handles.

    Q: How does the KMS find a ciphertext when it has to decrypt it?

    From the handle. The Gateway’s CiphertextCommits holds the digests a majority of coprocessors agreed on, and GatewayConfig holds each coprocessor’s s3BucketUrl. A KMS party downloads the squashed ciphertext from any operator’s bucket, checks that its digest matches the consensus, and only then engages the threshold protocol. This is why the aws-check insists that the bucket be publicly listable through the custom hostname: a bucket the KMS cannot read is a coprocessor whose commitments are useless.

    Q: Combine the scheduling and the trust model: what does a coprocessor that is slow, and one that is wrong, each cost the protocol?

    A slow coprocessor delays its own commitments. As long as a majority of the others have committed, the handle is already decryptable and the slow node catches up; a commitment it never posts is retried forever and visible in its metrics.

    A wrong coprocessor posts a digest that disagrees with the majority. The Gateway does not count it toward consensus, the KMS never downloads that ciphertext, and the divergent commitment is a signed on-chain record that governance can act on.

    Neither can corrupt a result that the majority computed correctly, which is the assumption the whitepaper states and the commitment flow implements.

    Q: What is the minimum hardware for a mainnet node, according to the values files?

    Two node pools and three managed services:

    • FHE pool: tfhe-worker on 88 CPUs and 128 GiB; zkproof-worker and sns-worker on 48 CPUs and 128 GiB each; one replica of each.
    • Light pool: the host listeners and pollers, the gw-listener on 8 CPUs and 16 GiB, and the tx-sender, on 1 to 8 CPUs each.
    • Managed services: a PostgreSQL instance, an S3 bucket, and a KMS key.

    GPU images exist for the three heavy workers, but the v0.13 mainnet values use the CPU builds.
