The OpenSSH Channel Layer — One Abstraction Behind Forwarding, X11, Agent Access and Tunnels
Once an SSH connection finishes authenticating, everything that happens on it is a channel. A remote shell is a channel, a -L forwarding is a channel, X11 traffic is a channel, and so is the agent socket that lets a remote command sign with a local key. Portable OpenSSH implements all of them in one file, channels.c, which at roughly 150 KB is the largest hand-written C source in the tree.
This article reads that file and its header. It covers the type list that acts as the layer’s vocabulary, the way channel kinds are named on the wire, the per-channel flow-control window, and the half-close protocol that makes closing a channel considerably more involved than opening one. The revision analysed declares OpenSSH_10.5p1 in version.h.
The connection protocol itself is specified in RFC 4254, and OpenSSH’s additions to it are documented in the PROTOCOL file distributed with the source.
This article has been made with the help of Claude Code and several custom skills
A single type list as the layer’s vocabulary

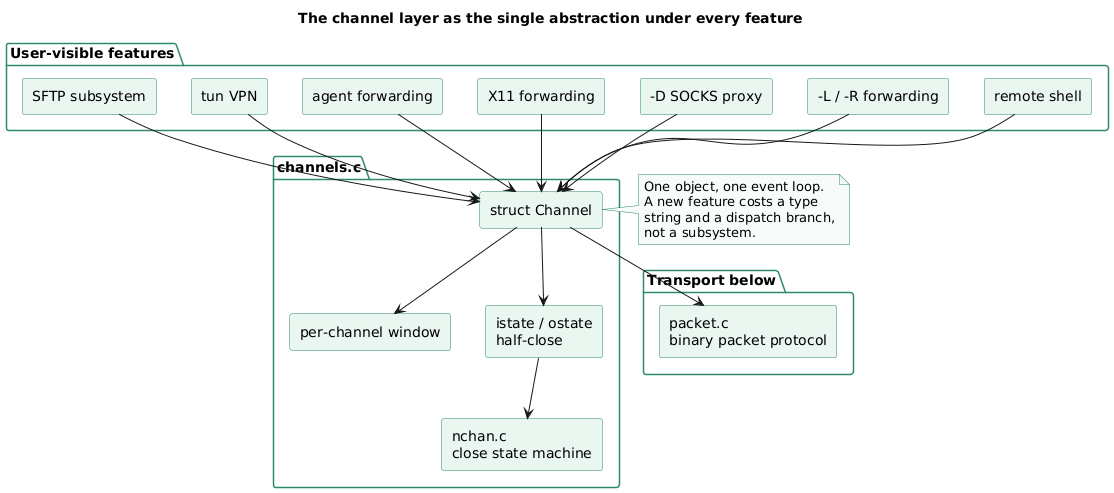

The clearest statement of the design is the type enumeration in channels.h, which puts 23 values into one namespace:
#define SSH_CHANNEL_X11_LISTENER 1 /* Listening for inet X11 conn. */
#define SSH_CHANNEL_PORT_LISTENER 2 /* Listening on a port. */
#define SSH_CHANNEL_OPENING 3 /* waiting for confirmation */
#define SSH_CHANNEL_OPEN 4 /* normal open two-way channel */
#define SSH_CHANNEL_CLOSED 5 /* waiting for close confirmation */
#define SSH_CHANNEL_AUTH_SOCKET 6 /* authentication socket */
#define SSH_CHANNEL_X11_OPEN 7 /* reading first X11 packet */
#define SSH_CHANNEL_LARVAL 10 /* larval session */
#define SSH_CHANNEL_RPORT_LISTENER 11 /* Listening to a R-style port */
#define SSH_CHANNEL_CONNECTING 12
#define SSH_CHANNEL_DYNAMIC 13
#define SSH_CHANNEL_ZOMBIE 14 /* Almost dead. */
#define SSH_CHANNEL_MUX_LISTENER 15 /* Listener for mux conn. */
#define SSH_CHANNEL_MUX_CLIENT 16 /* Conn. to mux client */
#define SSH_CHANNEL_ABANDONED 17 /* Abandoned session, eg mux */
#define SSH_CHANNEL_UNIX_LISTENER 18 /* Listening on a domain socket. */
#define SSH_CHANNEL_RUNIX_LISTENER 19 /* Listening to a R-style domain socket */
#define SSH_CHANNEL_MUX_PROXY 20 /* proxy channel for mux-client */
#define SSH_CHANNEL_RDYNAMIC_OPEN 21 /* reverse SOCKS, parsing request */
#define SSH_CHANNEL_RDYNAMIC_FINISH 22 /* reverse SOCKS, finishing connect */
Two things follow from reading it as a whole.
The field is named type, but several of its values are lifecycle stages rather than kinds. A channel passes through SSH_CHANNEL_OPENING, SSH_CHANNEL_OPEN, SSH_CHANNEL_CLOSED and SSH_CHANNEL_ZOMBIE while remaining the same object throughout. The mixing is deliberate: the value is used as the dispatch key for the event loop, so encoding both the kind and the stage in one field lets a handler be selected with a single lookup.
Features that a user would describe as unrelated sit next to each other. SSH_CHANNEL_DYNAMIC is the local SOCKS proxy created by ssh -D, whose opening bytes are a SOCKS request that must be parsed in band before the real destination is known. SSH_CHANNEL_RDYNAMIC_OPEN and SSH_CHANNEL_RDYNAMIC_FINISH are the same idea in reverse for ssh -R. SSH_CHANNEL_AUTH_SOCKET is agent forwarding. None of these needed a subsystem of its own.
Channel kinds are strings on the wire
The type field is internal. On the wire, the kind of a channel is a string carried in SSH2_MSG_CHANNEL_OPEN, and incoming requests are dispatched in channels.c through a short chain of comparisons:
if (strcmp(rtype, "direct-tcpip") == 0) {
...
} else if (strcmp(rtype, "direct-streamlocal@openssh.com") == 0) {
...
} else if (strcmp(rtype, "forwarded-streamlocal@openssh.com") == 0) {
Four of the type strings come from RFC 4254: session, direct-tcpip, forwarded-tcpip and x11. The rest carry a vendor suffix and are OpenSSH extensions documented in PROTOCOL: direct-streamlocal@openssh.com and forwarded-streamlocal@openssh.com for Unix-domain-socket forwarding, auth-agent@openssh.com for agent forwarding, and tun@openssh.com for layer 2 and layer 3 tunnels.
Not every kind is allocated inside channels.c. Forwarding and X11 channels are, but a session channel is created by its caller, which is ssh.c for the client’s own session, mux.c for one requested by a multiplexing client, and serverloop.c on the server side:
c = channel_new(ssh,
"session", SSH_CHANNEL_OPENING, in, out, err,
...
tun@openssh.com is likewise handled in clientloop.c and serverloop.c. The allocation site varies, but every one of them produces the same struct Channel and is then serviced by the same event loop, which is the property that matters.
The consequence is visible in the command-line syntax. Unix-domain-socket forwarding was added by defining two new type strings rather than a new subsystem, which is why -L and -R accept a socket path in the same argument position as a port number, and why the two forms share their option parsing, their permission checks and their teardown.
Flow control is per channel, not per connection
Several channels share one encrypted transport, so a channel that stops reading must not be able to stall the others. The connection protocol solves this with a credit window advertised per channel, held in struct Channel as four fields:
u_int remote_window;
u_int remote_maxpacket;
u_int local_window;
u_int local_window_max;
A peer may send up to remote_window bytes before it must wait for a SSH2_MSG_CHANNEL_WINDOW_ADJUST. The defaults come from channels.h:
#define CHAN_SES_PACKET_DEFAULT (32*1024)
#define CHAN_SES_WINDOW_DEFAULT (64*CHAN_SES_PACKET_DEFAULT)
A session channel therefore advertises a 2 MiB window made of 64 packets of 32 KiB each. X11 channels are configured far more tightly, at four packets rather than 64, which suits a workload of many small round trips rather than bulk transfer.
Because the accounting is per channel, a large scp running over one channel and an interactive shell running over another are credited separately. A forwarded TCP connection whose far end has stopped reading will exhaust its own window and stop, and the shell sharing the same transport keeps running. There is also a hard ceiling on buffered input independent of the window:
#define CHAN_INPUT_MAX (16*1024*1024)
Closing a channel is harder than opening one
Opening a channel is a request and a confirmation. Closing one is a protocol, because each direction has to be shut down separately and neither may discard data that has already been written. struct Channel tracks the two directions independently:
u_int istate; /* input from channel (state of receive half) */
u_int ostate; /* output to channel (state of transmit half) */
Each runs a four-state machine defined in channels.h:
#define CHAN_INPUT_OPEN 0
#define CHAN_INPUT_WAIT_DRAIN 1
#define CHAN_INPUT_WAIT_OCLOSE 2
#define CHAN_INPUT_CLOSED 3
#define CHAN_OUTPUT_OPEN 0
#define CHAN_OUTPUT_WAIT_DRAIN 1
#define CHAN_OUTPUT_WAIT_IEOF 2
#define CHAN_OUTPUT_CLOSED 3
The transitions live in nchan.c.
The WAIT_DRAIN states are the reason the machine exists. A local process can write its output and exit while bytes are still buffered locally, so a direction that closed as soon as its file descriptor reported EOF would discard exactly the output the user cares about. The transmit half therefore flushes what it holds before signalling EOF to the peer, and the receive half does the same in the other direction.
Only once both halves reach CLOSED is SSH2_MSG_CHANNEL_CLOSE sent, and the channel is not freed until the peer’s own close arrives. SSH_CHANNEL_ZOMBIE holds a channel in that final interval, and SSH_CHANNEL_ABANDONED covers the case of a multiplexed session whose client went away without a clean shutdown.
The design predates the current code and is documented in the tree itself. nchan.c ships alongside nchan.ms and nchan2.ms, two design notes written in troff that describe the state machine and its revision.
Conclusion
The channel layer works by keeping one object and one event loop, then expressing each feature as a value in a shared vocabulary. A new kind of forwarding costs a type string, a branch in the dispatch chain, and a listener state, rather than a parallel implementation with its own buffering and teardown. Unix-domain-socket forwarding and reverse SOCKS proxying were both added on those terms.
The two mechanisms worth taking away separately are the per-channel window, which is what stops one stalled forwarding from freezing an interactive session on the same connection, and the half-close machine, which is what prevents a process that exits immediately after writing from losing its output.
Annex
Key Terms
| Term | Definition |
|---|---|
| Channel | The unit of multiplexing inside an authenticated SSH connection, represented by struct Channel and used for sessions, forwardings, X11, agent access and tunnels alike. |
| Channel type string | The name carried in SSH2_MSG_CHANNEL_OPEN that states what a channel is for, such as session, direct-tcpip or tun@openssh.com. |
| Larval channel | A session channel that has been allocated but not yet started, held in SSH_CHANNEL_LARVAL until a shell, command or subsystem request arrives. |
| Dynamic channel | The channel type behind ssh -D, whose first bytes are a SOCKS request parsed in band to discover the destination. |
| Window | The per-channel byte credit a peer may send before it must wait for a window adjustment, defaulting to 2 MiB on a session channel. |
| Maximum packet size | The largest payload a single channel data message may carry, 32 KiB by default for a session channel. |
| Half-close | The property that the two directions of a channel close independently, tracked by the istate and ostate fields. |
| Drain | The phase in which a direction flushes buffered bytes before signalling EOF, represented by the WAIT_DRAIN states. |
| Zombie channel | A channel closed locally but not yet acknowledged by the peer, held in SSH_CHANNEL_ZOMBIE until it can be freed. |
| Event loop dispatch | The pattern of selecting per-channel behaviour from the type field, which is why lifecycle stages share a namespace with channel kinds. |
Invariants
| Invariant | Enforced by | Breaks if |
|---|---|---|
SSH2_MSG_CHANNEL_CLOSE is sent only after both directions have reached a closed state. |
The istate and ostate machines in nchan.c. |
A direction closes before draining, discarding output already written by a process that has exited. |
| A peer never sends more than the advertised window without receiving an adjustment. | The remote_window and local_window accounting in channels.c. |
One channel buffers without bound, or a stalled forwarding starves the others sharing the transport. |
| Buffered channel input stays below a fixed ceiling regardless of the window. | The CHAN_INPUT_MAX limit of 16 MiB. |
Memory use tracks peer behaviour rather than local configuration. |
| A channel is freed only after the peer’s close has been received. | The SSH_CHANNEL_ZOMBIE holding state. |
A channel identifier is reused while the peer still considers it live. |
| Every channel kind, wherever it is allocated, is serviced by the same event loop. | All allocation sites calling channel_new and returning a struct Channel. |
A feature acquires its own buffering and teardown path, and diverges from the others under load. |
Integration Notes
| Behaviour | What an integrator should do |
|---|---|
| Window credit is per channel, so a single channel cannot use the whole connection’s capacity. | Expect one bulk transfer to be bounded by its own 2 MiB window, and use several channels rather than one when throughput matters. |
| X11 channels are configured with a much smaller window than session channels. | Do not benchmark X11 forwarding as if it shared the session channel’s buffering profile. |
| A channel that has sent EOF in one direction is still open in the other. | Treat EOF as a per-direction event, and do not tear down local state until the close arrives. |
-L and -R accept a socket path wherever they accept a port. |
Use the streamlocal forms directly rather than bridging a Unix socket to a TCP port by hand. |
| Agent forwarding is an ordinary channel reaching a local socket. | Treat an exposed agent as a live credential path for anyone with access to the remote socket, not as a passive setting. |
Frequently Asked Questions
Q: Why does the type field mix channel kinds with lifecycle stages?
Because it is used as a dispatch key rather than as a classification. The event loop selects the handling for a channel by looking at one field, and a channel waiting for a connection to complete needs different treatment from one that is open and moving data. Encoding both facts in a single value keeps that selection to one lookup, at the cost of a list where SSH_CHANNEL_PORT_LISTENER and SSH_CHANNEL_ZOMBIE appear as peers.
Q: What is a larval channel?
It is a session channel that exists but has not yet been given work. The server allocates it in SSH_CHANNEL_LARVAL when the client opens a session channel, and it stays there until a request arrives to start a shell, run a command, or attach a subsystem such as SFTP. The state exists because opening the channel and deciding what it is for are two separate protocol exchanges.
Q: If several channels share one encrypted connection, what stops a stalled forwarding from blocking an interactive shell?
The per-channel window. Each channel advertises its own credit, and a peer that has consumed the credit for one channel must stop sending on that channel until a window adjustment arrives. Because the accounting is per channel rather than per connection, the stalled forwarding exhausts only its own window while the shell continues to spend its own credit.
Q: Why can a channel not simply close both directions at once?
Because the two directions do not finish at the same time, and closing early loses data. Three cases arise in practice:
- A local process writes its output and exits immediately, leaving bytes buffered that have not reached the peer.
- The peer has stopped reading but is still sending, so the receive half is active while the transmit half has nothing left to do.
- One side wants to signal end of input while continuing to read replies, which is what
ssh host command < filedoes.
The WAIT_DRAIN states give each direction a chance to flush before it signals EOF, and SSH2_MSG_CHANNEL_CLOSE follows only when both are finished.
Q: How does adding a new kind of forwarding affect the code, and what does that imply about Unix-socket forwarding?
It costs a type string, a branch in the dispatch chain in channels.c, and a listener state in the type list. It does not require new buffering, new flow control, or a new teardown path, because those belong to struct Channel and are shared.
Unix-domain-socket forwarding was added on exactly those terms, as direct-streamlocal@openssh.com and forwarded-streamlocal@openssh.com. That is the reason -L and -R take a socket path in the same argument position as a port, and the reason both forms behave identically with respect to windows, half-close and cleanup.
