OpenSSH Architecture — Channels, Multiplexing, SFTP Pipelining, Certificates and Detached Signatures
Portable OpenSSH is roughly 158 C files. The features a user names individually (port forwarding, X11 forwarding, agent forwarding, SOCKS proxying, file transfer) are not separate subsystems in that source. They are configurations of a small number of abstractions that the code implements once.
This article reads five of those abstractions in the portable tree at its current development revision, which declares OpenSSH_10.5p1 in version.h. Each section takes one subsystem, names the files that implement it, and quotes the constants and control flow that define its behaviour. The five were chosen because each one answers a question that the manual pages state as a fact without explaining the mechanism, such as why a second ssh to the same host returns instantly, why an SFTP transfer over a long link is not limited to one block per round trip, and why an unknown option inside a certificate is sometimes fatal and sometimes ignored.
The reading is deliberately narrow. It covers the connection protocol and the tools built on it, not the transport layer, the key exchange, or the privilege-separation model of the server.
This article has been made with the help of Claude Code and several custom skills
The channel layer
Once authentication completes, an SSH connection carries the SSH Connection Protocol, and everything after that point is a channel. channels.c is the largest hand-written C file in the tree at roughly 150 KB, and it implements one abstraction that every user-visible feature is expressed in.
The evidence is the type list in channels.h, which enumerates 23 values in a single namespace:
#define SSH_CHANNEL_X11_LISTENER 1 /* Listening for inet X11 conn. */
#define SSH_CHANNEL_PORT_LISTENER 2 /* Listening on a port. */
#define SSH_CHANNEL_OPENING 3 /* waiting for confirmation */
#define SSH_CHANNEL_OPEN 4 /* normal open two-way channel */
#define SSH_CHANNEL_CLOSED 5 /* waiting for close confirmation */
#define SSH_CHANNEL_AUTH_SOCKET 6 /* authentication socket */
#define SSH_CHANNEL_X11_OPEN 7 /* reading first X11 packet */
#define SSH_CHANNEL_LARVAL 10 /* larval session */
#define SSH_CHANNEL_RPORT_LISTENER 11 /* Listening to a R-style port */
#define SSH_CHANNEL_CONNECTING 12
#define SSH_CHANNEL_DYNAMIC 13
#define SSH_CHANNEL_ZOMBIE 14 /* Almost dead. */
#define SSH_CHANNEL_MUX_LISTENER 15 /* Listener for mux conn. */
#define SSH_CHANNEL_MUX_CLIENT 16 /* Conn. to mux client */
#define SSH_CHANNEL_ABANDONED 17 /* Abandoned session, eg mux */
#define SSH_CHANNEL_UNIX_LISTENER 18 /* Listening on a domain socket. */
#define SSH_CHANNEL_RUNIX_LISTENER 19 /* Listening to a R-style domain socket */
#define SSH_CHANNEL_MUX_PROXY 20 /* proxy channel for mux-client */
#define SSH_CHANNEL_RDYNAMIC_OPEN 21 /* reverse SOCKS, parsing request */
#define SSH_CHANNEL_RDYNAMIC_FINISH 22 /* reverse SOCKS, finishing connect */
Two observations follow from that list. First, the field is called type but several of its values are states rather than kinds, so a channel moves through SSH_CHANNEL_OPENING, SSH_CHANNEL_OPEN, SSH_CHANNEL_CLOSED and SSH_CHANNEL_ZOMBIE over its lifetime while remaining the same object. Second, features that appear unrelated to a user occupy adjacent entries: SSH_CHANNEL_DYNAMIC is the local SOCKS proxy created by ssh -D, whose first bytes are a SOCKS request parsed in band before the channel can be opened, and SSH_CHANNEL_RDYNAMIC_OPEN is the reverse of the same idea for ssh -R.
One abstraction, several channel type strings
On the wire, the kind of a channel is a string carried in SSH2_MSG_CHANNEL_OPEN. Incoming ones are dispatched in channels.c through a short chain of strcmp branches:
if (strcmp(rtype, "direct-tcpip") == 0) {
...
} else if (strcmp(rtype, "direct-streamlocal@openssh.com") == 0) {
...
} else if (strcmp(rtype, "forwarded-streamlocal@openssh.com") == 0) {
The standard types (session, direct-tcpip, forwarded-tcpip, x11) come from RFC 4254. The vendor-prefixed ones (direct-streamlocal@openssh.com, forwarded-streamlocal@openssh.com, auth-agent@openssh.com, tun@openssh.com) are OpenSSH extensions documented in the in-tree PROTOCOL file.
Not every type is created inside channels.c. The forwarding and X11 channels are, but a session channel is allocated by its caller, in ssh.c for the client’s own session, in mux.c for one requested by a multiplexing client, and in serverloop.c on the server side:
c = channel_new(ssh,
"session", SSH_CHANNEL_OPENING, in, out, err,
...
tun@openssh.com is handled in clientloop.c and serverloop.c in the same way. The allocation site differs, but every one of them produces the same struct Channel and is serviced by the same event loop, which is the property that matters. Unix-domain-socket forwarding was added by defining a new type string rather than a new subsystem, which is why -L and -R accept a socket path in the same syntax position as a port.
Flow control is per channel
Each channel carries its own credit-based window, held in struct Channel as four fields:
u_int remote_window;
u_int remote_maxpacket;
u_int local_window;
u_int local_window_max;
The defaults are set in channels.h:
#define CHAN_SES_PACKET_DEFAULT (32*1024)
#define CHAN_SES_WINDOW_DEFAULT (64*CHAN_SES_PACKET_DEFAULT)
A session channel therefore advertises a 2 MiB window built from 64 packets of 32 KiB. The window is per channel and not per connection, so a bulk transfer on one channel and an interactive shell on another are credited separately, and a stalled forwarded connection cannot stop a shell on the same transport from making progress.
Closing is harder than opening

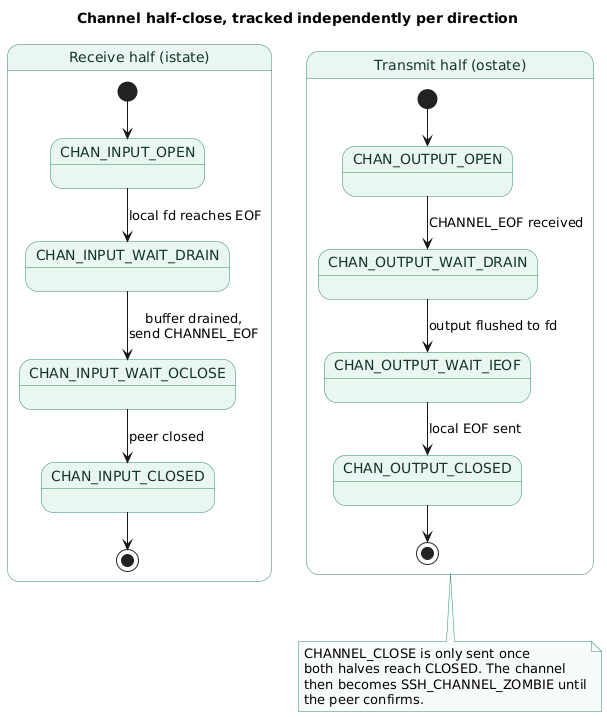

A channel has two independent halves, and struct Channel tracks them separately:
u_int istate; /* input from channel (state of receive half) */
u_int ostate; /* output to channel (state of transmit half) */
Each half runs its own four-state machine, defined in channels.h as CHAN_INPUT_OPEN, CHAN_INPUT_WAIT_DRAIN, CHAN_INPUT_WAIT_OCLOSE, CHAN_INPUT_CLOSED and the matching CHAN_OUTPUT_* values. The transition rules live in nchan.c.
The reason for the complexity is that closing early loses data. A local process may have written its output and exited while bytes are still buffered for the peer, so the transmit half has to drain before it can signal EOF, and the channel can only be freed once both halves have closed and the peer has confirmed. The intermediate SSH_CHANNEL_ZOMBIE state exists to hold a channel that is finished locally but not yet acknowledged. nchan.c ships with two design documents in the tree, nchan.ms and nchan2.ms, written in troff.
Connection multiplexing
When ControlMaster is enabled, the second ssh invocation to a host does not perform a key exchange or an authentication, because it is not acting as an SSH client at all. It connects to a Unix domain socket at ControlPath and speaks a private protocol to the first ssh process, which owns the real connection.
That protocol is defined in PROTOCOL.mux and implemented in mux.c. Its message set is small:
#define MUX_MSG_HELLO 0x00000001
#define MUX_C_NEW_SESSION 0x10000002
#define MUX_C_ALIVE_CHECK 0x10000004
#define MUX_C_TERMINATE 0x10000005
#define MUX_C_OPEN_FWD 0x10000006
#define MUX_C_CLOSE_FWD 0x10000007
#define MUX_C_NEW_STDIO_FWD 0x10000008
#define MUX_C_STOP_LISTENING 0x10000009
#define MUX_C_PROXY 0x1000000f
#define MUX_S_OK 0x80000001
#define MUX_S_SESSION_OPENED 0x80000006
#define MUX_S_EXIT_MESSAGE 0x80000004
The multiplexing machinery is itself built on channels. SSH_CHANNEL_MUX_LISTENER is the listening socket, SSH_CHANNEL_MUX_CLIENT is a connected client, and struct Channel carries ctl_chan and ctl_child_id fields specifically to associate a session channel with the mux client that requested it.
The MUX_C_OPEN_FWD and MUX_C_CLOSE_FWD messages take a type code:
#define MUX_FWD_LOCAL 1
#define MUX_FWD_REMOTE 2
#define MUX_FWD_DYNAMIC 3
These are what make ssh -O forward work, so a forwarding rule can be added to a live connection that was established without it.
Two modes, with different requirements on the client

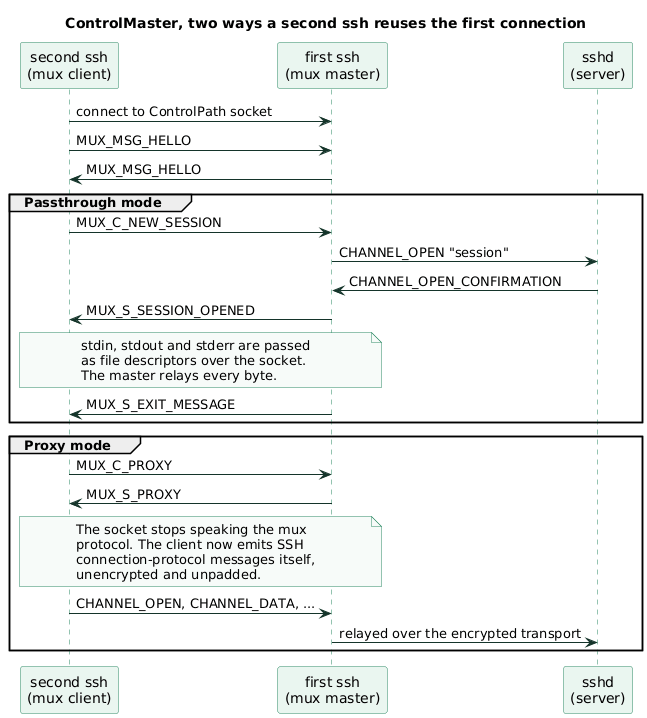

A mux client can operate in either of two modes, and they differ in what the client has to implement.
- Passthrough. The client sends
MUX_C_NEW_SESSION, passes its standard input, output and error as file descriptors over the socket, and the master relays every byte between those descriptors and the encrypted transport. The client implements only the mux message framing. - Proxy. The client sends
MUX_C_PROXY, receivesMUX_S_PROXY, and the socket then stops speaking the multiplexing protocol entirely.PROTOCOL.muxdescribes what happens next as follows, quoting the specification: “All subsequent data over the connection will be formatted as unencrypted, unpadded, SSH transport messages.”
The trade-off is stated in the same document. A proxy client “must speak a significant subset of the SSH protocol, but in return is able to access basically the full suite of connection protocol features. Moreover, as no file descriptor passing is required, the connection supporting a proxy client may itself be forwarded or relayed to another host if necessary.” File-descriptor passing is a local operation that cannot cross a machine boundary, so removing the dependency on it is what allows a mux client to sit somewhere other than the master’s host.
SFTP request pipelining
SFTP is a request and response protocol carried over a single channel. Implemented without pipelining, a file transfer costs one network round trip per block, which on a link with meaningful latency puts throughput at the block size divided by the round-trip time regardless of available bandwidth. The bulk of sftp-client.c is the machinery that avoids this.
Two constants set the shape of the transfer:
#define DEFAULT_COPY_BUFLEN 32768
#define DEFAULT_NUM_REQUESTS 64
Both are reachable from the command line. sftp -B sets the buffer size, and sftp -R sets the ceiling on outstanding requests, described in sftp.1 as “how many requests may be outstanding at any one time” with a documented default of 64.

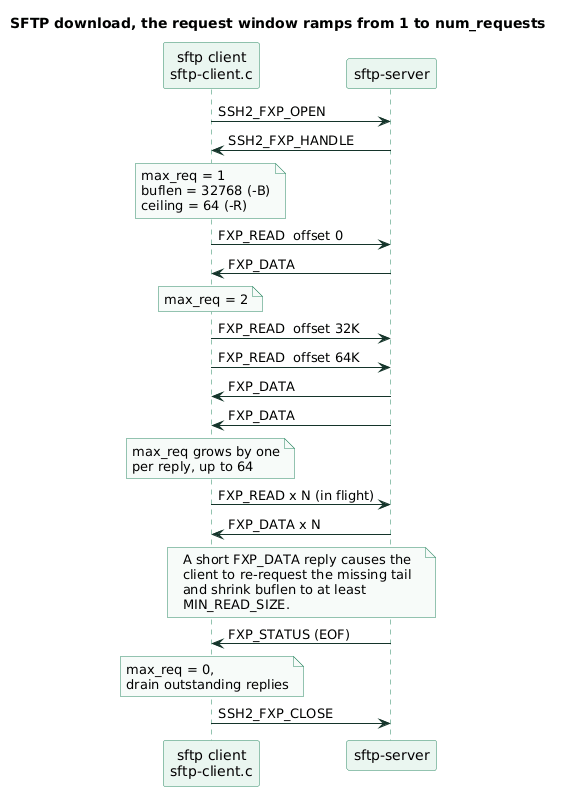

The client does not open the window to its full size immediately. In the download path it starts at one and grows:
write_error = read_error = write_errno = num_req = 0;
max_req = 1;
and, on each reply that is not the end of the file:
if (max_req > 0) { /* max_req = 0 iff EOF received */
if (size > 0 && offset > size) {
/* Only one request at a time
* after the expected EOF */
max_req = 1;
} else if (max_req < conn->num_requests) {
++max_req;
}
}
The upload path enforces the same ceiling from the other direction, by reading an acknowledgement whenever the number of unacknowledged writes reaches the limit:
if (id == startid || len == 0 ||
id - ackid >= conn->num_requests) {
The download loop handles three cases that a simpler implementation would get wrong.
- Short replies are re-requested, not treated as end of file. A server may return fewer bytes than asked for. The client re-issues a read for the missing tail and reduces its buffer size toward
MIN_READ_SIZE, adapting to a server that will not serve full-size blocks. - The window collapses to one past the expected end of file. Once the offset passes the size reported by the initial stat, the client stops speculating and issues a single request at a time.
- Completion is asserted, not assumed. After the loop, the client checks the queue and treats a non-empty one as unrecoverable:
fatal("Transfer complete, but requests still in queue"). A pipelined transfer that silently dropped a reply would otherwise produce a truncated file that looked successful.
Since OpenSSH 9.0, this code path is also what scp uses. The mode variable in scp.c is initialised to the SFTP path, and the legacy protocol is opt-in:
enum scp_mode_e mode = MODE_SFTP;
scp.1 documents -O as the flag that selects “the legacy SCP protocol for file transfers instead of the SFTP protocol”, noting that it may be needed for servers without SFTP and for particular wildcard and tilde expansion behaviours.
Certificates and revocation
An OpenSSH certificate is a signed structure that binds a public key to a set of principals for a bounded period. The parsed form is small enough to read in full:
struct sshkey_cert {
struct sshbuf *certblob; /* Kept around for use on wire */
u_int type; /* SSH2_CERT_TYPE_USER or SSH2_CERT_TYPE_HOST */
uint64_t serial;
char *key_id;
u_int nprincipals;
char **principals;
uint64_t valid_after, valid_before;
struct sshbuf *critical;
struct sshbuf *extensions;
struct sshkey *signature_key;
char *signature_type;
};
There is no ASN.1 and no chain. A certificate names a validity window, a principal list capped at SSHKEY_CERT_MAX_PRINCIPALS (256), the CA key that signed it, and two separate option bags.
The asymmetry between critical options and extensions
The split between critical and extensions decides how a server treats an option it does not recognise, and auth-options.c implements both cases in one function. Both bags are parsed by the same function, called twice with different arguments:
/* Handle options and critical extensions separately */
if (cert_option_list(ret, k->cert->critical,
OPTIONS_CRITICAL, 1) == -1) {
sshauthopt_free(ret);
return NULL;
}
if (cert_option_list(ret, k->cert->extensions,
OPTIONS_EXTENSIONS, 0) == -1) {
sshauthopt_free(ret);
return NULL;
}
The final argument is a flag named crit, and it decides what happens when the parser meets a name it does not recognise:
if (!found) {
if (crit) {
error("Certificate critical option \"%s\" "
"is not supported", name);
goto out;
} else {
logit("Certificate extension \"%s\" "
"is not supported", name);
}
}
An unknown critical option aborts the parse and the certificate is rejected. An unknown extension is logged and ignored. The rule is a direct consequence of what each bag is for. Critical options restrict (force-command, source-address, verify-required), so a server that cannot enforce one must not accept the certificate, because accepting it would grant access without the restriction its issuer intended. Extensions grant (permit-pty, permit-port-forwarding, permit-agent-forwarding, permit-X11-forwarding, permit-user-rc), so a server that does not understand one simply fails to grant a privilege, which is safe. Critical options fail closed and extensions fail open, and the same certificate remains usable against servers of different vintages without becoming more permissive on the older ones.
Revocation lists and their encoding
Revocation is handled by a separate artefact, the Key Revocation List, specified in PROTOCOL.krl and implemented in krl.c. A KRL is a sequence of typed sections:
#define KRL_SECTION_CERTIFICATES 1
#define KRL_SECTION_EXPLICIT_KEY 2
#define KRL_SECTION_FINGERPRINT_SHA1 3
#define KRL_SECTION_SIGNATURE 4
#define KRL_SECTION_FINGERPRINT_SHA256 5
Certificates can be revoked by serial number, and the serial subsections offer three encodings:
#define KRL_SECTION_CERT_SERIAL_LIST 0x20
#define KRL_SECTION_CERT_SERIAL_RANGE 0x21
#define KRL_SECTION_CERT_SERIAL_BITMAP 0x22
The encoder does not pick one by policy. It runs a cost model, computing the size in bits of each candidate encoding for the run of serials it is currently emitting, including the cost of switching away from the section type it is already in:
/* Estimate base cost in bits of each section type */
cost_list += 64 * contig + (final ? 0 : 8+64);
cost_range += (2 * 64) + (final ? 0 : 8+64);
cost_bitmap += last_gap + contig + (final ? 0 : MINIMUM(next_gap, 8+64));
cost_bitmap_restart += contig + (final ? 0 : MINIMUM(next_gap, 8+64));
/* Convert to byte costs for actual comparison */
cost_list = (cost_list + 7) / 8;
It then selects the cheapest. A handful of scattered serials encode as a list at 8 bytes each, a revoked contiguous batch collapses to a range of two values, and a dense region becomes a bitmap where each serial costs one bit. The bitmap itself is bitmap.c. The practical effect is that a KRL covering a large fleet stays small enough to distribute to every server, which is what makes serial-based revocation usable at all.
Detached signatures with sshsig
sshsig.c implements a signature format that has nothing to do with establishing a connection. It signs arbitrary data with an SSH key and produces an armoured blob delimited by -----BEGIN SSH SIGNATURE-----. This is the mechanism behind git config gpg.format ssh, and the OpenSSH repository uses it on its own commits, which is why a .git_allowed_signers file sits at the root of the tree.
The operations are exposed through ssh-keygen -Y, whose subcommands are dispatched in ssh-keygen.c: sign, verify, check-novalidate, find-principals and match-principals.
The construction of the signed pre-image is what gives the format its main property:
if ((r = sshbuf_put(tosign, MAGIC_PREAMBLE, MAGIC_PREAMBLE_LEN)) != 0 ||
(r = sshbuf_put_cstring(tosign, sig_namespace)) != 0 ||
(r = sshbuf_put_string(tosign, NULL, 0)) != 0 || /* reserved */
(r = sshbuf_put_cstring(tosign, hashalg)) != 0 ||
(r = sshbuf_put_stringb(tosign, h_message)) != 0) {
What is signed is not the message. It is the concatenation of a fixed "SSHSIG" preamble, a caller-supplied namespace string, a reserved field, the name of the hash algorithm, and only then the hash of the message. The namespace and the algorithm identifier are inside the signature, so neither can be reinterpreted after the fact.
Verification enforces the namespace as an equality check, and a mismatch is reported as an invalid signature rather than as a different class of error:
if (strcmp(expect_namespace, got_namespace) != 0) {
error("Couldn't verify signature: namespace does not match");
debug_f("expected namespace \"%s\" received \"%s\"",
expect_namespace, got_namespace);
r = SSH_ERR_SIGNATURE_INVALID;
goto done;
}
This is domain separation implemented as a mandatory API parameter. A signature produced with the namespace git cannot be presented as a signature over a file, and an application that adopts sshsig for its own purpose picks a namespace and is thereby isolated from every other user of the same key. The hash algorithm is checked immediately afterwards in the same way, which closes the corresponding substitution. A format that omitted the namespace would allow a signature gathered in one context to be replayed in another, and the API makes that outcome unreachable by refusing to sign or verify without one.
Conclusion
The five subsystems share a method. Each defines a small vocabulary in a header, implements it once, and expresses features as values in that vocabulary rather than as new code paths: a channel type string for every kind of forwarding, a message code for every multiplexing operation, a section type for every revocation encoding, a namespace string for every signing context. The consequence visible in the tree is that channels.c absorbed Unix-domain-socket forwarding and reverse SOCKS proxying as additional entries rather than as parallel implementations.
Two of the behaviours described here apply outside the context of reading this source. The asymmetry between critical options and extensions in a certificate determines whether a restriction is enforced or silently dropped by a server that does not recognise it, and the namespace field in an sshsig signature is what separates one application’s signatures from another’s.
Annex
Key Terms
| Term | Definition |
|---|---|
| Channel | The unit of multiplexing inside an SSH connection, represented by struct Channel and used for shells, forwardings, X11, agent access and tunnels alike. |
| Channel type string | The name carried in SSH2_MSG_CHANNEL_OPEN that selects what a channel is for, such as session, direct-tcpip or tun@openssh.com. |
| Half-close | The property that a channel’s receive and transmit directions close independently, tracked by the istate and ostate fields and driven by nchan.c. |
| Channel window | The per-channel byte credit a peer may send before receiving a window adjustment, defaulting to 2 MiB for a session channel. |
| ControlMaster | The mode in which one ssh process owns a connection and serves further invocations over a local socket at ControlPath. |
| Proxy mode | The multiplexing mode entered with MUX_C_PROXY, after which the client emits SSH connection-protocol messages itself instead of passing file descriptors. |
| Outstanding request window | The number of SFTP requests the client keeps in flight, ramping from one to num_requests and capped by sftp -R. |
| Critical option | A certificate option that restricts what the holder may do, and whose presence in an unrecognised form causes the certificate to be rejected. |
| Certificate extension | A certificate option that grants a privilege, and which is logged and ignored when unrecognised. |
| Namespace | The caller-supplied context string included in an sshsig signed pre-image, which a verifier must match exactly. |
Invariants
| Invariant | Enforced by | Breaks if |
|---|---|---|
CHANNEL_CLOSE is sent only once both directions have reached a closed state. |
The istate and ostate machines in nchan.c. |
A direction is closed before its buffer drains, truncating data already written by the local process. |
| A peer never sends more than the advertised window without an adjustment. | The remote_window and local_window accounting in channels.c. |
Buffering becomes unbounded, or one busy channel starves the others sharing the transport. |
| A certificate carrying an unrecognised critical option is rejected. | The crit flag passed to cert_option_list in auth-options.c. |
A server accepts a certificate while silently failing to apply the restriction its issuer attached. |
An SFTP client keeps at most num_requests operations in flight. |
The max_req ceiling on downloads and the id - ackid check on uploads. |
Memory use grows with file size rather than with the configured window. |
| A completed SFTP transfer leaves no request in the queue. | An explicit fatal() check after the transfer loop. |
A dropped reply produces a truncated file that reports success. |
| A signature verifies only under the namespace it was produced for. | The namespace inside the signed pre-image and the strcmp in sshsig_wrap_verify. |
A signature collected in one application is replayed against another that shares the key. |
Integration Notes
| Behaviour | What an integrator should do |
|---|---|
scp uses the SFTP protocol by default, and its wildcard and tilde handling differs from the legacy protocol. |
Test glob patterns and ~ paths against the default mode, and reserve -O for servers that genuinely lack an SFTP subsystem. |
After MUX_C_PROXY the control socket no longer carries multiplexing messages. |
Implement the SSH connection protocol in any tool that requests proxy mode, and do not keep decoding mux framing after the confirmation. |
| Unrecognised certificate extensions are logged and ignored rather than rejected. | Express a restriction that must be enforced as a critical option, and treat extensions as privileges that an older server may simply not grant. |
Raising sftp -R increases memory use in proportion to the window. |
Tune the value for a specific high-latency link rather than raising it globally. |
| Signing and verifying with sshsig both require a namespace, and the two must match exactly. | Choose one stable namespace string per application and record it alongside the allowed-signers file. |
Frequently Asked Questions
Q: Why does the channel type field in struct Channel mix kinds of channel with stages of a channel’s life?
Because the field is used as a dispatch key for the poll loop rather than as a classification. A channel in SSH_CHANNEL_CONNECTING needs different handling from one in SSH_CHANNEL_OPEN, and encoding that in the same field lets the event handlers select behaviour with a single lookup. The cost is that the name type describes only part of what the field holds, which is why entries such as SSH_CHANNEL_ZOMBIE and SSH_CHANNEL_LARVAL appear in a list that also contains SSH_CHANNEL_PORT_LISTENER.
Q: What does a mux client have to implement in passthrough mode, and what changes in proxy mode?
In passthrough mode the client implements the mux message framing only. It sends MUX_C_NEW_SESSION, hands its three standard file descriptors to the master over the Unix socket, and the master moves every byte on its behalf.
In proxy mode the client sends MUX_C_PROXY and, after the confirmation, the socket carries SSH connection-protocol messages instead of mux messages. The client must therefore implement a subset of the SSH protocol itself.
The benefit is that proxy mode passes no file descriptors, so the transport carrying the mux client does not have to be a local socket and can be forwarded to another host.
Q: Why does the SFTP client start with one outstanding request instead of immediately using all 64?
Opening the full window at once would commit to a transfer profile before anything is known about the server or the path. The ramp gives the client a chance to observe replies first, which matters in three situations that the code handles explicitly:
- A server that returns short reads causes the buffer size to shrink toward
MIN_READ_SIZE, and discovering that after one request is cheaper than after 64. - Once the offset passes the file size reported at the start, the window is deliberately reduced back to one so the client stops speculating past the end of the file.
- A small file completes before the window ever reaches its ceiling, so the growth costs nothing in the common case.
Q: A certificate contains an option the server does not recognise. When is that fatal?
It depends on which bag the option is in. An unrecognised name in the critical bag causes cert_option_list to log an error and abort, so the certificate is rejected and authentication fails. An unrecognised name in the extensions bag is logged at a lower level and skipped, and the rest of the certificate is honoured.
Q: Why does the KRL encoder compute a cost in bits rather than choosing a serial encoding by rule?
Because no single encoding wins across the distributions a real KRL contains. Scattered serials are cheapest as an explicit list, a revoked contiguous batch is cheapest as a pair of endpoints, and a dense region is cheapest as a bitmap at one bit per serial. The encoder therefore estimates all the candidates for the current run, including the cost of switching out of the section type it is already emitting, and picks the minimum. The result keeps a fleet-wide revocation list small enough to distribute to every server that needs it.
Q: How do the certificate option split and the sshsig namespace solve the same class of problem?
Both make a piece of context explicit so that it cannot be reinterpreted by a party that does not share the original intent. In a certificate, the critical and extension bags separate what must be enforced from what may be ignored, so an issuer’s restriction cannot be silently dropped by a server that lacks support for it. In sshsig, the namespace is placed inside the signed pre-image and checked by equality, so a signature cannot be moved between applications that share a key.
The difference is in what each defends against. The certificate split defends against a version gap between the issuer and the verifier, while the namespace defends against a context confusion between two verifiers that are both current.
References
Specifications
- RFC 4251 — The Secure Shell (SSH) Protocol Architecture
- RFC 4253 — The Secure Shell (SSH) Transport Layer Protocol
- RFC 4254 — The Secure Shell (SSH) Connection Protocol
- draft-ietf-secsh-filexfer-02 — SSH File Transfer Protocol
OpenSSH protocol documents
- PROTOCOL — OpenSSH extensions to the base SSH protocol, including the
@openssh.comchannel types - PROTOCOL.mux — the ControlMaster multiplexing protocol
- PROTOCOL.krl — the key revocation list format
- PROTOCOL.sshsig — the detached signature format
- README.privsep — the server’s process model, referenced but not covered here
Manual pages
Analyzed source
- openssh/openssh-portable — analyzed at commit
0ef0f5a839831c213f24e3f2ae434765c607fb50, 2026-08-27. The commit carries no release tag and sits afterV_9_7_P1;version.hat this revision declaresOpenSSH_10.5p1.
You might also enjoy
