A Test That Could Never Pass — An Aztec End-to-End Failure Three Layers from Its Cause

By Ryan S. · 2026, Sep 23

Aztec is a privacy-focused Layer 2 on Ethereum. A contract there has a private half, proved on the user’s own device over encrypted notes, and a public half executed by a sequencer; because the private half runs against a historical snapshot, public state it needs to read has to be published in a form whose value cannot change for a known window. An earlier article covers that mechanism and the delay it costs.

This one is a debugging narrative. An end-to-end suite that had been green for weeks started failing with an assertion that named none of the things that were wrong:

Simulation error: Assertion failed: Cannot resolve a constrained tagging secret for an invalid recipient
  at resolve_tagging_strategy.nr:23:9
  at messages/delivery/tag.nr:52:37

Nothing in that message mentions a timeout, a dependency version, or a configuration constant, and all three were involved. The interesting part is not the fix, which is four lines, but the distance between the symptom and the cause, and the fact that two of the three contributing changes were individually correct.

This article has been made with the help of Claude Code and several custom skills

The setting

The system under test is a privacy-preserving security token: balances are private notes, while supply, roles, the pause flag and the compliance flags are public. An issuer receives a copy of every movement so it can audit activity without asking any holder.

Three facts about it matter here, and each arrived as a separate, deliberate change:

The issuer’s address is a DelayedPublicMutable. Every mint, transfer and burn reads it in private, and a value written to such a variable becomes current only after a configured delay. The constructor schedules it rather than writing it:
```
// storage
issuer_address: DelayedPublicMutable<AztecAddress, CHANGE_ROLES_DELAY_SECONDS, Context>,

// constructor
self.storage.issuer_address.schedule_value_change(admin);
```
Until the delay elapses, a read returns the type’s default. For an AztecAddress that default is zero, which matters later.
The delay was raised from 360 seconds to one hour. The old value was an order of magnitude below the framework’s own recommendation, and it left a six-minute window in which a transaction had to be proved and included.
The issuer’s record of a mint became a constrained delivery. Previously the issuer received only an offchain copy of each note, which a standard client cannot process at all, so the mint also emits an event:
```
self.emit(Transfer { from: AztecAddress::zero(), to, amount }).deliver_to(
    issuer,           // read from issuer_address a few lines earlier
    MessageDelivery::onchain_constrained(),
);
```
An event has no owner and no nullifier, so any recipient’s client can process it. onchain_constrained is what makes it an unforgeable receipt rather than a claim, and it is the line that turns a zero issuer from harmless into fatal.

Each change was reviewed on its own terms. None of them was reviewed against the test suite’s constants.

The symptom, and what the assertion means

The failing assertion lives in the framework, not in the contract. Its source is short enough to quote in full:

pub(crate) unconstrained fn resolve_tagging_strategy(
    sender: AztecAddress,
    recipient: AztecAddress,
    mode: OnchainDeliveryMode,
) -> ResolvedTaggingStrategy {
    if recipient.is_valid() {
        resolve_tagging_strategy_oracle(sender, recipient, mode)
    } else if mode == OnchainDeliveryMode::onchain_constrained() {
        panic("Cannot resolve a constrained tagging secret for an invalid recipient")
    } else {
        ResolvedTaggingStrategy::unconstrained_secret(random())
    }
}

Two things follow from those nine lines.

“Invalid” is a statement about geometry, not about registration. An Aztec address is the x-coordinate of a point on the Grumpkin curve, and is_valid() is self.get_y().is_some(): does y² = x³ − 17 have a solution at this x? Roughly half of all field elements do not sit on the curve, so an arbitrary 254-bit number is invalid about half the time. A real account address is always valid, because it is derived as the x-coordinate of an actual point.

The delivery mode decides whether an invalid recipient is fatal. Unconstrained delivery is best-effort: it returns a random secret, producing a tag nobody can find, rather than aborting the sender’s transaction. Constrained delivery has no such option, because it must not silently emit an undiscoverable tag while claiming a guarantee. So it fails.

The question therefore became: which recipient in a mint is not on the curve? The mint delivers three messages, and only one of them is both constrained and addressed to something other than the recipient of the tokens: the issuer’s Transfer event.

Layer one: the run never started

Before any of that could be established, the suite had to run at all, and it did not. Every test failed at contract deployment:

RangeError: Maximum call stack size exceeded
  at NestedProcessReturnValues.get schema (@aztec/stdlib/.../public_simulation_output.js)
  at isRecursive (zod/v4/core/memoizer.js:84:29)
  at check      (zod/v4/core/memoizer.js:26:39)   ← repeating to the stack limit

zod is a schema-validation library. Nothing in the project imports it; it arrives transitively, because five framework packages depend on it and each declares the range ^4. It validates everything crossing the JSON-RPC boundary between a client and a node.

The schema at the top of that stack is self-referential, and legitimately so:

static get schema() {
    return z.object({
        values: NullishToUndefined(z.array(schemas.Fr)),
        nested: z.array(z.lazy(() => NestedProcessReturnValues.schema)),
    })...
}

A public simulation result contains nested results of its own type, because a public call can enqueue further public calls. The library’s recursion check walked that cycle instead of detecting it.

The dates settle who broke what:


The framework version in use was published	2026-08-17
Newest zod in existence at that moment	4.4.3, released 2026-05-04
zod 4.5.0 released	2026-08-28, eleven days later
What the package manager had installed	4.5.4

The framework was never built against the code that breaks. A caret range on a transitive dependency is a dependency the project never chose, and pinning it to 4.4.3 restored the run:

"resolutions": {
  "zod": "4.4.3"
}

resolutions rather than a dependency entry, because the copy that needs pinning is the one the framework packages resolve, not one the project imports.

Layer two: a timeout smaller than the sleep it guards

With the run unblocked, a different failure appeared. The deployment test timed out, and every later test failed on the tagging-secret assertion.

Two constants, forty lines apart in the same file:

const CHANGE_ROLES_DELAY_SECONDS = 3600;
const DELAY_MS = (CHANGE_ROLES_DELAY_SECONDS + 12) * 1000;   // 3,612,000 ms

const LONG_TEST_TIMEOUT = 900_000;                            //   900,000 ms

The deployment test performs await sleep(DELAY_MS) and runs under LONG_TEST_TIMEOUT. A test that sleeps for 3,612 seconds under a 900-second timeout cannot pass, in any circumstances, on any machine.

It was not always wrong. When the delay was 360 seconds, DELAY_MS was 372,000 and the 900,000 timeout had more than double the margin it needed. Raising the delay to one hour multiplied one constant by ten and left the other alone. The two had been consistent by coincidence rather than by construction, and nothing connected them.

The fix is to derive one from the other, so the relationship is stated rather than maintained:

const LONG_TEST_TIMEOUT = DELAY_MS + 600_000;

Layer three: the issuer address was still zero

Here the three changes meet. The deployment test was killed at 900 seconds, in the middle of a sleep that existed precisely so that the scheduled issuer address would become current. It never did. Every subsequent mint read issuer_address and got the type’s default: the zero address.

Is zero a valid Aztec address? It is the x-coordinate 0, and y² = −17 has no solution in this field, so no. It is exactly the kind of value the framework’s is_valid() rejects.

So the chain is:

the deployment test dies before the delay elapses;
issuer_address is still the default zero;
a mint emits a Transfer event to the issuer with onchain_constrained delivery;
constrained delivery resolves a tagging secret for the recipient;
the recipient is not a curve point, and constrained mode has no fallback, so it panics.

What makes this worth writing down is step 3. Before the auditability change, the issuer received only an offchain copy of each note. Offchain delivery is unconstrained, so the same zero address took the else branch: a random secret, an undiscoverable tag, and a mint that succeeded while delivering the issuer’s copy to nobody.

The change that introduced constrained delivery did not create the bug. Before it, the mint completed and the issuer’s copy went nowhere; after it, the transaction reverts at simulation with the assertion above. It changed a wrong result into an error, in a code path nobody expected to be exercised, because nobody expected a mint during the first hour after deployment.

What generalises

Four points survive the specifics.

A delayed value has a dead window after deployment, and the contract is partly unusable inside it. If a constructor schedules rather than writes, everything reading that value sees the default until the delay elapses. That is a documented property of the mechanism; what is easy to miss is that it makes some entry points fail outright rather than merely read a stale value.
Two constants in a fixed relationship should be written as that relationship. LONG_TEST_TIMEOUT = 900_000 was correct for one value of a delay it did not mention. Deriving it costs nothing and removes an invariant from the list of things a human has to remember.
A best-effort path hides the bug that a guaranteed path reports. Unconstrained delivery’s fallback is a reasonable design: a malformed recipient should not abort an otherwise valid transaction. The cost is that a wrong address produces no error until something upgrades that delivery to a guaranteed one.
An unpinned transitive dependency is an unowned decision. Nothing in the project changed between the run that worked and the run that did not; a library eleven days younger than the framework did.

The last one also explains why the failure surfaced now rather than in the change that caused it. The suite had not been run since the delay was raised, because it took over an hour of wall-clock time, most of it a single sleep. A test that is expensive enough to skip is a test that stops reporting.

And that sleep turned out to be unnecessary, which is the sharpest lesson of the four. A local network’s L1 is an anvil instance, and the rollup exposes cheat codes that warp it: RollupCheatCodes.advanceToSlot moves L1 time and mines, an L2 slot derives from the L1 timestamp, and the clock a private function reads moves with it. One call clears a one-hour delay in seconds. The suite waited an hour not because the clock could not be moved, but because nobody had looked for the method that moves it, and a comment asserting the opposite was copied forward until it read as established fact.

Conclusion

The visible error named a cryptographic mechanism: a tagging secret that could not be resolved for a recipient the framework refused to encrypt to. That mechanism worked exactly as designed at every step. The defect was a test-harness constant that had been correct under a previous configuration, exposed by a delay change, and made fatal by an unrelated auditability change that replaced a best-effort fallback with a guarantee the address could not meet.

The dependency failure was independent and merely first: an unpinned transitive library, eleven days newer than the framework it serves, broke deployment before any contract logic ran.
The timeout was the defect, and the only one of the three that was ever wrong.
The delay change and the auditability change were both correct, and both are what turned a latent inconsistency into a hard failure.

Mindmap of an Aztec end-to-end debugging case, covering the tagging-secret symptom, the zod dependency pin, the timeout smaller than its sleep, the delayed issuer address, and the four lessons that generalise

Annex

Key Terms

Term	Definition
Note	An encrypted record holding private state, readable only by its owner, which a contract creates and later nullifies rather than updating.
Tagging secret	A value shared between sender and recipient from which the tag indexing an encrypted log is derived, so the recipient can find messages meant for it.
Constrained delivery	A delivery mode whose encryption is proved, guaranteeing the recipient can decrypt the message; the most expensive mode and the only one that cannot silently fail.
Unconstrained delivery	A delivery mode that trusts the sender to encrypt correctly and falls back to an undiscoverable tag rather than aborting when the recipient is unusable.
`DelayedPublicMutable`	A public state variable whose writes take effect only after a configured delay, which is what makes it readable from a private function.
Grumpkin	The elliptic curve Aztec addresses and keys live on, chosen because its arithmetic is native inside the proof system’s field.
Valid address	An address whose value is the x-coordinate of a real point on Grumpkin; roughly half of all field elements are not, and no shared secret can be derived for those.
Transitive dependency	A library a project does not import but receives through one of its dependencies, and whose version the project therefore does not choose unless it pins it.
`resolutions`	A package-manager field that forces a version of a package anywhere in the dependency tree, including copies the project never imports directly.
Cheat codes	Test-only methods a local network exposes for manipulating chain state, including warping L1 time so that a delay elapses without waiting.

Integration Notes

Behaviour	What an integrator should do
A constructor that schedules a delayed value leaves it at the type default until the delay elapses.	Treat the first delay after deployment as a window in which value-moving entry points are unavailable, and sequence deployment scripts accordingly.
Constrained delivery to an address that is not a curve point aborts the transaction.	Validate any configurable recipient address before it can reach a constrained delivery, rather than relying on the send to succeed.
Unconstrained and offchain delivery to the same invalid address succeed silently.	Do not infer from a successful send that a recipient received anything; a delivery guarantee exists only in constrained mode.
A test that waits out a real delay cannot be given a fixed timeout.	Move the chain’s clock instead, with the rollup’s cheat codes, and keep the wait only as a fallback for real networks; where a wait remains, derive the timeout from the delay constant.
Framework packages declare caret ranges on their own dependencies.	Pin the transitive versions that the framework release was built against, and re-check the pins when upgrading the framework.

Frequently Asked Questions

Q: Why does an invalid recipient abort a constrained delivery but not an unconstrained one?

Because the two modes promise different things. Constrained delivery proves the encryption, so the recipient is guaranteed to be able to decrypt the message. That guarantee cannot be met for an address with no curve point behind it, and emitting a tag nobody can compute while claiming the guarantee would be worse than failing.

Unconstrained delivery promises nothing about the recipient’s ability to read the message. Falling back to a random secret costs the sender nothing and avoids letting a malformed recipient abort an otherwise valid transaction.

Q: What makes an Aztec address “invalid” if it is just a number?

An address is the x-coordinate of a point on the Grumpkin curve. Recovering the point means solving y² = x³ − 17 for that x, which has a solution for roughly half of all field elements. An address derived from real account keys is always valid, because it was computed as the x-coordinate of a point that exists. An arbitrary number, including zero, usually is not.

Q: Was the change that introduced constrained delivery to the issuer a mistake?

No, and it is the reason the problem was found. Before it, the issuer’s copy of a mint went out unconstrained to the same zero address and hit the best-effort fallback, so the mint succeeded while the issuer received nothing it could process. The change replaced a silent wrong result with a visible error.

Q: Why did raising a delay from 360 seconds to one hour break a test that does not mention either number?

The test slept for the delay plus a small margin, under a hard-coded timeout of 900 seconds. At 360 seconds the sleep was 372 seconds and fitted comfortably. At 3,600 seconds it did not, and no machine or configuration could make it fit. The two constants had a required relationship that was never written down, so changing one of them silently invalidated the other.

Q: How could an unpinned dependency break a project whose own code did not change?

Five framework packages declare their dependency on the validation library as ^4, which permits any 4.x release. A resolution taken after a newer 4.x appeared installed a version published eleven days after the framework, containing a recursion check that overflows on a self-referential schema the framework uses. Nothing in the project changed; what changed was what ^4 meant on the day the dependencies were resolved.

Q: Would running the test suite more often have caught this earlier?

Yes, and that is the practical lesson. The suite waited out a real delay, so a full run took over an hour, most of it a single sleep. It was therefore skipped after the delay change, and a test that is expensive enough to skip stops reporting.

The better answer, though, is to remove the reason it was slow. The wait was avoidable: a local network’s L1 is anvil, and warping it through the rollup’s cheat codes clears a one-hour delay in seconds, so the suite now runs in minutes. Keeping the fast suite in continuous integration remains worthwhile, but a slow test is worth interrogating before it is scheduled around.

References

Analyzed source

CMTA/private-CMTAT-aztec — the token and the test suite described here, analyzed at commit cb6111a87f21317c6d3ab226edb80d8b297e4923, 2026-09-23. The quoted storage declaration and constructor are in contracts/cmtat-aztec/src/main.nr; the test constants are in src/test/e2e/index.test.ts.
AztecProtocol/aztec-nr — framework sources read at tag v5.2.0, 2026-09-23. The assertion is in aztec/src/oracle/resolve_tagging_strategy.nr; the address validity check is in the protocol-circuit types, address/aztec_address.nr.

Documentation and libraries

Aztec developer documentation — note delivery, delayed public mutable state and the tagging-based discovery scheme.
zod — the schema-validation library, and its version history on npm.

Feel free to contact me on

# aztec # testing # debugging # noir # privacy # smart-contracts

You might also enjoy

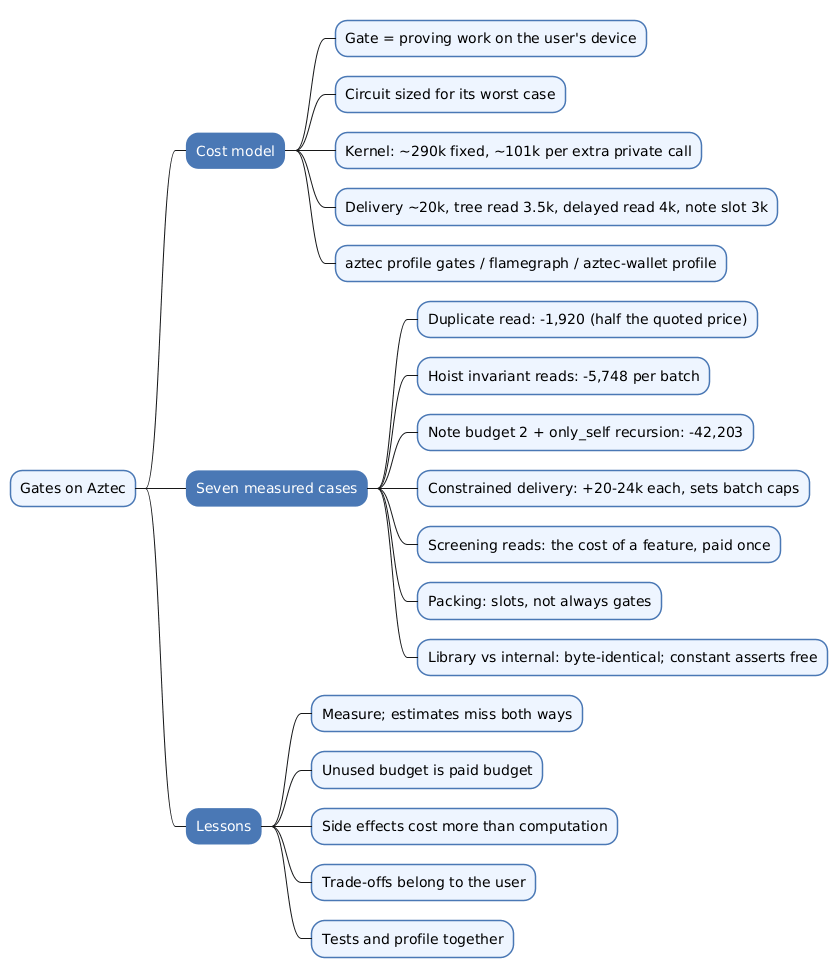

Gates on Aztec — What a Private Function Costs, Where the Cost Hides, and Seven Measured Ways to Lower It
