ISO 20022 for Reference Data — The reda Message Set
- What reda is for
- The families of reda
- The create-maintain-query-report pattern
- Two notable families
- Conclusion
- Annex — Key Terms
- Frequently Asked Questions
- References
Every transaction relies on data that does not change with the transaction: what a security is, who a party is, which account it settles to, where to send the cash. This is reference data, the static backdrop against which the moving parts operate, and ISO 20022 gives it a business area, reda. It is a large and varied area, sixty-three messages, because reference data covers many domains. This article organises them into families, describes the create-maintain-query-report pattern they share, and shows why getting reference data right underpins everything else.
This article has been made with the help of Claude Code and several custom skills
[TOC]
What reda is for
reda carries the static data that transactions depend on. A settlement instruction names a security, an account, and a set of parties; a payment names a creditor and where to route it. None of that information is created by the transaction; it is looked up. Reference data is the authoritative record of those entities, and reda is how it is created, changed, queried, and distributed between the parties that maintain it and the parties that consume it.
The value of a standard here is a single source of truth. When many participants must agree on what an instrument is or where a counterparty settles, a shared, structured record prevents the mismatches that cause failed transactions.

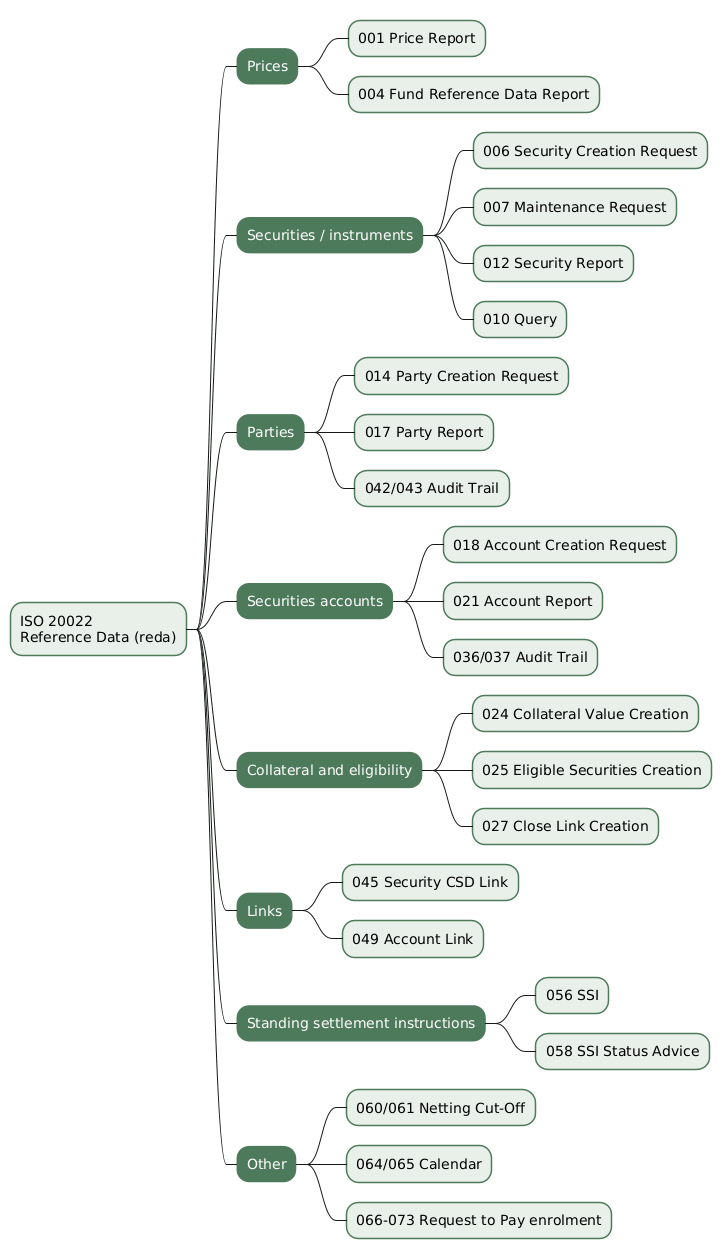

The families of reda
The sixty-three messages group by the kind of reference data they manage.
| Family | Representative messages | What it covers |
|---|---|---|
| Prices | reda.001, reda.004 |
Security and fund prices |
| Securities | reda.006, reda.007, reda.012 |
Instrument reference data |
| Parties | reda.014, reda.017, reda.022 |
Party (entity) reference data |
| Securities accounts | reda.018, reda.021, reda.023 |
Account reference data |
| Collateral and eligibility | reda.024, reda.025, reda.027 |
Collateral values and eligibility |
| Links | reda.045, reda.049 |
CSD and account links |
| Standing settlement instructions | reda.056 to reda.059 |
Where a party settles |
| Netting and calendars | reda.060, reda.064 |
Cut-offs and business calendars |
| Request to pay enrolment | reda.066 to reda.073 |
Creditor enrolment and debtor activation |
The securities, party, and securities account families form the core, and are the static-data backbone of a settlement system such as a central securities depository. The collateral and eligibility, links, and standing settlement instruction families support settlement and collateral operations. The remaining families, prices, calendars, netting cut-offs, and request-to-pay enrolment, cover more specific reference needs.

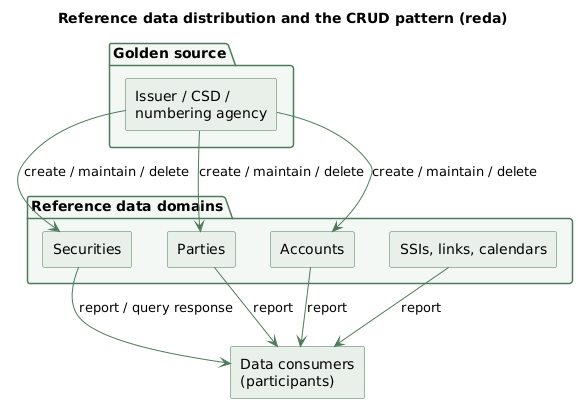

The create-maintain-query-report pattern
Most reda families follow the same lifecycle for a piece of reference data, built from a small set of verbs.

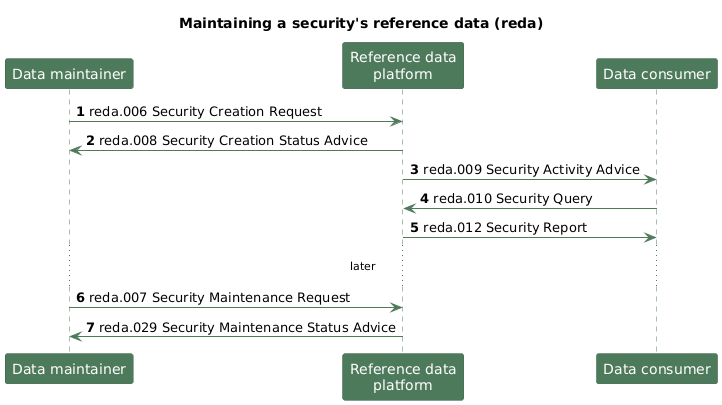

Taking securities as the example: a maintainer creates the instrument with a reda.006 SecurityCreationRequest and receives a reda.008 SecurityCreationStatusAdvice; consumers are told of the change through a reda.009 SecurityActivityAdvice; a consumer that needs the current record sends a reda.010 SecurityQuery and receives a reda.012 SecurityReport; and later changes are made with a reda.007 SecurityMaintenanceRequest and a reda.029 status advice, or removed with a reda.013 deletion request. The party and account families mirror this shape with their own create, modify, delete, query, report, and activity messages, and both add audit-trail queries and reports (reda.033, reda.036, reda.042) so a full history of changes can be retrieved. This uniform create-maintain-query-report pattern is what makes a large area navigable: learn it once and it applies across the domains.
Two notable families
Two families are worth singling out because they reach beyond the securities world.
Standing settlement instructions. A standing settlement instruction (SSI) records, in advance, where a party wants a given kind of transaction settled: the accounts and agents for its cash and securities. The reda.056 StandingSettlementInstruction, with its deletion, cancellation, and status-advice companions, is how SSIs are published and maintained, so that a counterparty always knows where to deliver without asking each time.
Request to pay enrolment. The reda.066 to reda.073 messages support request-to-pay schemes, in which a payee asks a payer to authorise a payment. They handle the reference-data setup of that service: enrolling a creditor (reda.066) and activating a debtor (reda.070), with amendment, cancellation, and status messages. It is an example of reference data underpinning a payment service rather than a securities one.
Conclusion
The reda business area manages the static data that transactions rely on. Its sixty-three messages cover securities, parties, and accounts at the core, extended by collateral eligibility, CSD and account links, standing settlement instructions, prices, calendars, netting cut-offs, and request-to-pay enrolment. Most follow one create-maintain-query-report pattern, with activity advices and audit trails, so a single lifecycle applies across many domains. Because it is the source of truth the moving parts look up, reda is quietly foundational: a settlement instruction, a collateral movement, or a payment is only as correct as the reference data behind it. Read next to the settlement and collateral areas that consume it, reda is where the standard keeps its facts.
Annex — Key Terms
| Term | Definition |
|---|---|
| reda | The ISO 20022 reference data business area, managing the static data behind transactions across sixty-three messages. |
| Reference data | The static, authoritative data that transactions look up rather than create, such as instruments, parties, and accounts. |
| Security reference data | The instrument data (identifiers, terms) created and maintained through reda.006, reda.007, and reported by reda.012. |
| Party reference data | The entity data for counterparties and institutions, managed through the reda.014 family. |
| Securities account reference data | The account data managed through the reda.018 family. |
| Standing settlement instruction (SSI) | A pre-recorded instruction (reda.056) stating where a party settles a given kind of transaction. |
| Create-maintain-query-report | The common lifecycle pattern: create a record, maintain it, query the current state, and report it, with activity advices and audit trails. |
| Audit trail | The retrievable history of changes to a reference-data record, via queries and reports such as reda.033 and reda.042. |
| Calendar | The business-calendar reference data managed by reda.064 and reda.065. |
| Request to pay enrolment | The reference-data setup of a request-to-pay service, enrolling creditors and activating debtors through reda.066 to reda.073. |
Frequently Asked Questions
Q: What is reference data, and why does it need its own area?
Reference data is the static, authoritative information that transactions rely on but do not create: what a security is, who a counterparty is, which account it uses, where its cash and securities settle. A transaction looks this up rather than carrying it fresh each time. It needs its own area because keeping that data correct and shared is a distinct job from processing transactions, and because many participants must agree on the same facts. reda provides the messages to create, maintain, query, and distribute reference data so that everyone works from the same record.
Q: What is the create-maintain-query-report pattern?
It is the common lifecycle most reda families follow for a piece of reference data. A maintainer creates the record (for a security, reda.006) and gets a status advice; consumers are notified through an activity advice; a consumer queries the current state (reda.010) and receives a report (reda.012); and later the record is maintained (reda.007) or deleted (reda.013). The party and account families repeat this shape with their own messages. Because the pattern is uniform, understanding it once lets you navigate the whole area rather than learning each family from scratch.
Q: What is a standing settlement instruction, and why publish it as reference data?
A standing settlement instruction (SSI) records in advance where a party wants a given kind of transaction settled: the cash and securities accounts and agents to use. Publishing it as reference data, through reda.056 and its companions, means a counterparty can look up where to deliver without asking each time a trade is done. This avoids errors and delays: instead of exchanging settlement details per transaction, parties rely on a maintained, authoritative SSI record. It is a good example of reference data preventing the mismatches that cause settlement fails.
Q: Why do the party and account families include audit-trail messages?
Because changes to reference data have consequences, and who changed what, and when, must be reconstructable. The audit-trail queries and reports (such as reda.033 for securities and reda.042 for parties) let a participant retrieve the full history of changes to a record. This matters for control and for investigating problems: if a settlement failed because an account detail was wrong, the audit trail shows when and how that detail changed. Reference data is authoritative, so its history has to be auditable.
Q: Why does a reference-data area include request-to-pay enrolment?
Because a request-to-pay service, in which a payee asks a payer to approve a payment, needs its participants and their preferences set up in advance, and that setup is reference data. The reda.066 to reda.073 messages enrol a creditor and activate a debtor, with amendment, cancellation, and status messages. It sits in reda because it is about establishing the static enrolment behind the service rather than processing individual payment requests. It shows that reference data underpins payment services as much as securities ones.
