Every time a card is tapped, the approval that comes back a second later has travelled from the merchant’s acquirer to the cardholder’s issuer and back. For decades that conversation has been carried by ISO 8583, the long-established card-message standard behind most of the world’s payment terminals. ISO 20022 offers a modern replacement for the acquirer-to-issuer legs in its cain business area. This article walks through the nineteen cain messages, the request-and-response pairs they form, and the transaction and dispute lifecycle they express, from authorisation through clearing to chargeback.
This article has been made with the help of Claude Code and several custom skills
[TOC]
Where cain sits

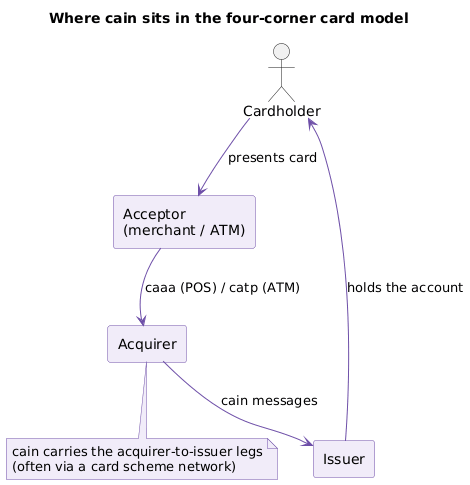

Card payments are usually drawn as four corners: the cardholder, the acceptor (a merchant terminal or an ATM), the acquirer, and the issuer. ISO 20022 splits the card rails by leg. The acceptor-to-acquirer leg (the terminal talking to its acquirer) is the caaa area; the ATM protocol is catp; and the acquirer-to-issuer leg, the interbank heart of a card transaction, is cain.
That positioning is what makes cain the ISO 20022 counterpart to ISO 8583. ISO 8583 has long carried the acquirer-to-issuer messages, its familiar 0100 authorisation and 0200 financial message types routed across scheme networks. cain expresses the same interactions in ISO 20022’s dictionary and XML syntax, with richer, explicitly typed data in place of ISO 8583’s numbered bitmap fields. The traffic still usually flows across a card scheme network that connects the two institutions.
The message shape
Every cain message shares the card family’s structure. Taking the authorisation initiation (cain.001), the body opens with a header and then a set of typed blocks describing the transaction.
- Header (
Hdr, typeHeader72) carries the message function (MsgFctn) and the routing and versioning data common to the card messages. - Transaction characteristics (
TxChrtcs) describe the kind of transaction being performed. - Acquirer data (
Acqrr), a transaction identification (TxId), and transaction amounts (TxAmts) identify who is asking, which transaction it is, and for how much. - Context (
Cntxt) carries the surrounding detail: the card, the environment, and the point of interaction.
As with the rest of the card family, the sensitive elements are protected. The primary account number, PIN data, and track or chip data are carried in encrypted form, and messages are authenticated, because this traffic crosses networks between institutions and must assume an untrusted path. The keys behind that protection are managed outside the transaction messages.
The cain message catalogue
The nineteen messages are almost all initiation-and-response pairs, one message to ask and one to answer, with a single standalone amendment. They group by the stage of the card lifecycle they serve.
| Identifier | Message | Group |
|---|---|---|
cain.001 |
AuthorisationInitiation | Authorisation |
cain.002 |
AuthorisationResponse | Authorisation |
cain.003 |
FinancialInitiation | Clearing |
cain.004 |
FinancialResponse | Clearing |
cain.005 |
ReversalInitiation | Reversal |
cain.006 |
ReversalResponse | Reversal |
cain.021 |
RetrievalInitiation | Dispute |
cain.022 |
RetrievalResponse | Dispute |
cain.014 |
RetrievalFulfilmentInitiation | Dispute |
cain.015 |
RetrievalFulfilmentResponse | Dispute |
cain.027 |
ChargeBackInitiation | Dispute |
cain.028 |
ChargeBackResponse | Dispute |
cain.016 |
InquiryVerificationInitiation | Verification |
cain.017 |
InquiryVerificationResponse | Verification |
cain.025 |
AddendumInitiation | Supplementary |
cain.026 |
AddendumResponse | Supplementary |
cain.023 |
CardManagementInitiation | Card management |
cain.024 |
CardManagementResponse | Card management |
cain.020 |
Amendment | Correction |

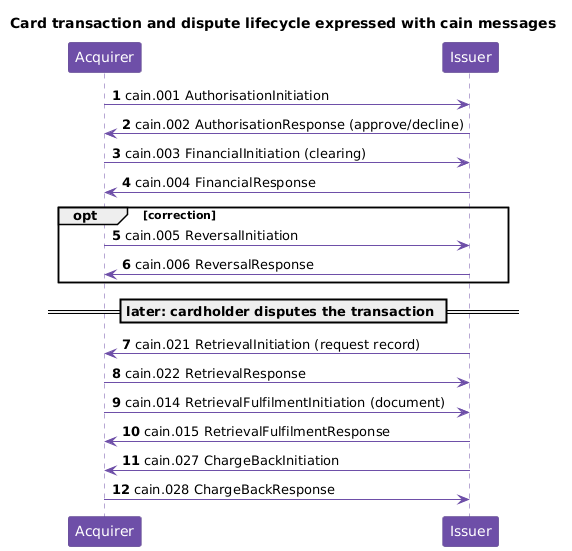

The transaction and dispute lifecycle
The messages make most sense read in the order a transaction moves through them.
Authorisation. The acquirer asks the issuer to approve a transaction with a cain.001 AuthorisationInitiation, and the issuer approves or declines in a cain.002 AuthorisationResponse. This is the real-time step the cardholder waits for at the terminal, and it reserves funds without yet moving them.
Clearing. The money actually moves at clearing, carried by the cain.003 FinancialInitiation and cain.004 FinancialResponse. Depending on the flow, a financial message either completes a previously authorised transaction or, for some transaction types, both authorises and clears in one step.
Reversal. When an authorised or cleared transaction must be undone, for example because the terminal timed out or the amount was wrong, a cain.005 ReversalInitiation and cain.006 ReversalResponse reverse it.
Disputes. The distinctive part of the acquirer-to-issuer relationship is what happens when a cardholder disputes a charge, and cain gives it a full set of messages. The issuer can ask the acquirer for the record of a transaction with a cain.021 RetrievalInitiation, answered by cain.022, and the acquirer supplies the supporting document, such as a copy of the receipt, through the cain.014 RetrievalFulfilmentInitiation and cain.015 response. If the dispute stands, the issuer pushes the transaction back to the acquirer with a cain.027 ChargeBackInitiation, answered by cain.028. Together these express the retrieval-then-chargeback path that resolves cardholder disputes.
Verification, addenda, and management. Three smaller pairs round out the area. Inquiry verification (cain.016 / cain.017) checks a card or account without moving money, the mechanism behind an account-status or address check. Addendum messages (cain.025 / cain.026) attach supplementary data to a transaction, such as the itemised detail a hotel or car-rental transaction carries. Card management (cain.023 / cain.024) exchanges card lifecycle actions between the acquirer and issuer domains. Finally, the standalone cain.020 Amendment corrects data in a previously sent message.
Conclusion

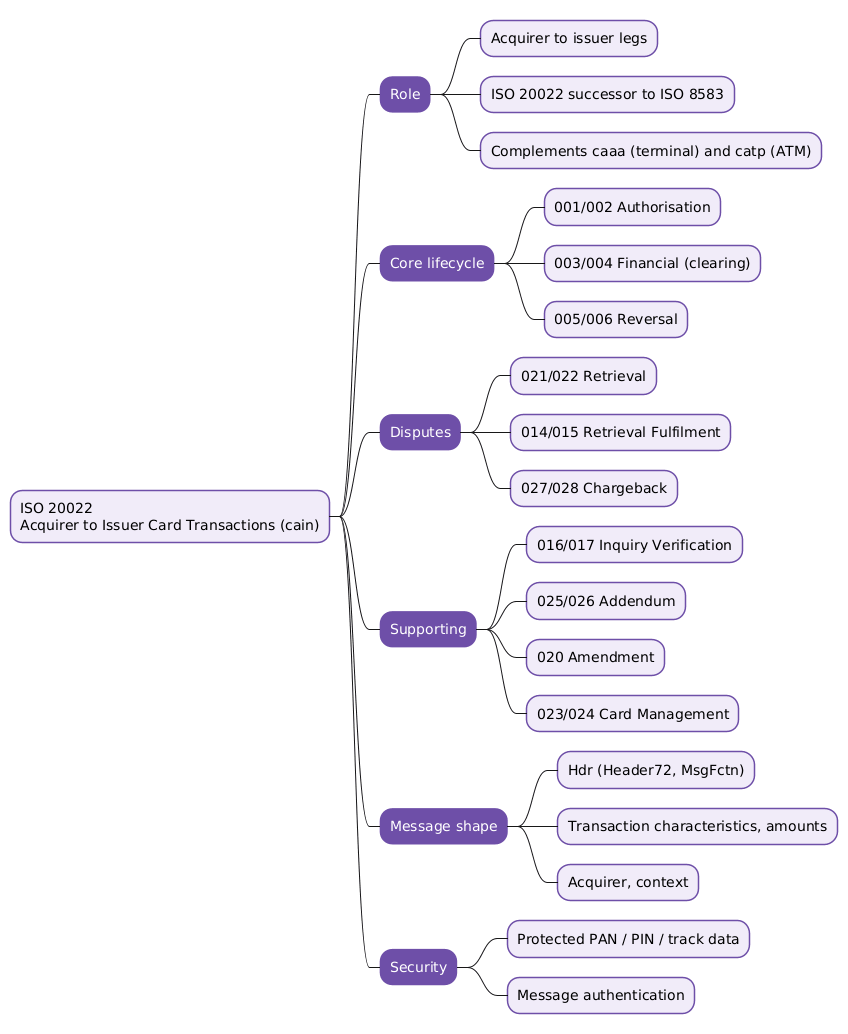

The cain business area brings the acquirer-to-issuer card conversation into ISO 20022. Its nineteen messages, almost all initiation-and-response pairs, trace the full arc of a card transaction: authorise it, clear it, reverse it if needed, and, when a cardholder disputes it, retrieve the record and charge it back. Alongside sit verification, addenda, card management, and a general amendment. Every message uses the card family’s header and protects its sensitive data, because the traffic crosses networks between institutions. As the ISO 20022 successor to ISO 8583 for the interbank card legs, cain is where the card standard meets the payment rails that most of the world already runs on, and it completes the card picture next to the terminal area caaa, the ATM area catp, and the fraud area cafr.
Annex — Key Terms
| Term | Definition |
|---|---|
| cain | The ISO 20022 business area for acquirer-to-issuer card transactions, comprising the nineteen messages listed as cain.001 to cain.028. |
| ISO 8583 | The long-established card-message standard for the acquirer-to-issuer legs, which cain modernises in ISO 20022 syntax. |
| Acquirer | The institution that serves the merchant or acceptor and sends transactions toward the issuer. |
| Issuer | The institution that issued the card, holds the cardholder’s account, and authorises or declines transactions. |
| Authorisation | The real-time approval step, carried by cain.001 and cain.002, that reserves funds without moving them. |
| Clearing (financial) | The step that actually moves the money, carried by the cain.003 and cain.004 financial messages. |
| Reversal | The undoing of an authorised or cleared transaction, carried by cain.005 and cain.006. |
| Retrieval | The request for the record of a transaction during a dispute (cain.021/cain.022), fulfilled by cain.014/cain.015. |
| Chargeback | The return of a disputed transaction from the issuer to the acquirer, carried by cain.027 and cain.028. |
Message function (MsgFctn) |
A header field identifying what a message does, letting a receiver dispatch it without inspecting the whole body. |
Frequently Asked Questions
Q: How does cain relate to ISO 8583?
cain is the ISO 20022 successor to ISO 8583 for the acquirer-to-issuer legs of a card transaction. ISO 8583 has carried authorisation and financial messages between acquirers and issuers for decades using numbered bitmap fields. cain expresses the same interactions, authorisation, clearing, reversal, and disputes, in ISO 20022’s dictionary and XML syntax, with explicitly typed, structured data in place of the older positional fields. The traffic still typically crosses a card scheme network, but the message format is the modern standard.
Q: What is the difference between an authorisation and a financial message?
Authorisation reserves funds in real time; a financial (clearing) message moves them. When a card is presented, the cain.001 AuthorisationInitiation asks the issuer to approve the amount, and the cain.002 AuthorisationResponse approves or declines, all while the cardholder waits. No money has moved yet. The cain.003 FinancialInitiation and cain.004 FinancialResponse handle the actual transfer at clearing, either completing a previously authorised transaction or, for some transaction types, authorising and clearing in a single step.
Q: How do the dispute messages work together?
They form a retrieval-then-chargeback path. When a cardholder disputes a charge, the issuer first asks the acquirer for the transaction record with a cain.021 RetrievalInitiation, answered by cain.022. The acquirer then supplies the supporting document, such as a receipt copy, through the cain.014 RetrievalFulfilmentInitiation and its cain.015 response. If the dispute is upheld, the issuer returns the transaction to the acquirer with a cain.027 ChargeBackInitiation, answered by cain.028. The sequence lets the parties gather evidence before money is moved back, which is central to how card disputes are resolved.
Q: Why are almost all cain messages initiation-and-response pairs?
Because each step of the acquirer-to-issuer conversation is a request that needs an answer: authorise this, clear this, reverse this, retrieve this, charge this back. Pairing an initiation with a response gives every action a definite outcome the sender can act on, and it keeps the protocol symmetric and easy to reason about. The one exception is the cain.020 Amendment, which corrects data in a previously sent message rather than requesting a new action, so it stands alone.
Q: How does cain fit with the other ISO 20022 card areas?
They divide the card rails by leg and purpose. caaa carries the acceptor-to-acquirer leg (the merchant terminal talking to its acquirer), catp is the ATM protocol, and cain carries the acquirer-to-issuer leg between the two institutions. The fraud area cafr then moves fraud information about those transactions between the parties. A single card payment can therefore start as a caaa exchange at the terminal, travel as a cain authorisation and clearing between acquirer and issuer, and, if it turns out to be fraudulent, be reported later through cafr.
Q: What protects the sensitive data in a cain message?
The card family’s data-protection model. Because cain messages carry the primary account number, PIN data, and track or chip data across networks between institutions, those sensitive elements are carried in encrypted form rather than in the clear, and messages are authenticated so a receiver can trust their origin. The cryptographic keys that make this work are provisioned and rotated outside the transaction messages themselves. The protection matters precisely because this is interbank traffic on an untrusted path, exactly the threat model card networks are built to withstand.
