A hardware wallet is one of the most trusted tools for safeguarding cryptocurrencies yourself (self-custodial), providing robust security by keeping your private keys offline and away from online threats, reducing the risk of hacking and malware.
Among the most popular and trusted hardware wallets for storing digital assets securely is Trezor, a product developed by SatoshiLabs, Czech technology holding.
Trezor offers several different models, —Trezor One and Trezor Model T for example—each designed to provide users with several functionalities to protect its assets.
This article explores the key security features of Trezor wallets, the cryptographic algorithms they utilize, how they protect the seed phrase and the private keys. This article was partly produced to prepare a talk on the security of Crypto wallets at Black Alps 2024.
Firstly, here is a summary of the different options related to security available depending on the models.
| Model | Seed phrase backup | Device Security | Trezor as an authentication device | |||||
|---|---|---|---|---|---|---|---|---|
| 12-, 20- & 24-word wallet backup | Multi Share | Pin & passphrase protection | On device entry | Authentication with MicroSD card support | Secure element protected Certified Chip EAL6+ |
Two-factor authentication (U2F) | FIDO2 Standard | |
| Trezor Model One | ☑ | ☒ | ☑ | ☒ | ☒ | ☒ | ☑ | ☒ |
| Trezor Model T | ☑ | ☑ | ☑ | ☑ | ☑ | ☒ | ☑ | ☑ |
| Trezor Safe 3 | ☑ | ☑ | ☑ | ☑ | ☒ | ☑ | ☑ | ☑ |
| Trezor Safe 5 | ☑ | ☑ | ☑ | ☑ | ☑ | ☑ | ☑ | ☑ |
See also trezor.io/compare
[TOC]
Core Security Features of Trezor Wallets
1. Offline Private Key Storage
Trezor provides an offline storage of private keys. Since Trezor is a hardware wallet, your private keys never leave the device, ensuring that they are not exposed to the internet. This air-gapped design protects against hacking attempts, phishing attacks, and malware, which are common on internet-connected (hot) wallets.
2. PIN Protection
Every Trezor wallet requires a PIN code to access the device. This PIN is set by the user during initialization and is a critical layer of protection against unauthorized physical access. The PIN entry process is randomized on the Trezor screen, making it resistant to keylogging or screen capture attacks that can occur on compromised computers.
References: trezor - PIN protection on Trezor devices , Trezor suite protection against keyloggers?
3. Passphrase Support
In addition to a PIN, Trezor provides the option to add an additional layer of security in the form of a passphrase. This passphrase essentially acts as a 25th word added to the standard 24-word recovery seed.
A passphrase has two main purposes:
- Even if someone gains access to the recovery seed, without knowing the passphrase, they will not be able to recover the wallet.
- Add your own entropy: even if there is a vulnerability in the random generation by the wallet, it will not be possible to recover the wallet without the passphrase.
The wallet obtained by adding a passphrase is called a hidden wallet
\(\begin{aligned}
recovery~seed + passphrase = hidden~ wallet
\end{aligned}\)
Reference: Trezor - Passphrases and hidden wallets
4. Recovery Seed
When you initialize your Trezor wallet, you are provided with a recovery seed, which is a randomly generated 12-24 word phrase. This seed allows you to restore your wallet in case the device is lost or damaged. The seed is generated offline, and the user must write it down in a secure place, as it is the only way to recover the funds. Trezor implements a BIP-39 mnemonic phrase standard for this recovery seed.
References: Trezor - How to use a recovery seed
5. Firmware Updates
Trezor regularly releases firmware updates to fix bugs, patch vulnerabilities, and add new features. In case of a compromission of the Trezor architecture, a malicious firmware update could have a disastrous result and compromise your funds.
There are several protections put in place by Trezor to avoid a malicious update:
- These updates require user confirmation via the device’s screen, preventing unauthorized or malicious firmware installations.
- The firmware is also signed by SatoshiLabs, ensuring the authenticity of the update before installation.
- Downgrading the firmware, which could be used to install a vulnerable version of Trezor, erases the memory as a result.
Reference: Security & safety in Trezor
Trezor’s encryption Key terms
This section is based on the following resource: PIN verification and decryption of protected entries in flash storage
Schema
Data encryption Diagram
What happens when the user chooses a new PIN?

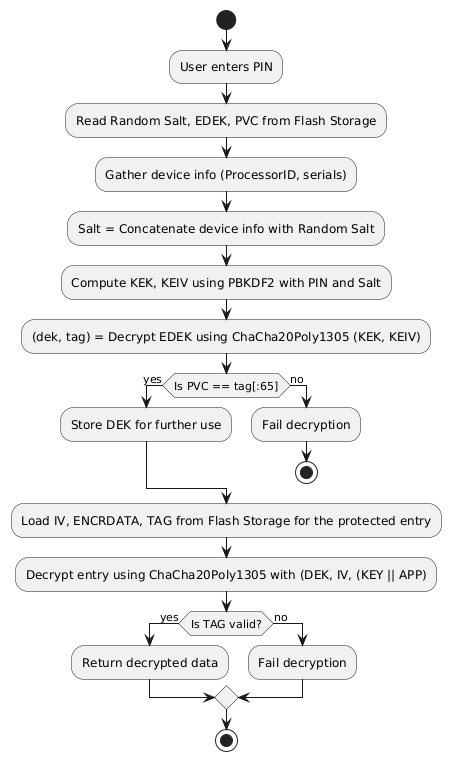

Activity diagram
What happens when the user enters their PIN?
Main Cryptography algorithm
PBKDF2 (Password-Based Key Derivation Function 2) with HMAC
PBKDF2 is a cryptographic key derivation function, which is resistant to dictionary attacks and rainbow table attacks by using a salt.
In summary,it is a key derivation function that uses a password (in this case, the PIN), a salt (a random value), and multiple iterations of a cryptographic hash function (e.g HMAC) to generate a derived key.
- It is described in the Internet standard RFC 2898 (PKCS #5).
- Purpose in Trezor: It is used to transform the user’s PIN into a strong cryptographic key (in this case, the KEK and KEIV). The function also incorporates a salt to prevent precomputed attacks (such as rainbow tables).
- How it works: PBKDF2 uses the user’s PIN as input and combines it with a salt derived from hardware identifiers (e.g., ProcessorID) and the random salt from flash storage. It runs the hash function (HMAC-SHA256) for 10,000 iterations (or more), producing 352 bits of output: the first 256 bits become the KEK and the last 96 bits form the KEIV.
See cryptobook.nakov.com - pbkdf2
HMAC-SHA256
Here are some supplementary details about HMAC used by PBKDF2.
HMAC stands for Hash-based Message Authentication Code
To derive the Encryption Key (KEK), Trezor uses PBKDf2 with HMAC-SHA512 to make brute-force attacks more difficult.
HMAC adds an extra layer of security when handling cryptographic keys, making it harder for attackers to recover the seed phrase or private keys from device data (brute-force attack).
To obtain that, the HMAC process mixes a secret key, in the case of trezor, the salt, with the message data and hashes the result.
See datatracker.ietf.org/doc/html/rfc4868#page-3, Microsoft - HMACSHA512 Class
ChaCha20-Poly1305
ChaCha20-Poly1305 provides both encryption by using the stream cipher ChaCha20 and authentication with Poly1305 as message authentication code (MAC) in a single operation. The resulting algorithm is called an Authenticated Encryption with Additional Data cipher (AEAD)
- It is defined in RFC 7539 section 2.8.
-
This combination offers strong integrity guarantees.
- Purpose: It is used to encrypt and decrypt data securely, ensuring both confidentiality and integrity of the data. In Trezor, it is used to encrypt the EDEK and the protected entries stored in the flash.
- How it works:
- ChaCha20 is the encryption part, which transforms plaintext data into ciphertext using a key (e.g., KEK or DEK) and an IV (like the KEIV or entry IV).
- Poly1305 is the authentication part, which generates a tag (a type of checksum) that ensures the data hasn’t been tampered with. The tag is checked during decryption to verify the data’s integrity.
- ChaCha20-Poly1305 ensures that even if an attacker modifies the encrypted data or its associated metadata (like the IV), the decryption process will fail due to a tag mismatch.
See cryptography - AEAD, cloudflare - chacha0Poly1305 and Wikipedia - ChaCha20-Poly1305, Proton - ChaCha20
Keys and PVC
Here’s an explanation of the different keys used in Trezor’s encryption and PIN verification process
Trezor Storage
These elements are stored on the Trezor storage.
(E)DEK (Data Encryption Key)
The DEK is the actual key used to encrypt and decrypt protected data stored in flash storage.
- Purpose: The DEK protects sensitive data entries in the device’s flash memory. It is derived by decrypting the EDEK with the KEK and KEIV.
- How it works: The DEK is used to encrypt and decrypt specific entries (e.g., secrets, settings) in the storage. Without the correct DEK, these entries cannot be read or tampered with.
(E)SAK (Storage authentication key)
The storage authentication key (SAK) is used to authenticate the list of (APP, KEY) values for all protected entries that have been set in the storage. This prevents an attacker from erasing or adding entries to the storage.
-
The key is encrypted with the key derived from the user’s pin
-
This key is stored encrypted in the storage.
PVC (PIN Verification Code)
The PVC is a 64-bit code stored in the flash memory and used to verify if the correct PIN was used during decryption.
- Purpose: It serves as a verification mechanism to ensure the PIN entered by the user is correct. After the EDEK is decrypted, the PVC is compared with a tag value derived during the decryption process.
- How it works: If the PVC matches the computed tag, it confirms that the decryption was performed using the correct PIN. If the PVC doesn’t match, the decryption fails, indicating an incorrect PIN.
- Remark from the Trezor documentation: The 64-bit PVC means that there is less than a 1 in 1019 chance that a wrong PIN will happen to have the same PVC as the correct PIN. The existence of false PINs does not pose a security weakness since a false PIN cannot be used to decrypt the protected entries.
Compute
KEK (Key Encryption Key)
The KEK is a 256-bit key derived from the user’s PIN and a salt using the PBKDF2 algorithm. \(\begin{aligned} KEK || KEIV = PBKDF2(PRF = HMAC-SHA256, Password = pin, Salt = salt, iterations = 10000, dkLen = 352 bits) \end{aligned}\)
The KEK is used to decrypt the Encrypted Data Encryption Key (EDEK), allowing access to the actual Data Encryption Key (DEK).
- How it works: The KEK is part of a layered security approach: instead of encrypting data directly with the PIN, Trezor derives the KEK from the PIN to ensure additional protection. This is notably useful against fault injection attacks.
- This means an attacker would need the KEK, derived from a valid PIN, to access the encrypted key (EDEK).
KEIV (Key Encryption Initialization Vector)
The KEIV is a 96-bit value derived alongside the KEK using the PBKDF2 algorithm.
- Purpose: It is used as an initialization vector (IV) for the encryption algorithm ChaCha20Poly1305, which helps ensure that even if the same key (KEK) is reused, the output will be different by combining it with the KEIV.
- How it works: The KEIV ensures that the encryption process is randomized and secure, so that identical data encrypted with the same key will result in different ciphertexts.
Summary of the Workflow:
- PIN with salt → PBKDF2 → Produces KEK and KEIV.
- KEK + KEIV → ChaCha20Poly1305 to decrypt EDEK → Produces DEK.
- DEK is used for encrypting and decrypting sensitive data entries in flash storage.
- PVC verifies whether the correct PIN was used for the entire process.
Backup
BIP-32, BIP-39, and BIP-44 Standards
To make backup and restoration on a new wallet easier, Trezor implements several known standards. They are also at the origin of some of them (BIP-39 & BIP-44)
- BIP-32: Enables the creation of hierarchical deterministic (HD) wallets, which allow users to derive multiple private and public keys from a single seed.
- BIP-39: Governs the creation of mnemonic seed phrases for easy wallet backups.
- BIP-44: Allows for managing multiple cryptocurrency accounts from a single seed phrase, ensuring compatibility across different blockchain networks.
The derivation path used in BIP44 follows this structure:
` m / purpose’ / coin_type’ / account’ / change / address_index`
Thanks to address_index, you can have several different addresses for the same account, which is not possible with Ethereum
To understand how an address is generated in bitcoin you can read my article: Bitcoin Keys 101 - From seed phrase to address
Multi-share Backup
To perform a multi-share backup, SatoshiLabs has written its own proposal SLIP39 to implement a multi-share backup with Shamir’s Secret-Sharing
SLIP39 is a multi-party alternative to Bitcoin Improvement Proposal BIP39.
This advanced backup method splits your wallet backup (recovery seed) into multiple parts, called shares, and requires a minimum number of these, the threshold, to restore the wallet.
By distributing these shares between different locations and/or trusted individuals, you can reduce the risk of total loss or theft.
=> Even if some shares are lost, your wallet remains secure as long as the threshold number of shares is intact.
=> Moreover, if some shares fall into the wrong hands, your wallet is still secure as long as less than the threshold number of shares are compromised.
You can find more information about Shamir’s Secret Sharing in my article MPC - Shamir Secret-Sharing
Main reference: Trezor - Slip39
Model specificity
This section describes the specific features of certain models
On-Device entry
The Trezor Model One uses a blind matrix for PIN entry – when required, a matrix of dots (instead of numbers) appears on your computer screen
Contrary to the Trezor model One, the PIN for model 3, 5 and T is directly entered by tapping on the touchscreen of your Trezor Model
Here some images from the Trezor website to compare:

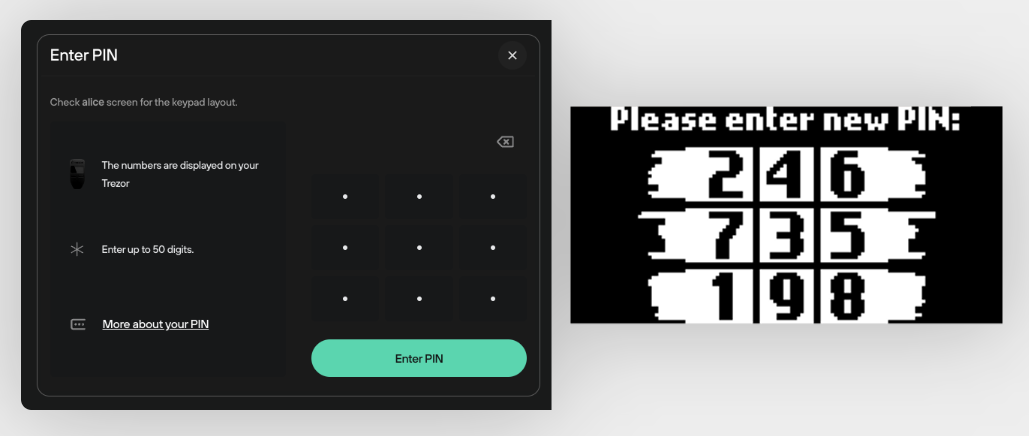

- Model One

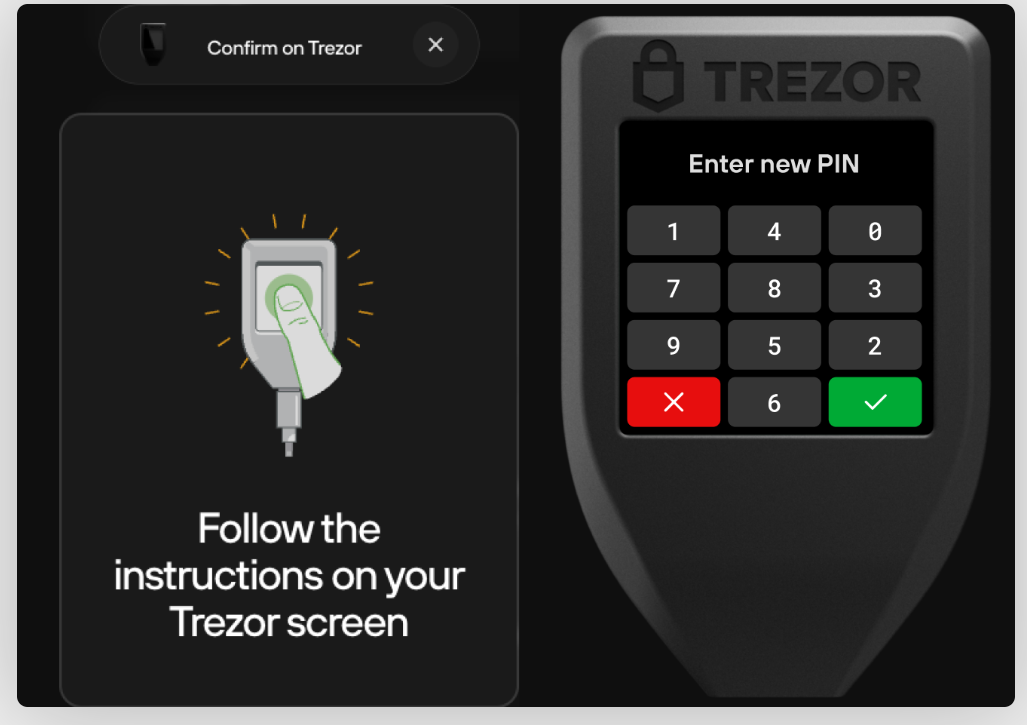

- Model T
Reference: Trezor - PIN protection on Trezor devices
Chips and Secure Element
The Trezor Safe 5 and Safe 3 reinforce the security by using a Secure Element, certified CC EAL6+.
About the chips
The chips used is the OPTIGA™ Trust M (V3) sold by Infineon. This chip consists of both:
- an Integrated Circuit (the chip proper, made out of silicon-based transistors),
- and fixed, un-updateable software, programmed onto the chip by Infineon in their production lines
Contrary to the firmware, the code is not open source, but the producer does not restrict Trezor from freely publishing potential vulnerabilities.
Reference: Ledger - WHY SECURE ELEMENTS MAKE A CRUCIAL DIFFERENCE TO HARDWARE WALLET SECURITY
Why a Secure Elements improves the security ?
According to Ledger Donjon Team, a Secure Element is designed to be resistant against physical attack (e.g fault injection attack) which is not the case of a regular microcontroller, used by models Trezore One and Trezor T.
About the certification
A chips EAL-6 means that the chips has been Semiformally Verified Design and Tested. Additional Security Considerations.
Compared to EAL-5 certification, this certification requires:
- more comprehensive analysis,
- a structured representation of the implementation,
- more architectural structure (e.g. layering),
- more comprehensive independent vulnerability analysis
- and improved configuration management and development environment controls.
More information on the Trezor website Secure Element in Trezor Safe Devices
Reference: commoncriteriaportal.org, p.22, web archive - CESG.gov.uk
See also Ledger - What is Security Certification?

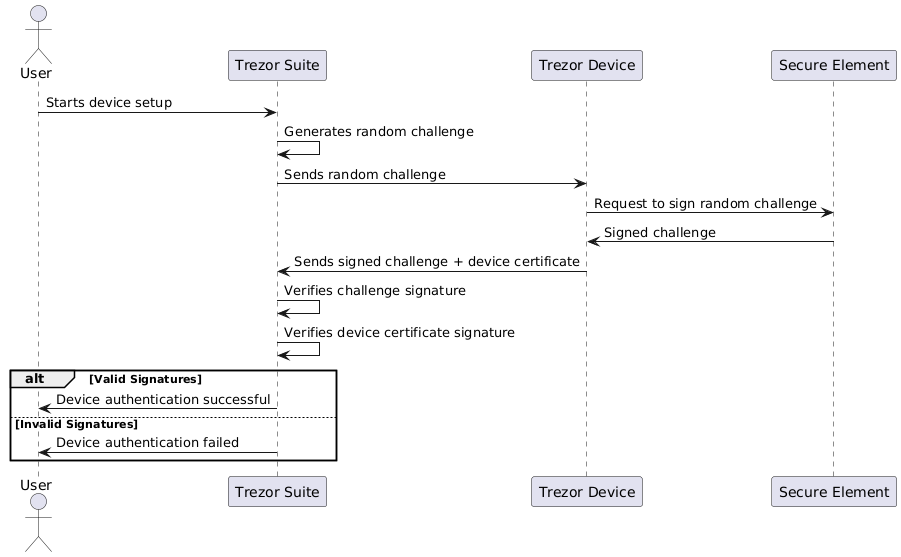

Trezor Safe device authentication check
The Secure Element plays an important role in verifying the authenticity of your device.
- Trezor Suite generates a random challenge which is then sent to the Trezor.
- In response, the Trezor uses the Secure Element to sign this random challenge and returns both the signature and the device certificate.
- To confirm the authenticity of the device, Trezor Suite verifies the signatures of the challenge and the signature on the certificate.
During the manufacturing process of the Trezor Safe hardware wallets, a unique certificate is issued to the new device before it leaves the production line. This certificate is stored in the Secure Element.
Reference: Trezor - Trezor Safe device authentication check

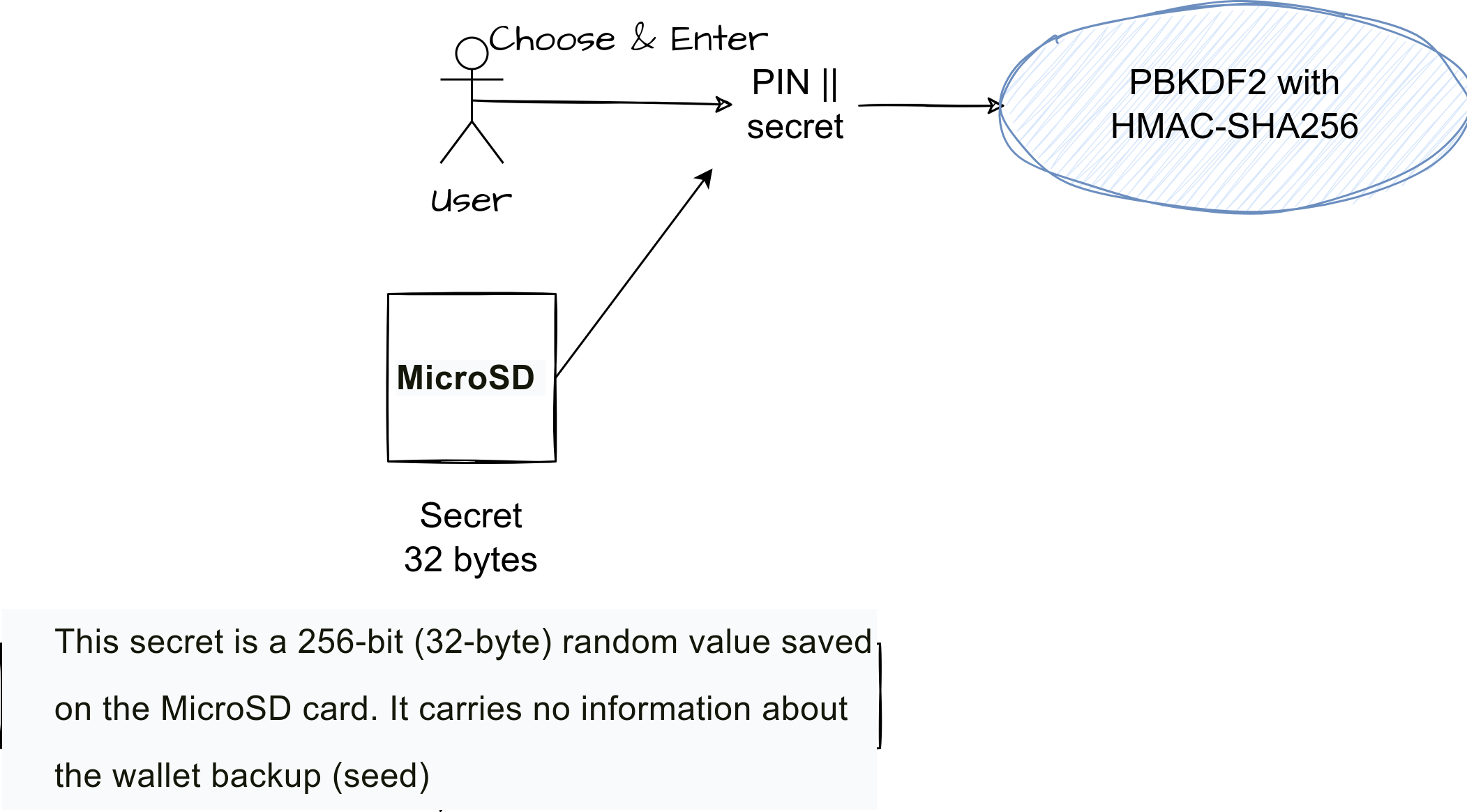

Encrypt PIN with MicroSD card
Trezor allows also to encrypt your PIN using a microSD card for the Trezor Model T and Trezor Safe 5.
This provides extra protection against physical attacks.
When enabled, a randomly-generated secret is stored on the microSD card.
When checking your PIN or using your PIN to unlock your Trezor, this secret is combined with the PIN to decrypt data stored on the device.
As a result, the device gets ‘bound’ to the microSD card and cannot be unlocked without it until you intentionally disable the feature or factory-reset your device.
Reference: Trezor - Encrypt PIN with MicroSD card

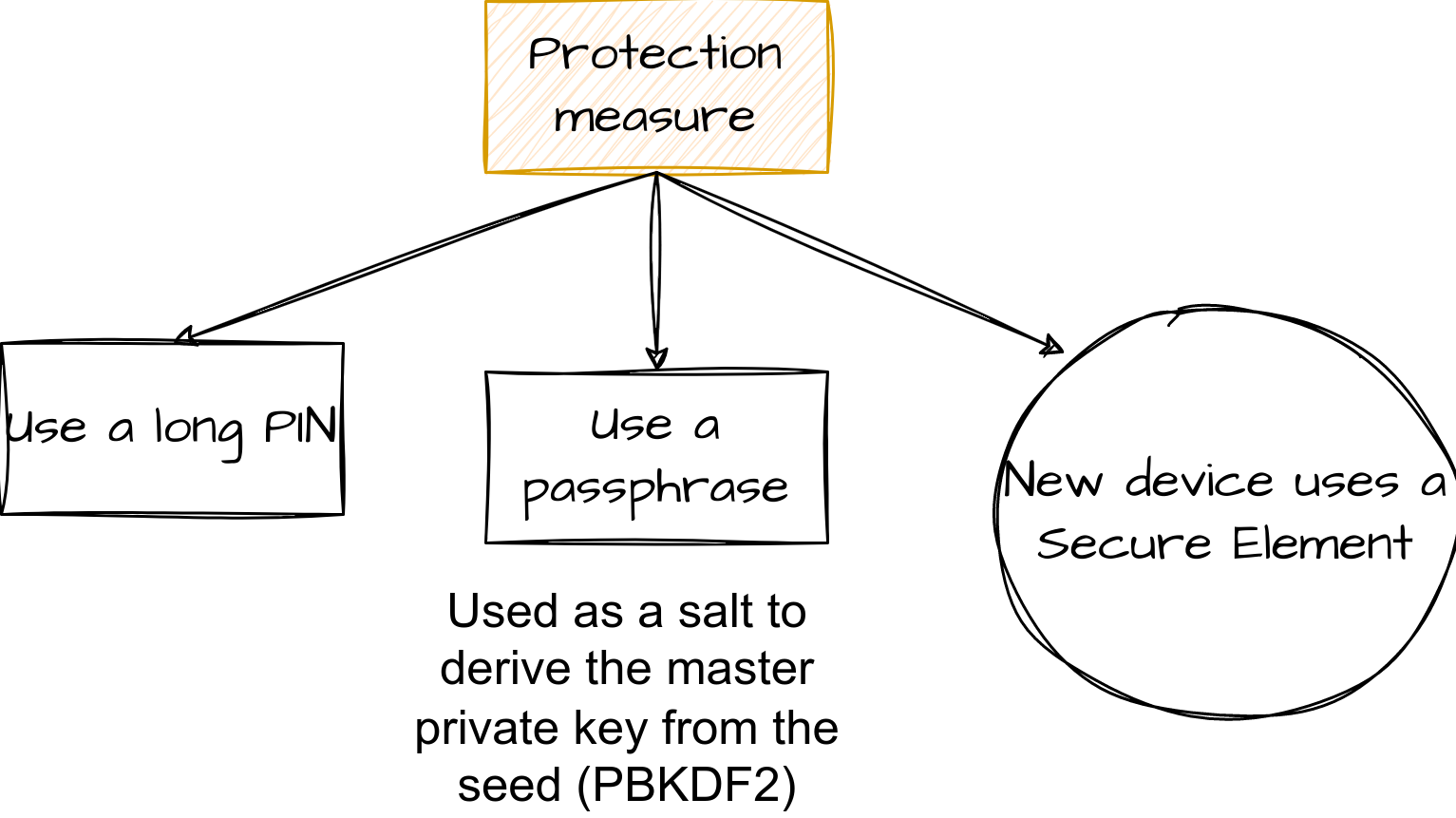

Microcontroller and voltage glitching
Trezor Safe 3 uses also a microntroller from the familly STM32F429. This chip’s family is known to be vulnerable to voltage glitching. This is not the case for the Trezor Safe 5, which uses a more recent microcontroller STM32U5, for which no fault injection attack has been made public at the time of this writing.
Reference: Ledger - WHY SECURE ELEMENTS MAKE A CRUCIAL DIFFERENCE TO HARDWARE WALLET SECURITY
Use Trezor as 2FA device
It is also possible to use Trezor as a 2FA device.
U2F
Trezor supports U2F, an open authentication standard that strengthens and simplifies two-factor authentication (2FA). When logging into a website, the user generally authenticates himself by providing a username and a password. With Trezor and U2F, the user will have to additionally confirm the login with a click of the button on the Trezor device.
More information here Trezor - What is u2F
FIDO2
Some Trezor wallets can also be used to perform authentication with FIDO2. More information here Trezor - What is FIDO2

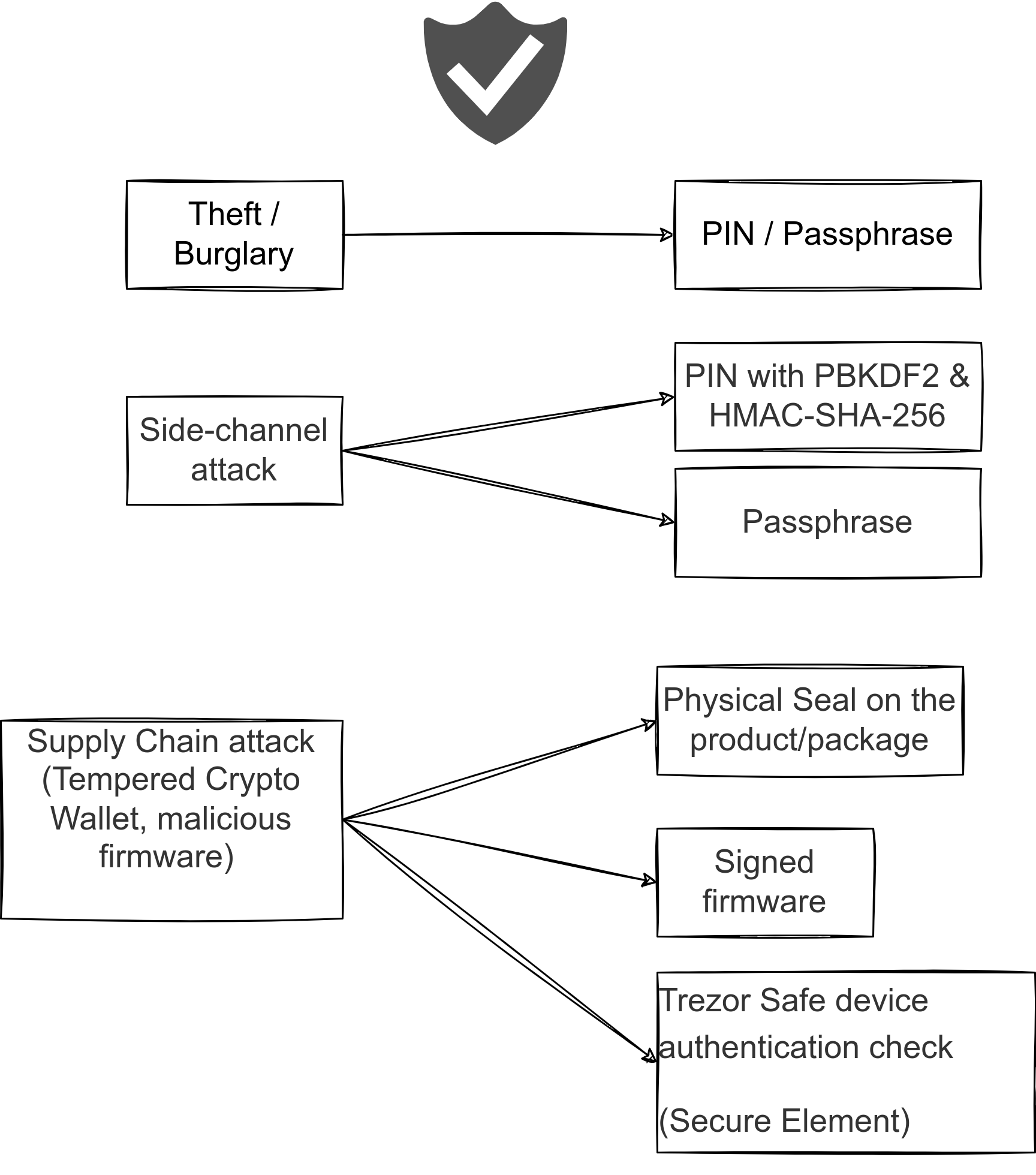

Additional Security Considerations
Physical Security
While Trezor hardware wallets are robust, they are not impervious to physical attacks if a device falls into the wrong hands.
However, a Trezor wallet is protected by the PIN, and the passphrase if set.
The passphrase feature is especially useful because it creates an additional level of obfuscation, meaning even if someone manages to steal your device and get your PIN, they cannot access your funds without the passphrase.
Moreover, this passphrase is not stored inside the device, therefore if someone manages to break physically your Trezor Wallet (e.g. with a side-channel attack), they can not access the funds if they don’t manage to find the passphrase.
Supply Chain Attacks
To address concerns over possible supply chain attacks (where the hardware is tampered with before it reaches the user), Trezor implements several measures:
- Seal on the device or the package. Users are encouraged to inspect the device for any signs of tampering, such as broken seals (Tamper-evident packaging).
- A legitimate device will always arrive without firmware installed. The bootloader verifies that the firmware you install has been signed by SatoshiLabs (=secure boot).
- Thus, users can verify the authenticity of the firmware when initializing the device.
- Since 2022, individual chips are now glued onto the board
Trezor Safe device authentication check
As indicated in the previous paragraph dedicated to the Secure Element. Trezor Sage 3 and Safe 5 uses it to help to verify the authenticity of the Trezor Safe 3 or Safe 5, and makes it significantly more difficult for it to be tampered with.
Reference: Trezor - Trezor Safe device authentication check
Privacy
The Trezor Suite App offers several features to protect your provicy
- Tor to enable anonymous communication
- A discreet mode to hide your sensitive information on the screen
- For Bitcoin, a Coin Control feature to make a manual coin selection for an outgoing transaction, rather than relying on your wallet making an automatic selection for you. It is useful again dust attack where an attacker send you small amount of Satoshis to trace your transactions and link addresses together in case of a consolidation.
Past attack and vulnerabilities
Supply Chain Attack
Fake Trezor sold on the Russia Market through a popular website: Modification performed by the attacker(s):
- They install a malicious firmware in the device
- They removed the bootloader-checks to avoid detection at startup.
- They replace the randomly generated seed phrase with a pre-generated seed phrase saved in the malicious firmware.
- This is the reason why chips are now glued on the board to make modifications more complicated:
Reference: Kaspersky.com - Case study: fake hardware cryptowallet, Trezor - Stay safe shopping for hardware wallets
Side-channel attack
In the past, several side-channel attacks have been performed on Trezor wallets, notably:
-
Wallet.fail (2018)
-
Ledger (2018-2019)
Ledger Donjon Team
Ledger identified several side-channel attacks on the Trezor Model One.
One concerned the PIN verification allowing an attacker with a stolen Trezor One to retrieve the correct value of the PIN within a few minutes.

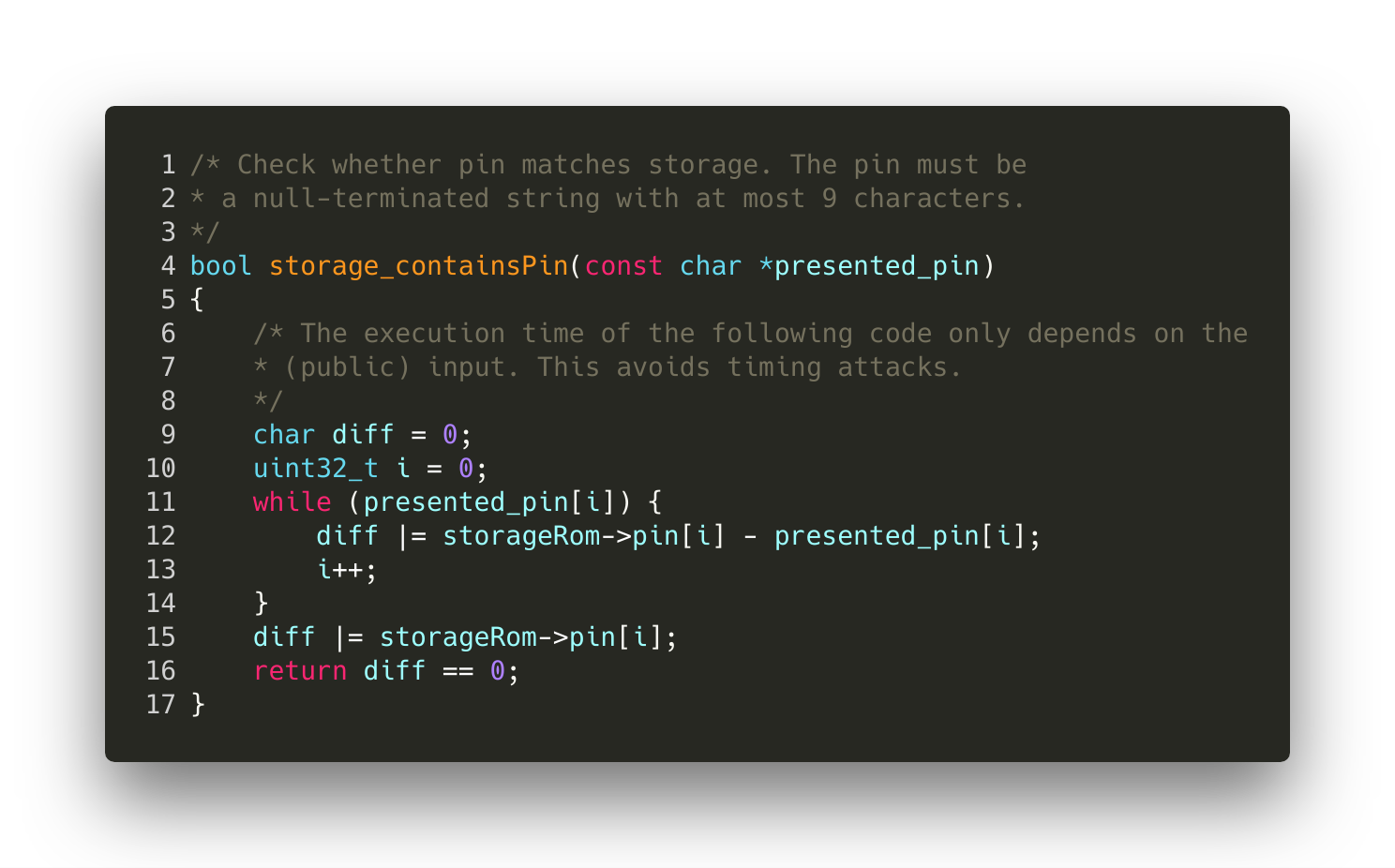

In the first versions of the Trezor Model One, the Pin verification was done like this:
As indicated by Ledger:
The subtraction operation storageRom->pin[i] — presented_pin[i] contains
- The secret PIN value
- The user input value
Thus, a side-channel attack is possible to induce differentiability. The Ledger Donjon Team measured the power consumption of the device, then they used Machine Learning to determine the most likely candidate for storageRom->pin.
These vulnerabilities have led Satoshi Labs, the company behind the wallet, to propose a more robust version to encrypt the data stored in the device. This new version is the current version shown with the Data encryption Diagram above.
Kraken Security Labs
Despite this new architecture, Kraken in 2020, managed to perform a fault injection attack on the device to extract the entire flash-contents of the microcontroller’s flash memory
-
Since Trezor firmware uses encrypted storage, they developed a script to crack the PIN of the dumped device.
- The script was able to brute force any 4-digit pin in under two minutes.
- As a reminder, a PIN brute-force is not directly possible directly on the device, because the storage is automatically wiped after 16 unsuccessful attempts.
- To protect against this, Satoshi Labs answered, also in 2020, in a article that the best solution is to set a long PIN (against the brute-force attack) and set a passphrase since the passphrase is not set in the device.
Reference:
Kraken Identifies Critical Flaw in Trezor Hardware Wallets, Trezor - Our Response to the Read Protection Downgrade Attack
Conclusion
Trezor wallets are designed with a robust set of security features with a strong use of cryptography (PBKDF2 with HMAC-SHA256, ChaCha20-Poly1305) to protect sensitive information such as the seed phrase against several different attacks.
The fact that the firmware is open source is also a strong point in their favor.
All these features make them one of the most trusted hardware wallets in the cryptocurrency space.
References
- Official website trezor.io
- Supply-chain attack
- Side-channel attack:
- Firmware integrity
- ChatGPT
- With the input “Write me an article about the security of the crypto wallet Trezor, the protection put in place, the difference between the models and the algorithm cryptographic used”
- PlantUML diagram have been also partially made with the help of ChatGPT
